Media converter EMC-0201G-SC-WA-S4

powerEthernetsingle-mode

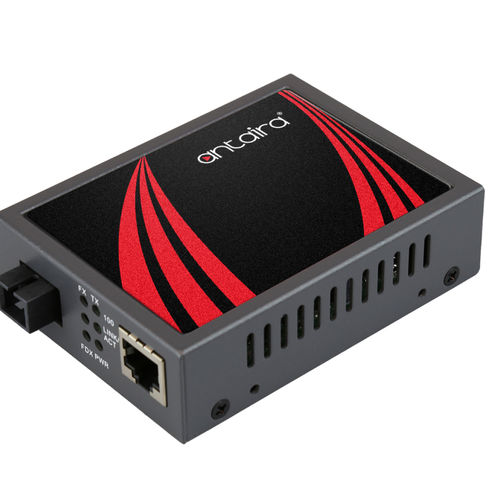

Antaira Technologies EMC-0201G-SC-WA-S4 is a compact single-mode gigabit fiber to 10/100/1000 Ethernet WDM media converter. The EMC-0201G-SC-WA-S4 is housed in a industrial metal case and conforms to the FCC emission standards. The EMC-0201G-SC-WA-S4 features a standard SC single strand fiber connector as well as the copper STP-RJ45 Ethernet connector. The EMC-0201G-SC-WA-S4 is fully compliant with the IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab, 1000Baes-T. The EMC-0201G-SC-WA-S4 features LEDs that provide indicators for Power, TP Link/ACT and Fiber Link/ACT. The EMC-0201G-SC-WA-S4 is a industrial WDM media converter that operates on single mode, single strand fiber TX:1310nm RX:1550nm capable of transmission up to 40 kilometers. WDM media converters are a great solution to double the bandwidth of a existing fiber network. Features Complies with IEEE 802.3z 1000BaseX Supports Jumbo Frame (9K bytes) Store-and-Forward Switching Mechanism Auto-Crossover for MDI/MDIX in TP Port Auto-Negotiation in TP Port Supports Flow Control Supports Link Alarm Supports Auto & Force Mode Configuration 5-Year Warranty
