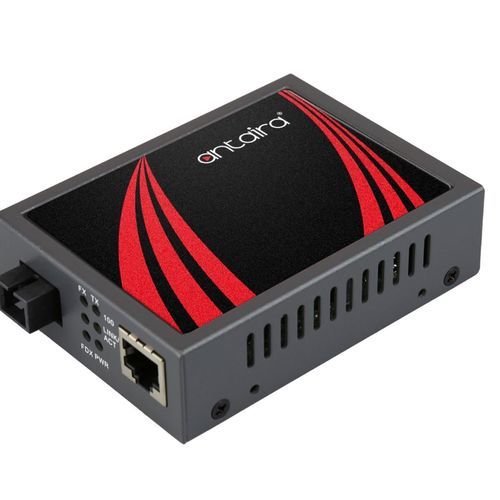

Media converter EMC-0201G-SC-WA-M

temperaturepowerEthernet

IntroductionAntaira Technologies EMC-0201G-SC-WA-M is a compact multi-mode gigabit fiber to 10/100/1000 Ethernet WDM media converter. The EMC-0201G-SC-WA-M is housed in an industrial metal case and conforms to FCC emission standards. It features a standard SC single strand fiber connector as well as a copper STP-RJ45 Ethernet connector. Fully compliant with IEEE 802.3z 1000Base-SX/LX and IEEE 802.3ab 1000Base-T. The device features LEDs for Power, TP Link/ACT, and Fiber Link/ACT. It operates on multi-mode, single strand fiber TX:1310nm RX:1550nm, capable of transmission up to 550 meters. WDM media converters are a great solution to double the bandwidth of an existing fiber network.FeaturesComplies with IEEE 802.3/u/ab 10/100/1000BaseTComplies with IEEE 802.3z 1000BaseXSupports Jumbo Frame (9K bytes)Store-and-Forward Switching MechanismAuto-Crossover for MDI/MDIX in TP PortAuto-Negotiation in TP PortSupports Flow ControlSupports Link AlarmSupports Auto & Force Mode Configuration5-Year WarrantyPackage ContentEMC-0201G-SC-WA-MExternal Power AdapterOptional AccessoriesFCU-BK: Wall-Mount Brackets For FCU Modules (1 Pair)FCU-DIN-RAIL-KIT: Din-Rail Kit for FCU- ModulesFCU-RACK16-AC: 16-Slot Unmanaged Universal Media Converter Rack, w/1 AC Power SupplyFCU-RACK16S: 16-Slot Unmanaged Universal Media Converter Rack, Compact Size, w/1 AC Power SupplyCBF-SC01SC-MS: SC To SC 1 Meter Multi-Mode Simplex CableTechnical SpecificationsIEEE Standards: IEEE 802.3z 1000BaseX, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseTProcessing Type: Store and ForwardProtocol: CSMA/CDFlow Control: IEEE 802.3x Flow ControlMAC Table Size: 2KJumbo Frame: 9K bytesMemory Buffer: 64K bytesTransfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet PortEthernet Port Count: 1 port10/100/1000BaseTX: 1 × RJ45 PortFiber Port Count: 1 port1000BaseX: 1 × SC PortWavelength: TX: 1310nm - RX: 1550nmTransmission Distance: 550 mTx Power: -10 ~ -3.0 dBmRx Sensitivity: -18.0 dBmLink Budget: 8.0 dBLED Indicator: Power, FDX, ACT, TP Link, Fiber LinkHousing: MetalMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches)Weight: 0.6 kgPower Connection: External power supply / DC JackInput Voltage: 5V DC, 1.5ASystem Power Consumption: 6 WattsOperating Temperature: 0° to 50° C (32° to 122° F)Storage Temperature: -20° to 60° C (-4° to 140° F)Ambient Relative Humidity: 5% to 90% non-condensingCertifications: FCC, CEEMI: FCC Class A, CEWarranty: 5 years
