Speed converter IMC-C1000-WB-S1-T

mediatemperaturepower

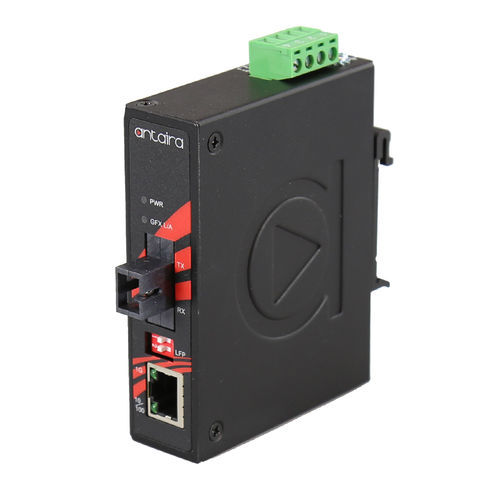

Product OverviewAntaira Technologies’ IMC-C1000-WB-S1-T series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are models that support Multimode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities.The IMC-C1000-WB-S1-T series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides an operating temperature range for EOT: -40°C to 80°C.Features1*10/100/1000Tx Gigabit Ethernet1*1000x SC/ST Connector (Multi / Single-Mode)RJ45 Port Support Auto MDI / MDI-X FunctionAuto Negotiation Speed, Half / Full DuplexStore-and-Forward Switching ArchitectureBuilt-in Link Fault Pass Through (LFP)Built-in Far End Fault (FEF)Jumbo Frame Support: 10k bytesWide-Range Redundant Power DesignRedundant Power Input: 12~48VDCPower Polarity Reverse ProtectionOverload Current ProtectionDIN-Rail or Wall MountableIP30 Protection5-Year WarrantyPackage ContentDC Cable - 18 AWG with DC jack 5.5x2.1mmIMC-C1000-WB-S1-TWall Mounting Bracket Set with ScrewsOptional AccessoriesDIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U HeightTechnical SpecificationsTechnologyIEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit FiberProcessing Type: Store and ForwardProtocol: CSMA/CDFlow Control: IEEE 802.3x back pressure flow controlPerformanceMAC Table Size: 8KJumbo Frame: 10K bytesMemory Buffer: 1MbitTransfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet PortEthernet InterfaceEthernet Port Count: 1 port10/100/1000 BASE-T(X): 1 × RJ45 Port w/10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connectionFiber InterfaceFiber Port Count: 1 port1000 BASE-X Fiber: 1 ×1000 SC type connector(WDM-B), Single-mode: 9/125um or 10/125umWavelength: TX: 1550nm - RX: 1310nmTransmission Distance: 10 kmLink Loss Forward: LFP( Link Fault Pass Through)Other InterfaceDIP Switch: DIP-Switch 1(ON) & DIP Switch(OFF): LFP (Link Fault Pass) Enable; DIP-Switch 1(OFF) & DIP Switch(OFF): LFP (Link Fault Pass) DisableLED Indicator: Power (PWR): On / Off; Fiber Port (GFX): Link / Act; Ethernet Port: Link / ActMechanical CharacteristicsHousing: Metal, IP30 protectionMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 26 × 95 × 75 mmWeight: Unit: 0.595 lb; Shipping: 0.86 lbPower RequirementsPower Connection: Removable 4-contact terminal blockInput Voltage: 12V–48V DC, Redundant InputPower Redundancy: YesSystem Power Consumption: 2.2 WattsOverload Current Protection: PresentReverse Polarity Protection: PresentEnvironmental LimitsOperating Temperature: -40° to 80° C (-40° to 176° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingRegulatory ApprovalsCertifications: FCC, CEUL 61010-1 / UL 61010-2-201: ✔EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class AEMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6Green: RoHS CompliantWarranty: 5 years
