Protocol converter EMC-0201G-SC-M

wavelengthgigabit mediatemperature

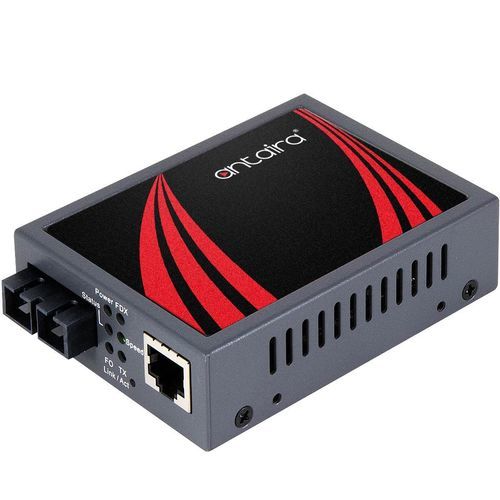

Product Overview Antaira Technologies EMC-0201G-SC-M is a compact, multi-mode Gigabit Ethernet converter. The EMC-0201G-SC-M will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The EMC-0201G-SC-M features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3z and 802.3u Fast Ethernet standards. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The EMC-0201G-SC-M gigabit media converter will use multi mode 850NM fiber with a SC connector and is capable of communication of up to 550 meters. Features - Complies with IEEE 802.3/u/ab 10/100/1000BaseT - Complies with IEEE 802.3z 1000BaseX - Supports Jumbo Frame (9K bytes) - Store-and-Forward Switching Mechanism - Auto-Crossover for MDI/MDIX in TP Port - Auto-Negotiation in TP Port - Supports Flow Control - Supports Link Alarm - Supports Auto & Force Mode Configuration - 5-Year Warranty Package Content - EMC-0201G-SC-M - External Power Adapter Optional Accessories - FCU-BK: Wall-Mount Brackets For FCU Modules (1 Pair) - FCU-DIN-RAIL-KIT: Din-Rail Kit for FCU- Modules - FCU-RACK16-AC: 16-Slot Unmanaged Universal Media Converter Rack, w/1 AC Power Supply - FCU-RACK16S: 16-Slot Unmanaged Universal Media Converter Rack, Compact Size, w/1 AC Power Supply - CBF-SC01SC-MD: SC To SC 1 Meter Multi-Mode Duplex Cable - AD-SCM-STF-M: SC Male To ST Female Adapter Multi-Mode Technical Specifications - IEEE Standards: IEEE 802.3z 1000BaseX, IEEE 802.3 10BaseT, IEEE 802.3u 100BaseTX, IEEE 802.3ab 1000BaseT - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x Flow Control - MAC Table Size: 2K - Jumbo Frame: 9K bytes - Memory Buffer: 64K bytes - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Ethernet Port Count: 1 port - 10/100/1000BaseTX: 1 × RJ45 Port - Fiber Port Count: 1 port - 1000BaseX: 1 × SC Port - Wavelength: 850nm - Transmission Distance: 550m - Tx Power: -9.5 ~ -4.0 dBm - Rx Sensitivity: -18.0 dBm - Link Budget: 8.5 dB - LED Indicator: Power, FDX, ACT, TP Link, Fiber Link - Housing: Metal - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 71 x 94 x 26 mm (2.80 x 3.70 x 1.02 inches) - Weight: 0.6 kg - Power Connection: External power supply / DC Jack - Input Voltage: 5V DC, 1.5A - System Power Consumption: 6 Watts - Operating Temperature: 0° to 50° C (32° to 122° F) - Storage Temperature: -20° to 60° C (-4° to 140° F) - Ambient Relative Humidity: 5% to 90% non-condensing - Certifications: FCC, CE - EMI: FCC Class A, CE - Warranty: 5 years
