Protocol converter IMC-C1000-M

wavelengthspeedmedia

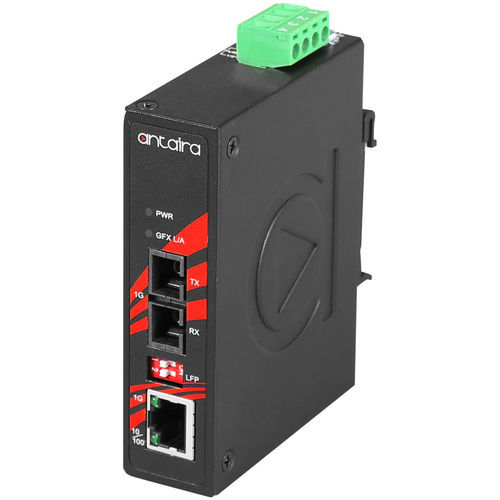

Product Overview Antaira Technologies’ IMC-C1000-M series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on the model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. The IMC-C1000-M series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides operating temperature range models in STD: -10°C to 70°C. Features - 1*10/100/1000Tx Gigabit Ethernet - 1*1000x SC/ST Connector (Multi / Single-Mode) - RJ45 Port Support Auto MDI / MDI-X Function - Auto Negotiation Speed, Half / Full Duplex - Store-and-Forward Switching Architecture - Built-in Link Fault Pass Through (LFP) - Built-in Far End Fault (FEF) - Jumbo Frame Support: 10k bytes - Wide-Range Redundant Power Design - Redundant Power Input: 12~48VDC - Power Polarity Reverse Protection - Overload Current Protection - DIN-Rail or Wall Mountable - IP30 Protection - 5-Year Warranty Package Content - DC Cable - 18 AWG with DC jack 5.5x2.1mm - IMC-C1000-M - Wall Mounting Bracket Set with Screws Optional Accessories - DIN-RACK-2U: Din-Rail to 19" Rack Mount Adapter for all Din-Rail Mountable Products, 2U Height Technical Specifications Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control Performance - MAC Table Size: 8K - Jumbo Frame: 10K bytes - Memory Buffer: 1Mbit - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port Ethernet Interface - Ethernet Port Count: 1 port - 10/100/1000 BASE-T(X): 1 × RJ45 Port w/10/100/1000T(X), auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection Fiber Interface - Fiber Port Count: 1 port - 1000 BASE-X Fiber: 1 ×1000 SC type connector - Multi-mode: 50/125um or 62.5/125um - Wavelength: 850nm - Transmission Distance: 550 m - Link Loss Forward: LFP (Link Fault Pass Through) Other Interface - DIP Switch: DIP-Switch 1(ON) & DIP Switch(OFF): LFP (Link Fault Pass) Enable; DIP-Switch 1(OFF) & DIP Switch(OFF): LFP (Link Fault Pass) Disable - LED Indicator: Power (PWR): On / Off; Fiber Port (GFX): Link / Act; Ethernet Port: Link / Act Mechanical Characteristics - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 26 × 95 × 75 mm - Weight: Unit: 0.595 lb; Shipping: 0.86 lb Power Requirements - Power Connection: Removable 4-contact terminal block - Input Voltage: 12V–48V DC, Redundant Input - Power Redundancy: Yes - System Power Consumption: 2.2 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present Environmental Limits - Operating Temperature: -10° to 70° C (14° to 158° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing Regulatory Approvals - Certifications: FCC, CE - UL 61010-1 / UL 61010-2-201: ✔ - EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A - EMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
