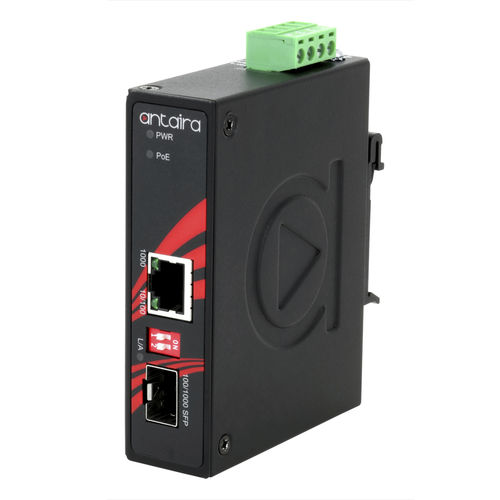

Speed converter IMP-C1000-SFP

mediatemperaturepower

Antaira Technologies’ IMP-C1000-SFP series is a compact IP-30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port that support IEEE 802.3at high power PoE that can supply up to 30 watts, and a dual rate 100/1000 SFP slot. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments. The IMP-C1000-SFP series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and there are two operating temperature range models in STD: -10°C to 70°C and EOT: -40°C to 80°C. Features Compact Industrial Grade Design UTP to Fiber Media Converter Embedded 1 Port PoE Injector Function Auto Negotiation Speed, Half/Full Duplex Store-and-Forward Switching Architecture Built-in Link Fault Pass Through (LFP) & Far End Fault (FEF) Jumbo Frame Support: 10k bytes Wide-Range Redundant Power Design Redundant Power Input: 48~55VDC Power Polarity Reverse Protection Overload Current Protection 5-Year Warranty
