Protocol converter IMP-C1000-SFP-bt-24-T

wavelengthspeedmedia

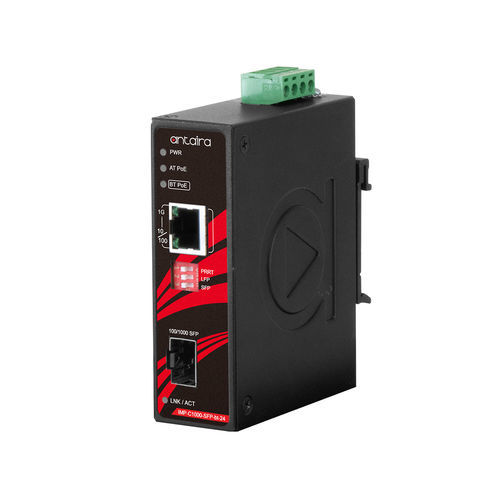

Product Overview Compact Industrial Gigabit IEEE 802.3bt Ethernet-to-Fiber Media Converter, 1*10/100/1000T RJ45 (90W/Port) to 1*100/1000 SFP Slot; 12~55VDC Power Input, EOT: -40° to 75°C. Introduction Antaira Technologies’ IMP-C1000-SFP-bt-24 series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000T Ethernet port that supports IEEE 802.3bt high power PoE supplying up to 90 watts, and has a dual rate 100/1000 SFP slot. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments. The IMP-C1000-SFP-bt-24 series has a built-in PD Remote Reset Technology function (PRRT). The PRRT function allows user to remotely reboot the media converter and reset the connected powered device (PD). The unit also has 12~55VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and there are two operating temperature range models in STD: -10°C to 65°C and EOT: -40°C to 75°C. Features - 1-Port 10/100/1000T RJ45 with IEEE 802.3bt Compliant PoE - 1-Port 100/1000X SFP Slot - Link Fault Pass-Through (LFP) Function Support - PD Remote Reset Technology (PRRT) Function Support - IP30 Rugged Metal Case Design - Power Input: 12~55VDC in 4-Pin Terminal Block - DIN-Rail or Wall Mountable - Operating Temperature Range: EOT: -40° to 75°C - 5-Year Warranty Package Content - 1 - Quick Installation Guide - 1 - IMP-C1000-SFP-bt-24-T - 1 - Wall mounting bracket set with screws - 1 - DC cable - 18 AWG & DC jack 5.5x2.1mm Optional Accessories - SFP-100M-T: 100 Mbps Fiber SFP Transceiver, Multi-Mode 2km / LC / 1310nm, -40º~85ºC - SFP-100S20-T: 100 Mbps Fiber SFP Transceiver, Single-Mode 20km / LC / 1310nm, -40º~85ºC - SFP-M-T: 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºC - SFP-S10-T: 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºC Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z 1000BASE-X Gigabit Fiber, IEEE 802.3af/at/bt Power over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x flow control, back pressure flow control - MAC Table Size: 8K - Jumbo Frame: 10K bytes - Memory Buffer: 1Mbit - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Ethernet Port Count: 1 port - 10/100/1000 BASE-T(X): 1 × RJ45 Port w/10/100/1000T with IEEE 802.3bt PoE, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection - PoE Port: 1 port (90W/port) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - Fiber Port Count: 1 port - 100/1000 BASE-(F)X SFP: 1 port - Wavelength: Refers to SFP modules - Transmission Distance: Depends on SFP modules - Link Loss Forward: LFP (Link Fault Pass Through) - DIP Switch: DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/Disable; DIP Switch 2: LFP (Link Fault Pass) Enable/Disable; DIP Switch 3: 100Mbps/1000Mbps - LED Indicator: Power Status LED, IEEE802.3af/at PoE Enabled LED, IEEE 802.3bt PoE Enabled LED; Ethernet Ports: On-Link/Flash-data transmitting; SFP: Link/Active - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 30 × 95 × 75 mm - Weight: Unit: 0.74 lb; Shipping: 0.97 lb - Power Connection: Removable 4-contact terminal block - Input Voltage: 12V–55V DC, Redundant Input - Power Redundancy: Yes - System Power Consumption: 3 Watts - Max. PoE Power Budget: Max. 90 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -40° to 75° C (-40° to 167° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE - UL 61010-1 / UL 61010-2-201: ✔ - EMI: FCC Part 15 Subpart B Class A, CE EN55032/EN 61000-6-4 Class A - EMS: CE EN55035/EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
