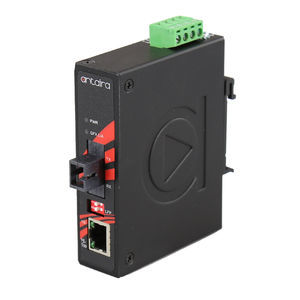

Speed converter IMP-C100-ST-S3-T

mediatemperaturepressure

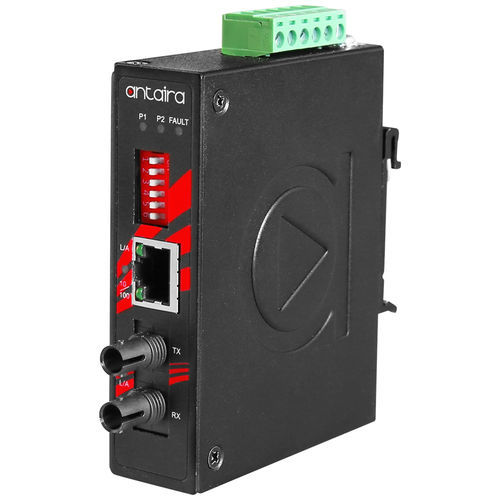

Product OverviewAntaira Technologies’ IMP-C100-ST-S3-T is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE (up to 30 watts), and a fixed fiber interface supporting ST connectors.This model supports Single-Mode and is designed for industrial applications requiring fiber optic distance extension while using minimal space.It has built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) functions, with 48~55VDC redundant power inputs, reverse polarity, and overload current protection. The model supports DIN-Rail and wall mountable orientations and provides an operating temperature range of -40° ~ 80°C.Features1× 10/100TX Fast Ethernet with IEEE 802.3at Compliant PoE+1× 100FX ST Connector (Single-Mode)RJ45 Port supports Auto MDI / MDI-X FunctionAuto Negotiation Speed, Half / Full DuplexStore-and-Forward Switching ArchitectureBuilt-in Link Fault Pass Through (LFP)Built-in Far End Fault (FEF)Wide-Range Redundant Power DesignRedundant Power Input: 48~55VDCPower Polarity Reverse ProtectionOverload Current ProtectionDIN-Rail or Wall MountableIP30 Protection5-Year WarrantyPackage Content1 - DC cable –18 AWG & DC jack 5.5x2.1mm1 - IMP-C100-ST-S3-T1 - Quick Installation Guide1 - Set of wall mounting brackets and screwsTechnical SpecificationsIEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af/at Power Over EthernetProcessing Type: Store and ForwardProtocol: CSMA/CDFlow Control: IEEE 802.3x back pressure flow controlMemory Buffer: 128 kbitsTransfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet PortEthernet Port Count: 1 port10/100 BASE-T(X): 1 × RJ45 Port w/10/100TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connectionPoE Port: 1 port (30W/port)PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)Fiber Port Count: 1 port100 BASE-FX Fiber: 1 × 100FX ST type connector, Single-mode: 9/125um or 10/125umWavelength: 1310nmTransmission Distance: 30 kmLink Loss Forward: LFP (Link Fault Pass Through)DIP Switch: DIP-Switch 1: LFP Enable/Disable; DIP-Switch 2: Converter Mode/Switch Mode; DIP-Switch 3: Fiber Port Half-Duplex Mode; DIP-Switch 4: Copper Port Auto-negotiation Disable/Enable; DIP-Switch 5: Copper Port 10Mbps/100Mbps; DIP-Switch 6: Copper Port Half-Duplex ModeLED Indicator: Power 1, Power 2, Fault: On/Off; Fiber Port: Link/Act; Ethernet Port: Link/Act; PoE: On-connected to PD devicesHousing: Metal, IP30 protectionMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 26 × 95 × 75 mmWeight: Unit: 0.661 lb; Shipping: 0.903 lbPower Connection: Removable 6-contact terminal blockInput Voltage: 48V–55V DC, Redundant InputPower Redundancy: YesRelay Output: 24V DC, 1A resistiveSystem Power Consumption: 2.4 WattsMax. PoE Power Budget: Max. 30 WattsOverload Current Protection: PresentReverse Polarity Protection: PresentOperating Temperature: -40° to 80° C (-40° to 176° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingCertifications: FCC, CE, UL 61010-1 / UL 61010-2-201EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class AEMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6Green: RoHS CompliantWarranty: 5 years
