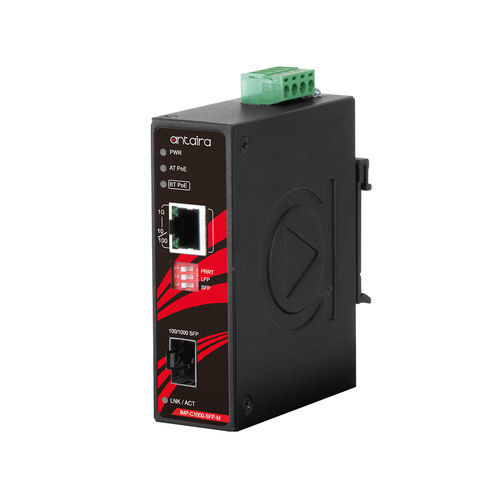

Speed converter IMP-C1000-SFP-bt-T

mediatemperaturepower

Product OverviewAntaira Technologies’ IMP-C1000-SFP-bt series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000T Ethernet port that supports IEEE 802.3bt high power PoE supplying up to 90 watts, and has a dual rate 100/1000 SFP slot. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. This small form factor is ideal for saving space in outdoor applications such as factory automation, security, ITS transportation, power/utility, water wastewater treatment plants, and any other extreme ambient weather environments.The IMP-C1000-SFP-bt series has a built-in PD Remote Reset Technology function (PRRT). The PRRT function allows user to remotely reboot the media converter and reset the connected powered device (PD). The unit also has 48~55VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and there are two operating temperature range models in STD: -10°C to 65°C and EOT: -40°C to 75°C.Features1-Port 10/100/1000T RJ45 with IEEE 802.3bt Compliant PoE1-Port 100/1000X SFP SlotLink Fault Pass-Through (LFP) Function SupportOperating Temperature Range: EOT: -40° to 75°C5-Year WarrantyPackage Content1 - Quick Installation Guide1 - IMP-C1000-SFP-bt-T1 - Wall mounting bracket set with screws1 - DC cable - 18 AWG & DC jack 5.5x2.1mmOptional AccessoriesSFP-100M-T: 100 Mbps Fiber SFP Transceiver, Multi-Mode 2km / LC / 1310nm, -40º~85ºCSFP-100S20-T: 100 Mbps Fiber SFP Transceiver, Single-Mode 20km / LC / 1310nm, -40º~85ºCSFP-M-T: 1 Gigabit Fiber SFP Transceiver, Multi Mode 550M / LC / 850nm, -40º~85ºCSFP-S10-T: 1 Gigabit Fiber SFP Transceiver, Single-Mode 10km / LC / 1310nm, -40º~85ºCTechnical SpecificationsIEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3ab 1000BASE-T Gigabit Ethernet, IEEE 802.3z 1000BASE-X Gigabit Fiber, IEEE 802.3af/at/bt Power over EthernetProcessing Type: Store and ForwardProtocol: CSMA/CDFlow Control: IEEE 802.3x flow control, back pressure flow controlMAC Table Size: 8KJumbo Frame: 10K bytesMemory Buffer: 1MbitTransfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet PortEthernet Port Count: 1 port10/100/1000 BASE-T(X): 1 × RJ45 Port w/10/100/1000T with IEEE 802.3bt PoE, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connectionPoE Port: 1 port (90W/port)PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A)Fiber Port Count: 1 port100/1000 BASE-(F)X SFP: 1 portWavelength: Refers to SFP modulesTransmission Distance: Depends on SFP modulesLink Loss Forward: LFP (Link Fault Pass Through)DIP Switch: DIP Switch 1: PD Remote Reset Technology (PRRT) Enable/Disable; DIP Switch 2: LFP (Link Fault Pass) Enable/Disable; DIP Switch 3: 100Mbps/1000MbpsLED Indicator: Power Status LED, IEEE802.3af/at PoE Enabled LED, IEEE 802.3bt PoE Enabled LED, Ethernet Ports: On-Link/Flash-data transmitting, SFP: Link/ActiveHousing: Metal, IP30 protectionMounting: DIN-Rail mount, Wall mount (Optional)Dimensions (W × H × D): 30 × 95 × 75 mmWeight: Unit: 0.59 lb; Shipping: 0.81 lbPower Connection: Removable 4-contact terminal blockInput Voltage: 48V–55V DC, Redundant InputPower Redundancy: YesSystem Power Consumption: 3 WattsMax. PoE Power Budget: Max. 90 WattsOverload Current Protection: PresentReverse Polarity Protection: PresentOperating Temperature: -40° to 75° C (-40° to 167° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingCertifications: FCC, CEUL 61010-1 / UL 61010-2-201: ✔EMI: FCC Part 15 Subpart B Class A, CE EN55032/EN 61000-6-4 Class AEMS: CE EN55035/EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field)Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6Green: RoHS CompliantWarranty: 5 years
