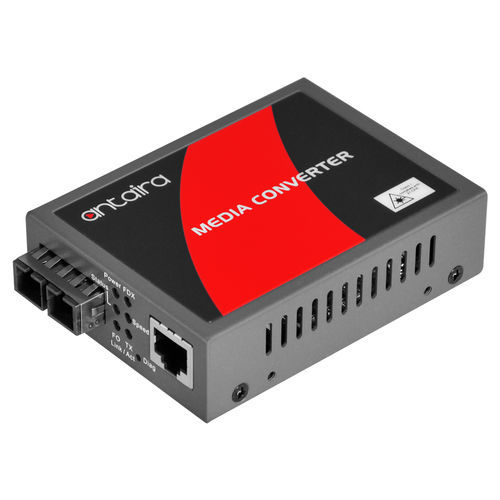

Protocol converter FCN-3112SC-S1

wavelengthspeedgigabit media

Product Overview 10/100/1000TX To 1000LX SNMP Managed Media Converter, Single-Mode 10km, with SC Connector. Introduction Antaira Technologies FCN-3112SC-S1 is a managed, SNMP capable, single-mode Gigabit Ethernet converter. The FCN-3112SC-S1 will take 10/100/1000BaseT copper Ethernet and convert it to 1000BaseX fiber. The FCN-3112SC-S1 features a standard SC fiber connector as well as the STP-RJ45 Ethernet connector. The copper media converter is fully compliant with IEEE 802.3u, 802.3ab & 802.3z standards. The industrial media converter features LED diagnostics for power, activity, link and Full/Half Duplex operations. The FCN-3112SC-S1 gigabit media converter will use single mode 850NM fiber with a SC connector and is capable of communication of up to 10 kilometers. Features - Complies with IEEE 802.3 10BaseT - Complies with IEEE 802.3u 100BaseTX - Complies with IEEE 802.3ab 1000BaseT - Complies with IEEE 802.3z 1000BaseX - Store and Forward Switching Mechanism - Auto-Negotiation in TP port - Auto-Cross over for MDI/MDIX in TP port - Supports Flow Control - Supports Jumbo frame 9K bytes - Supports Link Alarm - Supports Loopback test - Supports Selectable ISP Ethernet Tag Type - Supports Q-in-Q Double Tag configuration - Supports Bandwidth Control - Supports DHCP Client - Supports SNMP/ Web Managed interface - Supports SNMP v1 and v2c - Supports HTTP Firmware Upgrade - Supports Power Down Trap Management Package Content FCN-3112SC-S1 CD Manual/Software Quick Start Guide External Power Adapter Optional Accessories - FCU-BK: Wall-Mount Brackets For FCU Modules (1 Pair) - FCU-DIN-RAIL-KIT: Din-Rail Kit for FCU- Modules - FCU-RACK16-AC: 16-Slot Unmanaged Universal Media Converter Rack, w/1 AC Power Supply - FCU-RACK16S: 16-Slot Unmanaged Universal Media Converter Rack, Compact Size, w/1 AC Power Supply Technical Specifications - Technology - IEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3ab 1000Base-T Gigabit Ethernet, IEEE 802.3z 1000Base-X Gigabit Fiber - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control - Performance - MAC Table Size: 1K - Jumbo Frame: 9K bytes - Memory Buffer: 256 kbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port, 1,488,000pps for Gigabit Ethernet Port - Ethernet Interface - Ethernet Port Count: 1 port - 10/100/1000 BASE-T(X): 1 × RJ45 Port - Fiber Interface - Fiber Port Count: 1 port - 1000 BASE-X Fiber: 1 × SC Port - Wavelength: 1310nm - Transmission Distance: 10 km - Tx Power: -9 ~ -3.0 dBm - Rx Sensitivity: -21.0 dBm - Link Budget: 12.0 dB - Other Interface - LED Indicator: Power, FDX, Status, Speed, FO Link/ACT, TX Link/ACT - Mechanical Characteristics - Housing: Metal - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 71 × 94 × 26 mm (2.80 × 3.70 × 1.02 inches) - Weight: 0.6 kg - Power Requirements - Power Connection: External power supply / DC Jack - Input Voltage: 5V DC, 1.5A - System Power Consumption: 3.4 Watts - Environmental Limits - Operating Temperature: 0° to 50° C (32° to 122° F) - Storage Temperature: -20° to 60° C (-4° to 140° F) - Ambient Relative Humidity: 5% to 90% non-condensing - Regulatory Approvals - Green: RoHS Compliant - Warranty: 5 years
