Ethernet extender LEP-401M-KIT

industrialPoE

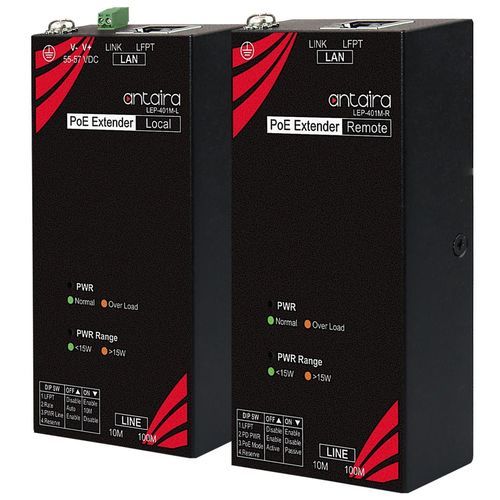

Product OverviewIndustrial IP30 Ethernet Extender, 800 meters 10/100Mbps Ethernet PoE Extender (local and remote end)IntroductionAntaira Technologies’ LEP-401M-KIT contains both LEP-401M-L and LEP-401M-R. The former is a long reach transceiver with one Ethernet port and one PoE Long Reach injector port, and the latter is a long reach receiver with one PoE Long Reach Extender port and one PoE PSE Ethernet port.LEP-401M-KIT is greatly beyond 100 meters distance limitation of RJ45 cable. Up to 800 meters the data and power can be transmitted simultaneously over the UTP cable. This kit is fully compliant with IEEE 802.3, 802.3u, 802.3af/at standards. Operation status can be locally monitored through a set of diagnostic LEDs located in the front and rear panels.FeaturesSupports Standard IEEE 802.3af/at PoE output (remote end)Support MDI/MDI-X Auto-CrossoverSupport Auto-NegotiationDC power supply input (55~57V) (local end)Support Auto & Manual mode configuration for the Ethernet portIP30 ProtectionWall MountableOperating Temperature Range: -40°C to 75°C5-Year WarrantyPackage ContentLEP-401M-L: Two-pin terminal block and wall mounting bracket set with screwsLEP-401M-R: Wall mounting bracket set with screwsTechnical SpecificationsTechnologyIEEE Standards: IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX Fast Ethernet, IEEE 802.3af/at Power over EthernetProcessing Type: Store and ForwardProtocol: CSMA/CDFlow Control: IEEE 802.3x back pressure flow controlPerformanceTransfer Rate: 14,880pps for Ethernet, 148,800pps for Fast EthernetEthernet InterfaceEthernet Port Count: LEP-401M-L: 1 port10/100 BASE-T(X): LEP-401M-L: 1 port for LAN, 1 port for distance extension; LEP-401M-R: 1 port for LAN (PoE/PSE), 1 port for distance extensionPoE Port: LEP-401M-R: 1 port PSE (30W/port)PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6Other InterfaceDIP Switch:LEP-401M-L: DIP 1: LFPT Off/On; DIP 2: Rate Auto/10M; DIP 3: PWR Line Enable/Disable; DIP 4: ReservedLEP-401M-R: DIP 1: LFPT Off/On; DIP 2: PD PWR Enable/Disable; DIP 3: PoE Mode Active/Passive; DIP 4: ReservedLED Indicator:LEP-401M-L: Power (Green); Delivery Power Range 15W (Green); LFPT (Amber); LAN Link active (Green), Line Speed/Link active 10M(Amber), 100M(Green)LEP-401M-R: Power (Green); PoE Power Range for PD 15W (Green); LFPT (Amber); LAN Link active (Green); Line Speed/Link active 10M (Amber), 100M (Green)Mechanical CharacteristicsHousing: Metal, IP30 protectionMounting: Wall mountDimensions (W × H × D): 52 x 25 x 102.5 mmWeight: Unit: 0.38 lb; Shipping: 0.75 lbPower RequirementsPower Connection: 2-contact removable terminal blockInput Voltage: 55~57VDCSystem Power Consumption: LEP-401M-L: Max. PoE Power Budget: 30WSurge Protection: 4KV surge protection for UTPOutput Voltage: PoE 30WEnvironmental LimitsOperating Temperature: -40° to 75° C (-40° to 167° F)Storage Temperature: -40° to 85° C (-40° to 185° F)Ambient Relative Humidity: 5% to 95% non-condensingRegulatory ApprovalsCertifications: FCC, CEEMI: FCC Part 15 Subpart B Class A, CE EN55032, EN55035EMS: EN 61000-4-2:2009, EN IEC 61000-4-3:2020, EN 61000-4-4:2012, EN 61000-4-5:2014/A1:2017, EN 61000-4-6:2014/AC:2015, EN 61000-4-8:2010Green: RoHS CompliantWarranty: 5 years
