Protocol converter IMP-C100-S3-T

wavelengthspeedmedia

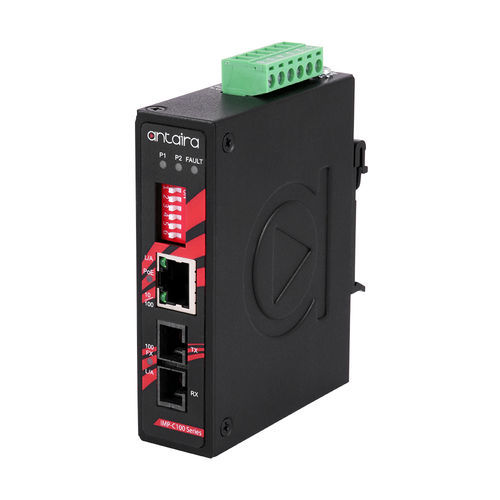

Product Overview Antaira Technologies’ IMP-C100-S3-T is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE (up to 30 watts), and a fixed fiber interface supporting SC connector (Single-Mode 30km). Designed for industrial applications requiring fiber optic distance extension in minimal space. Key Features - 1 x 10/100TX Fast Ethernet with IEEE 802.3at Compliant PoE+ - 1 x 100FX SC Connector (Single-Mode 30km) - RJ45 Port supports Auto MDI / MDI-X Function - Auto Negotiation Speed, Half / Full Duplex - Store-and-Forward Switching Architecture - Built-in Link Fault Pass Through (LFP) - Built-in Far End Fault (FEF) - Wide-Range Redundant Power Design - Redundant Power Input: 48~55VDC - Power Polarity Reverse Protection - Overload Current Protection - DIN-Rail or Wall Mountable - IP30 Protection - 5-Year Warranty Package Content - 1 x DC cable –18 AWG & DC jack 5.5x2.1mm - 1 x IMP-C100-S3-T - 1 x Quick Installation Guide - 1 x Set of wall mounting brackets and screws Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af/at Power Over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control - Memory Buffer: 128 kbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port - Ethernet Port: 1 x RJ45 Port w/10/100TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection - PoE Port: 1 port (30W/port), Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - Fiber Port: 1 x 100FX SC type connector, Single-mode: 9/125um or 10/125um, Wavelength: 1310nm, Transmission Distance: 30 km, LFP (Link Fault Pass Through) - DIP Switch: 6 switches for LFP, Converter/Switch Mode, Fiber/Copper Port Duplex and Speed settings - LED Indicators: Power 1, Power 2, Fault, Fiber Port Link/Act, Ethernet Port Link/Act, PoE - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions: 26 × 95 × 75 mm - Weight: Unit: 0.661 lb, Shipping: 0.903 lb - Power Connection: Removable 6-contact terminal block - Input Voltage: 48V–55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 2.4 Watts - Max. PoE Power Budget: Max. 30 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -40° to 80° C (-40° to 176° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE, UL 61010-1 / UL 61010-2-201 - EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A - EMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2/3/4/5/6/8 - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
