Protocol converter IMP-C100-ST-M

wavelengthspeedmedia

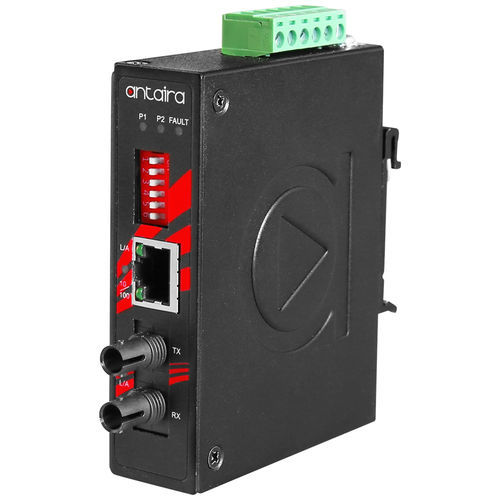

Product Overview Antaira Technologies’ IMP-C100-ST-M is a compact IP30 rated Ethernet-to-fiber media converter featuring a 10/100TX Ethernet port that supports IEEE 802.3at high power PoE (up to 30 watts), and a fixed fiber interface supporting ST connector. The model supports Multi-Mode for applications with a variety of fiber distances and types. It is designed to fulfill industrial applications that require fiber optic distance extension while using minimal space. IMP-C100-ST-M has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 48~55VDC redundant power inputs with reverse polarity and overload current protection. The model supports DIN-Rail as well as wall mountable orientations and provides an operating temperature range model in STD: -10°C to 70°C. Features - 1*10/100TX Fast Ethernet with IEEE 802.3at Compliant PoE+ - 1*100FX ST Connector (Multi-Mode) - RJ45 Port Support Auto MDI / MDI-X Function - Auto Negotiation Speed, Half / Full Duplex - Store-and-Forward Switching Architecture - Built-in Link Fault Pass Through (LFP) - Built-in Far End Fault (FEF) - Wide-Range Redundant Power Design - Redundant Power Input: 48~55VDC - Power Polarity Reverse Protection - Overload Current Protection - DIN-Rail or Wall Mountable - IP30 Protection - 5-Year Warranty Package Content - 1 - DC cable –18 AWG & DC jack 5.5x2.1mm - 1 - IMP-C100-ST-M - 1 - Quick Installation Guide - 1 - Set of wall mounting brackets and screws Technical Specifications - IEEE Standards: IEEE 802.3 10BASE-T Ethernet, IEEE 802.3u 100BASE-TX Fast Ethernet, IEEE 802.3af/at Power Over Ethernet - Processing Type: Store and Forward - Protocol: CSMA/CD - Flow Control: IEEE 802.3x back pressure flow control - Memory Buffer: 128 kbits - Transfer Rate: 14,880pps for Ethernet Port, 148,800pps for Fast Ethernet Port - Ethernet Port Count: 1 port - 10/100 BASE-T(X): 1 × RJ45 Port w/10/100TX, auto negotiation speed, Full/Half duplex mode, and auto MDI/MDI-X connection - PoE Port: 1 port (30W/port) - PoE Pin Assignment: V+, V+, V-, V-, for pin 1, 2, 3, 6 (End-span, Mode A) - Fiber Port Count: 1 port - 100 BASE-FX Fiber: 1 × 100FX ST type connector; Multi-mode: 50/125um or 62.5/125um - Wavelength: 1310nm - Transmission Distance: 2 km - Link Loss Forward: LFP (Link Fault Pass Through) - DIP Switch: DIP-Switch 1: LFP (Link Fault Pass) Enable/Disable; DIP-Switch 2: Converter Mode/ Switch Mode; DIP-Switch 3: Fiber Port Half-Duplex Mode/ Half-Duplex Mode; DIP-Switch 4: Copper Port Auto-negotiation Disable/ Enable; DIP-Switch 5: Copper Port 10Mbps/100Mbps; DIP-Switch 6: Copper Port Half-Duplex Mode/ Half-Duplex Mode - LED Indicator: Power 1, Power 2, Fault: On / Off; Fiber Port: Link / Act; Ethernet Port: Link / Act; PoE: On-connected to PD devices - Housing: Metal, IP30 protection - Mounting: DIN-Rail mount, Wall mount (Optional) - Dimensions (W × H × D): 26 × 95 × 75 mm - Weight: Unit: 0.661 lb; Shipping: 0.903 lb - Power Connection: Removable 6-contact terminal block - Input Voltage: 48V–55V DC, Redundant Input - Power Redundancy: Yes - Relay Output: 24V DC, 1A resistive - System Power Consumption: 2.4 Watts - Max. PoE Power Budget: Max. 30 Watts - Overload Current Protection: Present - Reverse Polarity Protection: Present - Operating Temperature: -10° to 70° C (14° to 158° F) - Storage Temperature: -40° to 85° C (-40° to 185° F) - Ambient Relative Humidity: 5% to 95% non-condensing - Certifications: FCC, CE, UL 61010-1 / UL 61010-2-201 - EMI: FCC Part 15 Subpart B Class A, CE EN 55032 Class A, EN 61000-6-4 Class A - EMS: CE EN 55024, EN 61000-6-2, IEC61000-4-2 (ESD), IEC61000-4-3 (RS), IEC61000-4-4 (EFT), IEC61000-4-5 (Surge), IEC61000-4-6 (CS), IEC61000-4-8 (Magnetic Field) - Stability Testing: Free Fall: IEC60068-2-32, Shock: IEC 60068-2-27, Vibration: IEC 60068-2-6 - Green: RoHS Compliant - Warranty: 5 years
