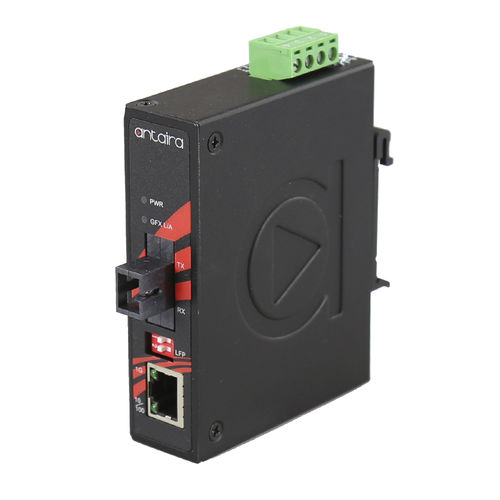

Speed converter IMC-C1000-WB-S1

mediatemperaturegigabit Ethernet

Compact Industrial Gigabit Ethernet Media Converter, with 10/100/1000TX to SC Connector. Single Fiber (WDM-B), Single-Mode 10km, TX1550nm - RX1310nm Antaira Technologies’ IMC-C1000-WB-S1 series is a compact IP30 rated gigabit Ethernet-to-Fiber media converter featuring a 10/100/1000TX Ethernet port and a fixed fiber interface supporting ST or SC connectors depending on model. There are models that support Multi-Mode and Single-Mode to support applications with a variety of fiber distances. It is perfectly designed to fulfill industrial applications that require distance extension and high bandwidth capabilities. The IMC-C1000-WB-S1 series has a built-in “Link Fault Pass Through” (LFP) and “Far End Fault” (FEF) function with 12~48VDC redundant power inputs with reverse polarity and overload current protection. This product series supports DIN-rail as well as wall mountable orientations and provides operating temperature range models in STD: -10°C to 70°C. Features RJ45 Port Support Auto MDI / MDI-X Function Auto Negotiation Speed, Half / Full Duplex Store-and-Forward Switching Architecture Built-in Link Fault Pass Through (LFP) Built-in Far End Fault (FEF) Jumbo Frame Support: 10k bytes Wide-Range Redundant Power Design Redundant Power Input: 12~48VDC Power Polarity Reverse Protection Overload Current Protection 5-Year Warranty
