EMC/EMI filters on the DC side of PV inverters contribute significantly to the compliance with the EMC directive and to an increased system reliability. With the introduction of the FN 2200 range of filters, Schaffner presents the most compact solution in the market today. It is based upon the combination of innovative technology with years of application specific experience.
|
|
|
All the advantages of IEC connector, EMI filter, fuses, switch and voltage selector combined in a powerful compact all-in-one solution. Ideal for computers, monitors and office equipment like printers and copy machines.
|
|
Single-Phase EMI/EMC Filter
Single-phase filters for chassis or DIN-rail mounting are key for EMC compliance of higher power office equipment and low to medium power industrial applications. A broad selection of electrical and mechanical features allows a specific choice and deployment for countless applications.
|
|

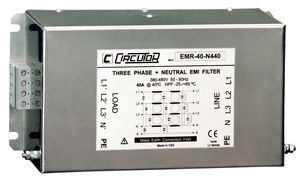

Three-phase and neutral line filters are a compact solution for the interference suppression on the mains input of cabinets and control units of equipment, ranging from industrial applications like machine tools to sensitive medical installations. These typically involve separate and often
insufficiently filtered frequency inverters and SMPS, causing current imbalance and significant interference problems. As individual elements they may be interference-suppressed already. The conjunction of several switching components in the same cabinet and a non-EMC conscious cabling will rise the demand for an additional EMC filter on the mains input of the whole installation. Many times this is the only way to get the CE mark for the cabinet in accordance with the EMC directive.
|
|
|
EMC filter solutions for industrial applications like motor drives and machine tools. Furthermore, these types of filters are also suitable for mainframe computer systems, large uninterruptible power supplies, medical equipment, wind turbine power stations and a vast array of other threephase power electronics.
|
|
Characteristics:
* DIN guide optional for rail mounted equipment (DIN ended reference).
* LL models for very low leakage current.
* NL models for better attenuation.
General specifications:
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 2000Vac 2s.
- L-›N: 2250Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
Capacitors for radio-interference suppression
classes: X1, X2, Y1, Y2
Filters for radio-interference suppression
classes: X1Y2, X2Y2
|
|
|
|
|
|
Find the ideal method to filter the AC or DC power entering your system to prevent radiated or conducted EMI with Spectrum Advanced Specialty Products’ line of standard power filters and custom power solutions. We differentiate ourselves from typical filter suppliers by offering our customers an integrated approach to EMC problem solving through consulting, diagnostic testing and manufacturing. Our power filters are designed in multiple configurations to cover a range of industrial applications. Available in single and dual stage, these power filters have excellent attenuation for high voltage impulse and are ideal for meeting broad frequency applications. As a high reliability product, we also offer low leakage and non-magnetic options. The result is an EMI power filter to lower your costs and reduce your time to market.
• Application-specific designs for the military, commercial, industrial and medical markets
• Available to meet MIL-PRF-15733 and MIL-STD-461 standards
• RoHS compliant
• Bolt-in or snap-in model varieties available
• Effective EMI performance from 100 kHz through 1.0 GHz
• Operating temperature range of -40°C to +85°C without derating
• Current ratings to 300 Amps
• UL approved and SEMKO approvals pending
|
|
Single-Phase Filters - FTA Small Size IEC Filter
Features:
Small size IEC filter
* With IEC connector, fuse and switch.
* Custom external connections on request.
* Small size.
* M: for electromedical applications.
General specifications
* Maximum operating voltage: 250Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 1800Vac 2s.
- L-›N: 1700 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
Single-phase-filter FT/FTO with IEC connector
IEC connector filter
* With IEC connector, fuse and switch.
* Wiring, selector and fuse holder available on request.
* Small size.
* M: for electromedical applications.
General specifications
* Maximum operating voltage: 250Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 1800Vac 2s.
(M version: 2500Vac)
- L-›N: 1700 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FD/FDC/FDV Series / Single-Phase Filters - IEC Connector Filter
Features:
IEC connector filter
* Multi purpose IEC connector filter.
* FD: IEC connector filter.
* FDC: with earth inductor; high immunity.
* FDV: with voltage protection.
General specifications
* Maximum operating voltage: 250Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 1800Vac 2s.
- L-›N: 1700 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
|
|
|
|

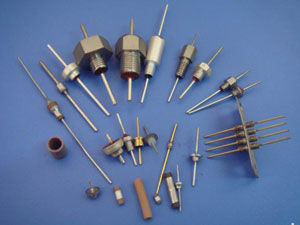

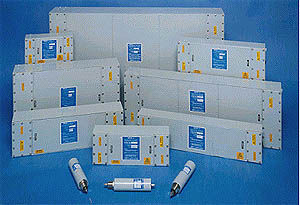

Spectrum Advanced Specialty Products offers the industry’s most complete line of resin sealed and hermetically sealed miniature and solder-in EMI filters. Built in accordance to MIL-PRF-15733 or MIL-PRF-28861, these highly reliable filters are ideal for a variety of applications in military/aerospace and commercial markets. Available in a wide range of package sizes, mounting options, and circuit configurations, we satisfy global EMC standards while meeting demanding design parameters.
Joining Spectrum’s low pass EMI filter family is the patent pending Motor Line Feed-Through (MLFT) filter. Specifically designed for DC motor and other lower voltage applications, this filter is a one-component solution that eliminates the need for multiple capacitors, inductive coils, leads and PCB assemblies requiring numerous electrical connections and large amounts of space. MLFT filters offer significant insertion loss to pass global conductive and radiated EMC tests, such as CISPR 25.
With over 800 standard QPL products and DSCC part numbers, developing a custom application specific solution to address your mechanical and electrical requirements has never been easier. With both standard and custom filtering and mechanical packages available, Spectrum provides the required EMI filtering and mechanical interface at a reduced cost.
• Resin sealed bolt-in, high current and high voltage filters available
• High temperature construction to prevent reflow during installation
• High voltage ratings
• Reliability testing available for custom specific requirements
• Effective filtering up to 18 GHz
• Competitive cost
|
|
Single-Phase Filters - FI Chasis Panel with IEC connector Fused (1-10A)
* Features
* Values Chart
* Electrical diagram
* Insertion loss graphs
Features:
IEC connector filter
* With IEC connector and fuse.
* Small size.
* F: with two fuses.
* FM: with two fuses for electromedical applications.
General specifications
* Maximum operating voltage: 250Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 1800Vac 2s.
(M version: 2500Vac)
- L-›N: 1700 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
|
|
|
|
Spectrum’s many years of experience in the design and manufacturing of filters has given us a unique perspective on EMI and its control. Our complete family of surface mount EMI filters includes mini surface mount, square surface mount, PSM power surface mount, and high frequency filters. With a simple structure and high withstanding voltage, our high performance EMI filters have a minimal PCB footprint, making them ideal for a wide range of PCB applications. Available in feed-thru and Pi circuit configurations, our high temperature constructed EMI filters are non-polar and surface mountable with excellent performance characteristics. Applications include automotive electronics, digital AV equipment, high current buss lines, peripherals, telecommunications, and switching power supplies.
• Variety of surface mount EMI filters, including: Three Terminal Chips, SA Series Arrays, MSM Mini-Surface Mount, SSM Square Surface Mount and PSM Power Surface Mount
• Tape and reel or bulk form packaging available
• Pick-n-Place equipment installation
• Available lead-free/RoHS compliant
• Rated voltage between 50 and 200 VDC
• Temperature range between -55°C and +125°C
• Capacitance ranging from 47 pF to .01μF
|
|
three-phase filter with neutral FVTO-IV Series double phase
Features:
General purpose filter
* For frequency converters / PDS.
* Footprint mounting.
* High attenuation.
* Small size.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 1300Vdc 2s.
* - Li-›Lj: 2250Vdc 2s. Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
PFT Series - Three-Phase + Neutral Line Filters - for General Use
Features:
Characteristics
* Three phase with neutral filter.
* For switching applications.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 1300Vdc 2s.
* - Li-›Lj: 2250Vdc 2s. Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FVNSB: Three phase + neutral filters for industrial applications
Features:
Three phase one stage filter
* For industrial machinery units.
* Compact size.
* With neutral line.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 2750Vdc 2s.
- L-›N: 2250Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
STF: Three phase + neutral filters for solar technology applications
Features:
Three phase with neutral filters
* Single stage.
* Solar photovoltaic applications.
* Compact model to save space.
* Low leakage current.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vdc 2s.
- L-›N: 2250Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FVDT 3-Phase for Frequency Converters without Neutral (150A-900A)
Features:
Three phase double stage filter
* Double stage ultra compac three phase filter.
* High performance for frequency converters.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 2250 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FVSB Three pase double stage filter
Features:
Three phase double stage filter
* For industrial equipment.
* Small size.
* Easy to install.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 2250 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
HCWMGF Series: Three phase filters for wind mill applications
Features:
Three phase filters
* High power filters for rated currents up to 2500A.
* Attenuation loss for class A compliance.
* Optional protective cover for busbar.
* High voltage for IT networks.
Applications
* High power converters and inverters.
* UPS.
* Renewable energy equipment.
General specifications
* Maximum operating voltage: 720Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3100Vdc 2s.
- L-›N: 3000Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FVST 3-Phase for Frequency Converters without Neutral (6-110A)
Features:
Characteristics
* Three stage single phase filter.
* For fast switching applications.
* High current.
* High voltage versions available on request.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 2250Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FVDT 3-Phase for Frequency Converters without Neutral (up to 150A)
Features:
Three phase double stage filter
* Double stage three phase filter.
* High performance for frequency converters.
* High current.
* High voltages available on request.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 2250 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
FVDT-D 3-Phase for Frequency Converters without Neutral (6-28A)
Features:
Characteristics
* Three phase double stage filter.
* Low leakage current.
General specifications
* Maximum operating voltage: 520Vac.
* Operating frequency: DC - 60Hz.
* Hipot test voltage:
- L/N-›PE: 3000Vac 2s.
- L-›N: 2250 Vdc 2s.
* Application class: HPF Acc. TO DIN 40040
* (-25ºC/+85ºC/95% RH, 30d).
* Flammability class: UL 94 V2.
|
|
Virtually eliminates the problem of conducted EMI in data line applications
Provide common- and differential-mode noise attenuation,Reduce noise by a factor of 32 from 15 MHz to 300 MHz,High current (500 mA) versions available;300 Vrms isolation;Excellent environmental stability and low cost
Available in 10 and 8 line versions;Consider our PDLF series for 4, 3 and 2 line applications;RoHS-compliant. 260°C compatible. Tin-silver-copper over silver-platinum-glass frit terminations.Samples of all values plus samples of PDLF and through-hole versions are available in Coilcraft Designer's Kit D303
|
|
Wide range of filters:
Radio frequency filters (CRFI).
I/O Inverters inductances.
Chockes.
Complete range of sinusoidal filters FCL.
|
|
|
full custom design, manufacture and testing · complete inductor winding and filter production facilities · 0.1 amp to 500 amps · 1 VDC to 5000 VDC and up to 660 VAC · frequency up to 1000 Hz · military and commercial applications
|
|
|
LCR manufactures a complete range of high quality standard and customized filters for many diverse applications. Our products are used in all appliances including portable tools, vacuum cleaners, blenders, mixers, white goods, pumps, microwave ovens and power supplies. Our EMI Filters (RFI Filters, EMC Filters) bring appliance products into compliance with all National (FCC) and International (CE,VDE, etc.) EMC regulations.
|
|
Signal Filtering
ON Semiconductor provides EMI and RFI filters, for audio and data signals, that deliver superior performance in industry-preferred DFN packages.
|
|
|
|
|
|
Laird Technologies produces an extensive line of ferrite products for inductive and EMI filtering applications with a product line that includes ferrite EMI cable cores.
Laird Technologies' cylindrical EMI suppression ferrites provide a cost-effective means of reducing common and differential mode EMI. These cores are most frequently used to suppress common mode EMI on the internal and external cable assemblies of electronic equipment. By decreasing the levels of EMI radiated by internal cables, ferrite cores can reduce the cost and amount of overall shielding required to confine EMI within a product's enclosure. They may also be successfully used on power cables that carry digital or analog signaling.
To achieve maximum EMI filtering performance in a given application, select a ferrite with an inner diameter most closely matching the outer diameter of the wire or wire bundle to be filtered. The in-circuit impedance may be substantially increased by passing two turns of the wire conductor through the ferrite core. A typical common mode application might have two conductors passed through a ferrite core. With equal and opposite currents flowing through the core, zero net bias is established through the component, and maximum impedance is thus realized from the ferrite.
|
|
|
|
