Standard Switch
DragonLine is an independent portfolio that rounds off our product range as a provider of system solutions. The portfolio consists of managed and unmanaged switches for Fast-Ethernet and Gigabit-Ethernet in industrial areas or for SOHO - applications, optionally with PoE (Power over Ethernet). The systems are available for wall fastening, DIN rail mounting or rack mounting. Moreover, Device and COM server for RS232, RS422 and RS485 interfaces are available.
- Ethernet Switches
- Industrial Ethernet Switches
- Industrial Device-Server
|
|
DragonLine 24 port Gigabit Switch (PoE/Managed/2 SFP)
Features:
- 24 10/100 plus 2 MINI GBIC /RJ-45 combo switch with 24 PoE injector and build in 200W AC power
- Confirms to IEEE802.3 10BASE-T, 802.3u 100BASE-TX/FX, 802.3ab 1000BASE-T, 802.3z Gigabit fiber, 802.3af Power over Ethernet
- High back-plane bandwidth 8.8Gbps
- Rapid spanning tree IEEE802.1w
- IGMP snooping and IGMP Query mode for Multi-media application
- Port mirror and bandwidth control
- Supports GVRP function
- End point insert mode remote power feeding
- Provides extra DC 48V input with redundant function and management power status through RS-232 port
- Management by Web/SNMP/Telnet/Console
- System event log support
- Port Based VLAN /802 .1Q Tag VLAN
- IEEE802.3x Flow control
- Flow control for full duplex
- Back pressure for half duplex
- IEEE802.3ad Port trunk with LACP
- Spanning tree protocol IEEE 802.1d
- IEEE 802.1p class of service
- IEEE 802.1x user authentication
- TACACS+ (option)
- Broadcast storm filter
- DHCP client
- On line extra power supply testing through RS-232 port
- Support command line interface management
- Support SNTP
|
|
Industrial Ethernet
In this area all Ethernet Gateways, Protocol converters and All-In-One bus nodes are filtered out and displayed. We are already offering solutions for 4 of the more then 20 Industrial Ethernet-versions. Others will be added.
Additionally you will find the Routers in this area, such as the Powerlink-Router. With these devices you connect Industrial Ethernet networks with the "standard" Ethernet.
|
|
KOM300
Industrial Ethernet to Fiber Media Converter
KOM300 is an industrial fiber optic convertor which can work in harsh electromagnetic environment within a wide range of temperature.
- Operating temperature: -40 to 75C(-40 to 167F)
- 210/100Base-T/TX, RJ45 socket
- 1-core single mode fiber
- Broadcasting storm control
- MAC Address Table Size: 1K, buffer cache: 1M
- IP30 protection class
- DIN-Rail mounting or rack-mounting
- FCC/CE/UL/ROHS
|
|
|
IMC-1021FX are industrial media converters provide media conversion between 10/100BaseT(X) and 100BaseFx. IMC-1021FX series are rigid IP-30 housing design and supporting an operating temperature of -10 to 60?C, and an extended operating temperature (T models) of -40 to 70?C. Therefore, the IMC-1021FX are reliable media converters and can satisfy most demand of operating environment.
|
|
The series e-light EL100U2 are 8 port unmanaged Industrial Ethernet layer 2 switches with auto negotiation and auto MDI/MDIX.
The EL-100U2 series contains unmanaged 7/8 port switches for 10/100MBit/s optionally with up to eight RJ45-Ethernet-ports and up to three optical ports which work with POF, HCS, and multimode or singlemode fiber optics. Additional features are auto negotiation, MDX/MDIX and redundant power supply.
The ruggedness to electrical and magnetic interferences, the potential separation of transmitter and receiver as well as ranges up to 40km between two fiber optic systems are important performance features of the transmission with POF, HCS and multimode or singlemode fiber optics. LEDs and potential free contacts of a differential relay signalize defective states.
Apart from ST and SC as optical connection types, E2000 is also available. All systems feature communication with two fibers or a single fiber by BIDI technology with SC connection.
|
|
DragonLine 4 Slot Modular Chassis Switch (Managed/Ring)
Features:
- 4 slots for 8 ports 10/100TX, 8 port 100FX and Gigabit uplink module
- Port Based VLAN /802 .1Q VLAN
- Confirms to IEEE802.3u 10BASE-T, 802.3u 100BASE-TX/FX, 802.3ab 1000BASE-T, 802.3z Gigabit fiber
- IEEE802.3x Flow control
- High back-plane bandwidth 8.8Gbps
- I- EEE802.3ad Port trunk with LACP
- Stack management via one IP address, easy management by Web GUI
- Broadcast storm filter
- IGMP support for Multi Media application
- IEEE 802.1p class of service
- Port mirror / Port security
- DHCP client
- Port bandwidth control
- IEEE 802.1d Spanning tree protocol
- Supports GVRP function
- Web/ SNMP / Telnet / CLI management
- Option Module for slot:
- 2 x Gigabit SX module
- Gigabit copper+ Gigabit SX module
- 2 x Gigabit copper module
- 8 ports 10/100TX module
- 8 ports 100FX module
- IEEE 802.1x user authentication
|
|
|
Our scope of services regarding electronic systems and communication components for fiber optic technology ranges from RS232, RS422 and RS485 to TTY fiber optic converters. Apart from that, our d-light systems offer solutions for the connection of Profibus, Profibus redundant and Modbus-Plus. Our series e-light and DragonLine consist of both managed and unmanaged Industrial Ethernet switches, partly with PoE (Power over Ethernet) functionality. With DragonLine we cover numerous applications concerning Ethernet and Gigabit-Ethernet. The systems of our io-light series transmit switch, control and analogue signals via fiber optics. Furthermore, we offer optical amplifiers and CAN fiber optic converters. Among that, we also offer compact splice boxes and hybrid splice boxes. POF, HCS and multimode or singlemode fiber optics are unsusceptible to electrical and magnetic interferences. Other performance features are the potential separation of transmitter and receiver and ranges of up to 100 km between two fiber optic systems. Apart from SC and ST as optical connection types, E2000 is also available.
|
|
CM-011-ST (CM-ST100L)
100FX(ST, Multi Mode) to 10/100TX, LLF, LFP
CM-011-SC (CM-SC100L)
100FX(SC, Multi Mode) to 10/100TX, LLF, LFP (Agilent)
CM-011-SC60 (CM-SC100L-SC60)
100FX(SC, Single Mode, 60km) to 10/100TX, LLF, LFP
CM-011-SC30 (CM-SC100L-SC30)
100FX(SC, Single Mode, 30km) to 10/100TX, LLF, LFP
CM-A1000L-GB
LLF + LFP, 10/100/1000 Base-Tx to Mini-GBIC Media Converter
|
|
KODT2200/2200B
Multi-Serial to Optical Fiber Terminals
The KODT series is specially designed for industrial application by KYLAND. It comes as the combination of serial data transmission, Ethernet and optical technology and communication for industrial process control.
Operating temperature: -40 to 75C(-40 to 167F)
Dual redundant fiber technology, recovery time<20ms
Serial ports: RS232/422/485
Alarm output for fiber ports
Dual master station backup
8 full duplex data channels, 8x8 digital cross-connection
Bus control arbitration for the data conflict
Level reversion and conversion for data interface
Wall mounting and rack mounting
Management software specially designed by KYLAND
|
|
The fiber optic systems DL-232 connect systems with a RS232 interface via fiber optics. The DL-232 allows communication via software-handshake (Xon/Xoff).
This innovative system allows creating optical point to point and bus structures.
The ruggedness to electrical and magnetic interferences, the potential separation of transmitter and receiver as well as ranges up to 40km between two fiber optic systems are important performance features of the transmission with POF, HCS and multimode or singlemode fiber optics.
LEDs and potential free contacts of a differential relay signalize defective states
|
|

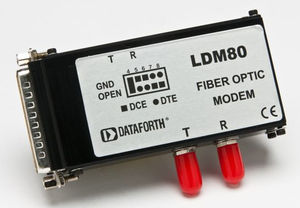

LDM80
Signal Powered Fiber Optic Modem
DESCRIPTION
The LDM80 is a small, inexpensive fiber optic transmitter/receiver completely powered by the host RS-232 port. The enclosure for the LDM80 is a conductive shell which greatly reduces RF radiation and susceptibility. The rugged metal enclosure is small enough to mount on the back panel of typical computer equipment saving valuable desk and floor space. A pair of these units allows most RS-232C cable links to be replaced and extended with a duplex fiber optic cable. The normal 50-foot (15m) RS-232 limit may be extended to 2.2 miles (3.5 km). Fiber optic data communications provide complete EMI/RFI rejection, isolation, elimination of ground loops, and reduced error rates. Data security is enhanced by almost nonexistent electromagnetic emissions. The RS-232 connection is through male or female EIA 25-pin connectors. The fiber optic connection is through ST connectors.
The LDM80 is equivalent to a 3-wire, full duplex, RS-232 circuit. Handshake signals are locally connected as in Figure 1. Indicating LEDs come on during a "SPACE" on transmit or receive data. A TD/RD reversing DIP switch is provided for connection to DTE (Data Terminal Equipment) or DCE (Data Communication Equipment) ports.
|
|
e-light2M is a 8 port switch that features ring function based on the Pathfinder Ring (P-Ring) with a recovery time of less than 300ms.
e-light2M is available with up to 4 flexibly configurable FX-ports and up to 6TX-ports. The Fast Ethernet switches with their industrial design are useable in a wide temperature range of -30C to +75C and are suitable for both DIN rail mounting and wall fastening.
The e-light2M management highlights are amongst others: Web Management GUI, Port Mirroring, DHCP Client, IGMP, SNTP, SMTP, port and tagged based VLAN, SNMP in connection with Web Management and RMON, quality of service as well as an alarm relay output for system events. e-light2M is suitable for POF, HCS, multimode and singlemode and allows ranges of up to 100km.
|
|
Fiber Optic Converters
Extend Communications Up to 9 Miles!
Any two pieces of asynchronous serial equipment can communicate at half or full duplex over two fibers at rates up to 460 kbps for RS-422/485 or 115.2 kbps for RS-232 with a pair of these converters. Fiber lines are inherently resistant to EMI/RFI and transient surges, so they are ideal for data communications near heavy electrical equipment and other electrical or radio interference.
Standards can be mixed and matched so RS-232 devices can be connected to RS-422/485 devices, replacing a converter and isolator. When working with RS-485 signals, B&B Electronics Automatic Send Data control eliminates the need for driver software. Serial connections are on terminal blocks; multimode fiber side has two ST connectors. Requires external power supply not included.
General Features
FOSTCDRi-SC extends communication up to 9 miles
Wide temperature ranges (-40 to 80 C)
Extend signal up to 2.5 miles
Modbus ASCII or RTU compatible
Automatic Send Data control
EMI/RFI and transient Immunity
DIN rail mount
CE approved
Premium model - FOSTCDRi - features include 10-48 VDC operation, triple isolation, 2000V input/output power supply, UL Class 1 Div 2 approval, CSA approval, CE approved.
Standard model - FOSTCDR - features include 10-30 VDC operation, 2-way isolation, 2000V input/output, CE approved
|
|
Korenix JetCon1301 is a compact sized and rugged industrial fast Ethernet media converter with one 10/100M Fast Ethernet copper & one 10/100M single-mode or multimode fiber port. The power input range is either 18~27VAC or 18~32VDC. JetCon 1301 supports wide operating temperature from -10 to 70.
The JetCon1301 is world's first fiber Ethernet converter with pure converter mode design. Pure converter mode design guarantees the packet will never be lost with extreme short data forwarding latency. The pure converter mode design just forwards the signal to link partner without packet checking which is suitable for proprietary communication protocol such as EtherCAT.
|
|
RocketLinx MC5001 and MC7001 are full-featured industrial grade serial and Ethernet fiber media converters. They are designed to meet the needs for EMI immunity and extended fiber transmission within the harsh environments typical of traffic, power, rail, and other industrial applications.
The RocketLinx family includes models supporting Single-mode and Multi-mode ports for long distance transmission. These products offer excellent immunity to electromagnetic interference, extended operating temperature ranges, and are compatible with a wide range of DC input voltages. Products are housed in rigid aluminum housings that are IP30 (MC5001) and IP31 (MC7001) rated for installation in hazardous applications.
All media converter models feature terminal block wiring connectors, and provide convenient DIP switch configuration of serial port and communication modes. All MC5001 models support RS-232, RS-422, and RS-485 serial communication.
|
|

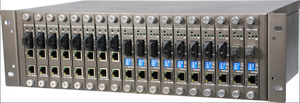

RuggedMC RMC
Ethernet Media Converter (Copper to Fiber)
Universal Power Supply Options :
- 24VDC, 48VDC or HI (88-300VDC / 85 - 264VAC) options
for worldwide operability
- Integrated high-reliability power supply eliminates the need
for external power transformer
- Screw down terminal blocks ensure reliable maintenancefree
connections
- All power supplies CSA/UL 60950 approved for
+85C (+185F) operation
- Meets NEMA TS 2 (1998) Environmental Requirements
for traffic control equipment.
Designed for Harsh Environments
- Exceeds IEC 61850-3 and IEEE 1613 Standards for
communication equipment in electric power substations.
- Operates over a temperature range of -40C to +85C
without the use of fans for improved reliability
- 21 AWG galvanized steel enclosure suitable for DIN or
panel mounting provide secure mechanical reliability
|
|
The JetCon 3401G, the industrial Gigabit Ethernet media converter, is equipped with a rugged aluminum alloy case with IP-31 grade ingress protection against
damages of solid objects or dust. With the excellent characteristics of heat dissipation, JetCon 3401G is capable to perform better than ordinary Gigabit Ethernet media converters which are enclosure by steel metal with various of heat dissipation holes.
Unlike those with a single power input, the real time redundant power backup on JetCon 3401G leads to the functionality of a real Industrial Gigabit Ethernet Media Converter with the non-stop transmission.
*Converts 10/100/1000TX to Gigabit Fiber
*Flexible SFP Fiber transceiver design
*Auto Fault Detection and Alarm
*Fault Alert for port and power
*Two way Link loss forwarding
*Power redundancy with wide range input
*IP-31 grade protection with wide range operating temperature
*1.5KV Hi-Pot testing passed
|
|
RD300-OF & RD320-OF series
Serial RS232/RS422/RS485 to multimode or single mode fiber optic media converter.
Our devices features a self configuration mechanism based on a CPLD component freed you from the tiresome operation which consist in the serial parameters setup, product is "Plug & Play".
Using fiber optic enables to use a higher communication bandwidth while offering a total immunity against EMI/RFI interferences and an increased security as well.
The optical fibre still offers other advantages : use without risk in an explosive environment, no EMC emission, no ground loops, immunity against lightning and high voltage environments, they are finally lighter, less cumbersome, inert and corrosion resistant ...
|
|
JetCon2401 is a Multi-serial to fiber media converter which adopts RS-232/RS-422/RS-485 triple mode circuits with auto baud rate and direction control. It extends the serial signal link distance to 5KM (JetCon2401-m Multi-mode Optical Fiber) or 40KM (JetCon2401-s Single-mode Optical Fiber) and also provides good immunity of EMI/EMS.
To ensure nonstop transmission in hazardous environment, JetCon2401 supports wide operating temperature range, -20~70 model (JetCon2401).
Further more, JetCon2401 supports wide range power input (DC/AC) and DIN rail mount for quick and easy installation.
|
|
RuggedMC RMC20
Serial Media Converter (Copper to Fiber)
Port Options :
Protocol independent RS485, RS422, or RS232
(user selectable) conversion to multimode fiber optics
(ST connector only)
RS232 to RS485/422 conversion mode
Fully EIA/TIA RS485, RS422, RS232 compliant communications
Built-in, defeatable, RS485/RS422 termination networks
Point-to-point, or optical loop configurations
Full or half duplex configurable
Support for high-speed serial baud rates from
300 to 115200 baud
Key Features :
Protocol independent (use for Modbus, DeviceNET, Profibus, DNP 3.0, proprietary, etc)
Extend lengths of serial connections (up to 5km/hop)
Media conversation is transparent to end devices
|
|

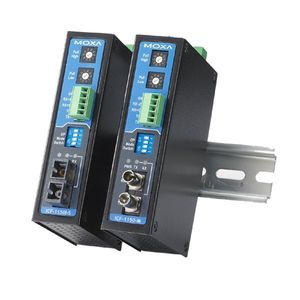

Introduction
The ICF-1150 series support 2 serial ports, with a D-sub connector for RS-232 communication and a removable terminal block for RS-422 or RS-485 communication. The 3 ports (2 serial ports and one fiber port) are completely independent. When an ICF-1150 converter receives data from any one port, it will send the data out through the other 2 ports. For example, once the ICF-1150 converter receives a command from the remote master through the fiber port, it will convert the signal and send the command through the RS-232 and RS-422/485 ports at the same time. If the user is monitoring a system running on an RS-485 network, there is no need to use an additional RS-232 to RS-485 converter to connect the laptop computers serial port to the RS-485 bus.
Features
RS-232, fiber, and RS-422/485 3-way communication
Rotary switch to change the pull high/low resistor value
Extend RS-232/422/485 transmission up to:
1. 40 km with single-mode
2. 5 km with multi-mode
3-way Galvanic Isolation (for "I" model only)
-40 to 85C wide temperature models available
Class I, Div. II certification (Pending)
|
|
Media converters for translation between copper and fibre optic media
Weidmller Industrial Ethernet media converters provide a solution for industrial applications that require a highly reliable, robust data exchange between copper and glass fibre media. Media converters are cost-effective devices and give users the option of integrating fibre optics into their networks. The Weidmller media converters are real-time-compatible and remain transparent in the network.
|
|
