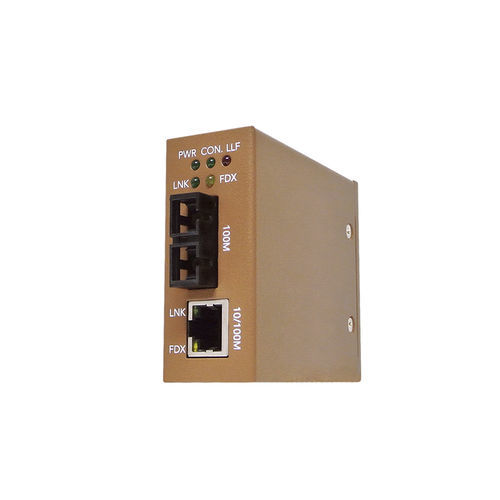

Media converter DS101 series

Ethernetfiber opticsEthernet to Fiber

The DS101 industrial media converter provides industrial-grade media conversion between 10/100BaseT(X) and 100BaseFX (SC/ST connectors). The ruggedized IP41 design keeps automation applications running continuously even under extreme temperatures from -40 to 75°C. For critical industrial applications, the DS101 converter passes IEC 61000-6-4 Heavy Industrial EMC and EN50121-4 Railway Track Side EMC standard to provide excellent electromagnetic immunity. Link Loss Forwarding Bi-Directional Link Loss Forwarding for Real Time Far-End Link Fault Alert Bi-Directional Auto Recovery for Ethernet Optical Fiber and Ethernet RJ-45 Communication Dual Forwarding Modes Pure Converter Mode: Low Packet Forwarding Latency – 1.6x10-6 Sec Switch-Store and Forward Mode: TX 10/100Mbps Auto-Negotiation Auto MDI/MDI-X IEEE 802.3x Flow-Control & Back-Pressure Error Packet Filtering Standard Compliance IEC 61000-6-2/ IEC 61000-6-4 Heavy Industrial EMC EN50121-4 Railway Track Side EMC High Level Electro Magnetic Susceptibility – Level 3 Easy System Configuration Switch Store and Forwarding Mode support TX Speed Auto Negotiation and Auto MDI-X Hardened System Design Survive Under -40 ~75°C Environment Ingress Protection – IP41 Suitable for Telecom Negative Power System Compact Size Design Cigarette Box Size- Minimal Space Requirement Easy Cable Reorganization Special Vertical Market Application Factory Automation – Real Time Machine Communication Railway Track Side – PLC Communication Telecom Unattended Station – Ethernet / Fiber Conversion
