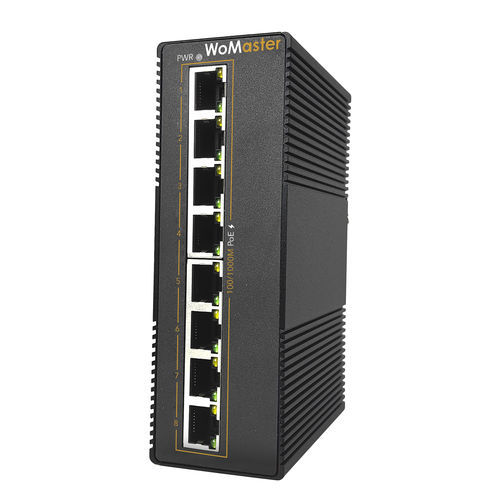

Unmanaged ethernet switch IDP208G-8GP

8 portsgigabit EthernetLAN

The IDP208G-8GP features 8 10/100/1000Base-T PoE electrical ports with support for IEEE802.3af (15.4W) and IEEE802.3at (30W) standards, ensuring seamless connectivity for high-power devices. The switch operates within a wide temperature range of -40°C to 85°C with IP40-rated durable aluminum alloy housing. With anti-static protection up to ±15KV air and ±8KV contact, and network port lightning protection up to ±4kV common mode and ±2kV differential mode, the IDP208G-8GP ensures stable and secure operation in industrial environments. Full Gigabit Switching • 8-port Full-Giga Ethernet with Auto Negotiation • 8K MAC address table • Stores and forwards with non-blocking switch fabric • Switching capacity: 16Gbps for layer 2 application • Overall packet forwarding rate: 11.904Mpps Extreme PoE Capability • 8-port IEEE 802.3af/at compliant PoE technology, up to 30W per port • IEEE 802.3af/at adaptive • Output Voltage: DC 48-57V Rugged Mechanical Design • Robust design protects from mechanical deformation • IP40 ingress protection to withstand harsh environment • Wide operating temperature range -40 ~ 75°C • CE marking • Anti-static (ESD) air ±15KV contact ±8KV • Network port lightning protection: common mode ±4kV differential mode ±2kV • Dual power redundancy
