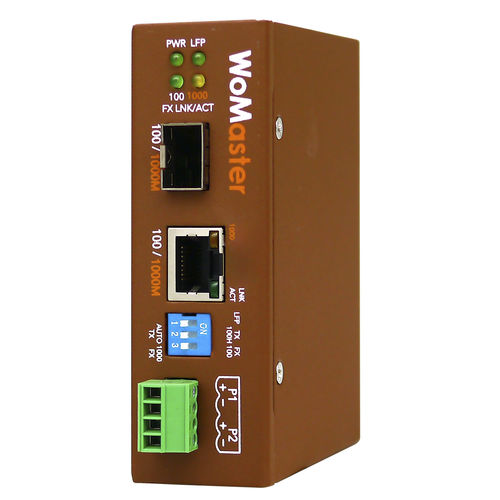

Speed converter DS201

communicationsmediasignal

The industrial-grade fiber optic media converter DS201 can operate in either low latency converter mode or store & forward switching mode. The fiber interface supports 100Mbps/1000Mbps SFP by dip switch configuration. It detects and changes to switch mode if the copper and fiber speed or duplex are different. In converter mode, the Link Fault Pass-Through (Link Loss Forwarding) reaches low latency with bi-directional alert and auto-recovery. The 16Kbytes jumbo frame forwarding capability guarantees high-speed Giga communications. Wide operation temperature -40~75C and heavy industrial EMC design brings DS201 suitable for any industrial application. Ethernet Media Converter •Converts Optical Signal and Gigabit Ethernet Electrical Signal •Bi-Directional Link Loss Forwarding for Real Time Far-End Fault Link Alert •Bi-Directional Auto Recovery for Ethernet Optical Fiber and Ethernet RJ-45 Communication Dual Forwarding Modes Pure Converter: Minimum Forwarding Latency – 8.2x10-9 Sec. Ethernet Switching Store-and-Forward: TX 100/1000Mbps Auto-Negotiation, Auto MDI/MDI-X IEEE 802.3x Flow-Control & Back-Pressure CRC Error Packet Filtering Large Packet Forwarding 16Kbytes Jumbo frame for Gigabit speed forwarding EN 50121-4 Railway Track Side EMC High-Level Electro Magnetic Susceptibility – Level 3 Easy DIP switch Configuration Forced Fiber 100Mbps Link Fault Pass-Through / Link Loss Forward Hardened System Design Operates Under -40 ~75°C Environment Ingress Protection – IP31 Compact Size Design Minimal Install Space Requirement Easy Cable Reorganization
