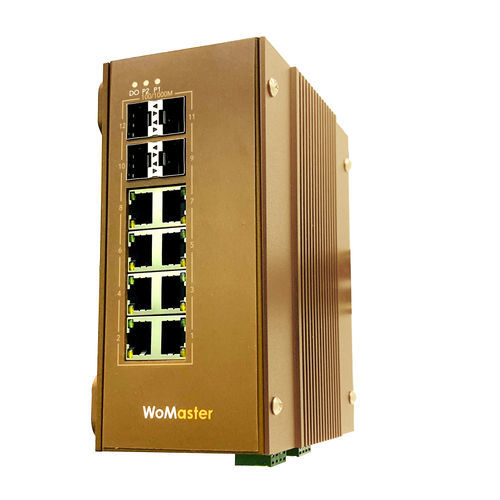

Managed ethernet switch DS612

12 portslayer 2gigabit

The 12 Port Gigabit L3 Managed Switch DS612 supports various routing protocols such as IP/VLAN routing, RIP, OSPF, VRRP router redundancy to be fully compatible with your backbone network. It is designed with advanced cyber security features such as Port-Based Security- IEEE802.1 x MAB (MAC Authentication Bypass), Access Control List (ACL, MAC/IP/ARP filter), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection as well as advanced redundancy features such as WoMaster ERPSv2 Plus and eRSTP. The rugged EMC design of DS612 is certified by IEC 61850-3/IEEE 1613/EN 50121-4 standard that is the best choice for substation and railway wayside applications. Full Gigabit Switching and Ultra-high Throughput 16K MAC address table 1.5MByte packet buffer memory for H.264 burst 9K bytes jumbo frame Store-and-forward with non-blocking switch fabric 8 flexible Class of Service(CoS) queues, 512 L2 Multicast Groups for video applications WoMaster ERPSv2 PLUS Ring Technology Inter-Operability with 3rd party ITU-T G.8032 v1/v2 ERPS switch and still remain fast recovery time Replace legacy Ring + Chain + Dual Homing Enhanced RSTP(eRSTP) Enhance the RSTP fault recovery time performance Enhance RSTP performance for large ring network topologies with up to 80 switches Dynamic Routing with Redundancy Protection RIPv1&v2, OSPFv1&v2 for intra-domain routing within an autonomous system Efficient unicast/multicast static routing VRRP guarantees sustainable routing in a single point of failure Compliant with IEC62443-4-2 Level 3 / 4 Cyber Security L2-L7 IPv4/IPv6* Access Control List (ACL)
