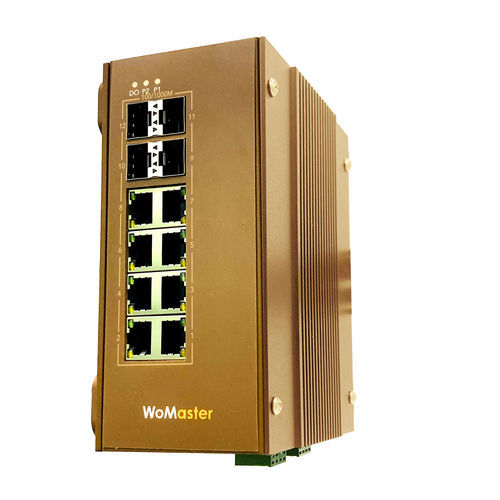

Managed ethernet switch DS412

12 portslayer 2gigabit Ethernet

The 12 Port Gigabit L2 Managed Switch DS412 supports critical cyber security features such as Port Based Security- IEEE802.1 x MAB (MAC Authentication Bypass) , Access Control List (ACL, MAC/IP/ARP filter), DHCP Snooping, IP Source Guard, Dynamic ARP Inspection as well as advanced redundancy features such as WoMaster ERPSv2 Plus and eRSTP. The rugged EMC design of DS412 is certified by IEC 61850-3/IEEE 1613/EN 50121-4 standard that is the best choice for substation and railway wayside applications. High performance CPU & Full Gigabit Switching Powerful 1.2GHz ARM Cotex-A9 processor Non-blocking switch fabric design 16K MAC address table 9Kb Jumbo Frame Fiber ports support both 100M and 1000M SFP DDM function for fiber connectivity monitoring WoMaster ERPSv2 PLUS Ring Technology ITU G.8032 v1/v2 ERPS Ring Redundancy & HW-based CFM for quick acknowlegement while GbE copper link failure, providing 20ms recovery time and seamless restoration. ERPSv2 available to replace legacy Ring + Chain + Dual Homing Inter-Operability with 3rd party industrial switch and still remain fast recovery time. Support Enhanced RSTP for large ring network topology with up to 80 switches. IEC62443-4-2 Level 3 / 4 Cyber Security 802.1X/RADIUS port-based access control IP Security/Port Security HTTPs/SSH Management IP secure access Industrial IoT LAN & Cloud Management Support WoMaster Software Utilities: -NetMaster Network Management System -ViewMaster for Configuraiton Management -ThingMaster, ThingMaster OTA for device management over Cloud
