PTP converter EMCON 200

Ethernet mediaoptical fiberPoE

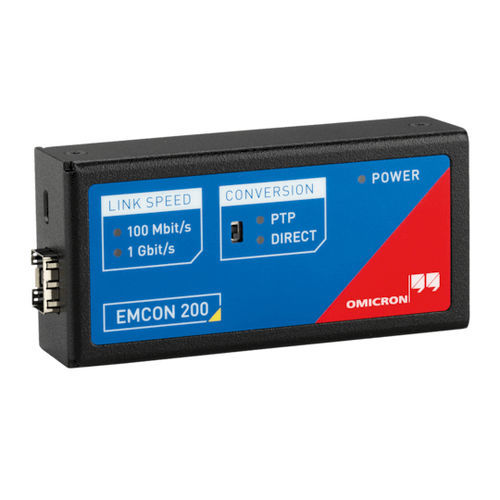

PTP transparent Ethernet media converter EMCON 200 is an Ethernet media converter used for connecting optical fiber and twisted pair copper Ethernet networks. Copper-based connections are limited to a certain data transmission rate and distance, whereas optical fiber cables can transmit more data over much longer distances. EMCON 200 can also be used in networks with different fiber optic link speeds and wherever IEEE 1588 Precision Time Protocol (PTP) time synchronization is required. EMCON 200 is also a valuable accessory for OMICRON’s CMC and DANEO 400 devices that can provide the power required for EMCON 200 with an Ethernet cable (PoE). Key Features • Cut-through forwarding between twisted pair copper and optical fiber networks • PTP transparent clock according to IEEE 1588-2008 for preserving time synchronization • Link speeds of 100 Mbit/s or 1 Gbit/s (determined by the connected SFP transceiver) • Power supply with Power over Ethernet (PoE) or USB • Various fiber types (depending on SFP module) for high flexibility • Auto-negotiation with link partners • No frame size limit (jumbo frames support) • Link fault pass through • Low power consumption
