Protective conduits for cables and accessories are available for temperatures from -60°C up to + 230°C, for protection class up to IP 69K, they are resistant to solvents, liquid-tight, or with a silicone cover. You will find conduits in the mechanical engineering and equipment manufacturing, in automation, in power stations, or in the automotive and railway industry. They keep electromagnetic impacts away from data lines, they protect cables against physical impacts, or they guarantee easy sterilizability for tools and instruments in the medical sector.
- Protective metal conduit not liquid-tight
- EMC protective conduits
- Protective metal conduit liquid-tight
- Synthetic protective conduits liquid-tight
|
|
The Reiku flexible sheathes, made of polyamide, complete Brevetti Stendalto's specific products range for the dynamic cable protection.
Thanks to their high strength and flexibility, the Reiku sheathes are reliable and easy setting up solutions, for chemical, thermic and mechanical agents cable protection, along with their wide accessory range.
|
|
PROTECTIVE CABLE CONDUIT SYSTEMS AND CABLE CARRIER SYSTEMS
In many applications cables have to be additionally protected against mechanical and chemical stress. For this type of application, Lapp Group can supply the universal SILVYN® protective cable conduit program. Cable conduits manufactured from metal or plastic material, which can be used with matching glands to form a perfect system connection. The complete system results in all round protection for cables in indoor and outdoor installations. With SILVYN® CHAIN, Lapp Group’s widely variable programme of power chains we offer both cable protection and guidance for highly dynamic
|
|
PVC flexible sheath with reinforced plastic spiral for a high resistance to flexion Meets UL 94 and EN 50086.2.3. Standards prescriptions.
|
|
|
Protective conduits for cables and accessories are available for temperatures from -60°C up to + 230°C, for protection class up to IP 69K, they are resistant to solvents, liquid-tight, or with a silicone cover. You will find conduits in the mechanical engineering and equipment manufacturing, in automation, in power stations, or in the automotive and railway industry. They keep electromagnetic impacts away from data lines, they protect cables against physical impacts, or they guarantee easy sterilizability for tools and instruments in the medical sector.
|
|
SILVYN® LCC-2
Protection against liquids; Tensile strength; Highly compreshion proofed; Highly flexible; For higher mechanical stress
Application range
Mechanical engineering
Plant engineering and construction
Outdoors application
Everywhere where liquids are in the environment
applications with mechanical stress
Design
Spirally wounded metal protective conduit with roughenged profile
PVC outer sheath
|
|
|
Protective conduits for cables and accessories are available for temperatures from -60°C up to + 230°C, for protection class up to IP 69K, they are resistant to solvents, liquid-tight, or with a silicone cover. You will find conduits in the mechanical engineering and equipment manufacturing, in automation, in power stations, or in the automotive and railway industry. They keep electromagnetic mpacts away from data lines, they protect cables against physical impacts, or they guarantee easy sterilizability for tools and instruments in the medical sector.
|
|
|
|
|
|

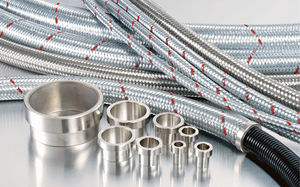

Adaptaflex have a choice of fifteen individual metallic conduit systems manufactured either in galvanized steel or stainless steel.
A range of 3 different conduit types provide a solution for liquid resistant specifications with a further 3 conduit options in liquid tight covered steel conduit for especially demanding environments. Conduit ranges are offered in nominal conduit size from 3mm for CCTV/roller shutter doors and for protecting fibre optics cables right up to 75mm for larger cable carrying capacity.
Overbraided conduits are particularly suitable for installation in abrasive environments. Where applications call for enhanced low fire hazard properties or EMI screening then there is the option of high specification tinned copper overbraided for greater EMI protection levels.
In addition a range of fittings are specifically designed to maintain system integrity including fixed and swivel fittings, straights, 90°, 45°, and a host of accessories including locknuts, enlargers, reducers and converters. Many of our conduit systems have industry recognised approvals including British Kitemark, CE Approval, UL Listing, NF, LUL, DB, and Lloyds Register amongst others.
Advantages
High compression/crush strength
Tensile strength - pull off load under tension
Impact resistance
Inherent fire protection on uncoated versions
Corrosion resistant - stainless steel options
Braided - High level EMI screening with tinned copper overbraided
Greater temperature tolerances
|
|
|
|
|
|
Heyco-Flex I Liquid Tight Conduit
Flexible, Nonmetallic Liquid Tight Electrical Conduit
3/8" thru 2" trade sizes.
Use with nylon Heyco-Flex Connectors: Snap-in. Straight or Sweep.
Mayalso be used with Heyco's Die Cast Fittings tor Liquid Tight Conduit.
Resists corrosion, abrasion, oil. water, acid, metal shavings, and rough environments.
Resists abuse, pull, and crushing.
Temperature ratings: 80°C (203°F) DRY; 70°C (160°F) OIL Resistance 60X (140°F) WET locations
Passes submersion testot70 psi.
Mounting Brackets are available.
Smooth inside tor easier wire pulling: no hazardous sharp edges or burrs: will not damage conductors.
Lightweight and lower installed cost.
Quick installation; cuts with utility knite, PC cutter or Heyco cutting tool (#8340).
Integral rigid and flexible PC construction.
Suitable tor indoor/outdoor use: HVAC Equipment. Machine Tools. Marine Equipment. Motors and Controls. Printing Equipment. Pumps. Refrigeration Equipment
Approved for direct burial.
Order Part No. 8340. VF-28 Cutting Tool, for cutting Heyco-Flex conduit and tubing cleanly and evenly.
|
|
Straight Swivel Fitting - External thread
Type: M - SPL, SPLHC & SPUL
Description: For insertion into threaded entries & knockouts.
Material: Nickel plated brass
IP Ratings: IP66, IP67, IP68, IP69k
Part No Size Colour
SPL10/M12/M 10_mm Silver
SPL10/PG7/M 10_mm Silver
SPL12/M16/M 12_mm Silver
SPL12/PG9/M 12_mm Silver
|
|
| ... products without technical information |
| |
|
|
|
|
Copper braiding on tube former
Material: Tinned copper round braiding on PVC tube former
Properties: Highly flexible hollow wire braiding conduit, easy pulling in of cables due to the tube former
Application: CEM-screening an shielding braiding
Temperature range: -75°C / +150°C
Braided cable sleeving polyamide
Material: Polyamide PA 6.6, strand 0,25mm
Properties: Highly flexible, self-adapting, resistant to abrasion, free of cadmium, formaldehyde, halogen and graphite, self-extinguishing acc. to DIN 75200 (FMVSS 302), good resistance to fuel, mineral oil and many other chemicals
Approved: Smoke and toxic test acc. to NF F16-101 classing F2, behaviour in fire acc. to UNIFER E10.02.977 30 sec. flame impingement
Temperature range: -55°C / +125°C
Colour: Black
Braided cable sleeving polyester
Material: Polyester PET
Fire classification: V0 acc. to UL 94
Properties: Highly flexible, self-adapting, resistant to abrasion, free of cadmium, formaldehyde, chrome 6, nickel, lead, PVC, halogen and graphite, self-extinguishing acc. to DIN 75200 (FMVSS 302), good resistance to fuel, mineral oil and fatty matters
Approved: Smoke and toxic test acc. to NF F16-101 classing F1, behaviour in fire acc. to UNIFER E10.02.977 30 sec. flame impingement
Temperature range: -50°C / +150°C
Colour: Black matt
|
|
|
Tubing protection with closing system for mecanical, EMI/RFi or thermal protection Diameter between 9 and 100 mm
|
|
Optical Fiber Flexible Guide System
Features
●Fully modular system giving complete fiber
management and protection at PCB level applications
●For use with 250 and 900 micron fiber
●Fibercan enter and exit at any point, without risk of fibersnagging or kinking
●Angled and straight lugs located along the top of the guide preventing fiberfrom springing out
●‘Snake’the guide through and over components, where space is limited
●Flat and raised supports available, other support post heights and panel thicknesses available by special order
|
|

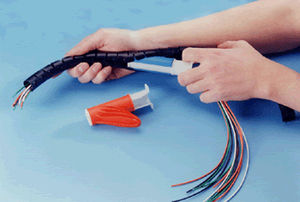

Richco's Slit Harness Wrap (SHR) is the answer to cable management problems in industrial applications, where the jumble of cables can be unsightly and dangerous.
The SHR is a revolutionary system that enables cabling to be tidied and managed in seconds via the use of a special applicator tool. The SHR can be removed at any time and is totally reusable.
|
|
|
|
