initial smallest measurable flow rate dependent on type of vane wheel:
in gases 0.2...1.6 m/s; in liquids 0.01...0.1 m/s
terminal flow rate dependent on type of vane wheel:
in gases 3 m/s; 20 m/s; 40 m/s; 80 m/s;120 m/s;
in liquids: 3 m/s; 7.5 m/s; 10 m/s; condition: no cavitation
probe diameter:
16 mm; 25 mm; 25/27 mm and 30 mm
working temperature range:
up to 100° C; 260 °C; 370 °C; 450 °C and 500 °C
maximum working pressure:
up to 10 bar overpressure (higher on demand)
explosion-proof type of protection:
Category 1G, 1D (Zone 0, Zone 20); Category 2G, 2D (Zone 1, Zone 21)
probe tube material:
aluminium, stainless steel, titanium
optional incl. direction indication
optional incl. integr. temperature measurement
special designs on request
====================================================
Compact units for use in Ex-applications:
for gas: Ex II 1/2 G Ex d e [ia] IIC T6 and
for dust: Ex II 1/2 D Ex iaD20/tDA21 IP6x TX
sensor for use in category 1 (Ex-zone 0 rsp. 20)
transducer housing for use in category 2 (Ex-zone 1 rsp. 21)
probe with diameter 25 mm in different lengths between 250 mm and 650 mm
initial smallest measurable flow rate:
in gases 0.3 m/s; in liquids 0.03 m/s
terminal flow rate:
in gases 20 m/s; 40 m/s; 80 m/s; 120 m/s
in liquids: 7,5 m/s; 10 m/s;
condition: no cavitation
working temperature range:
up to 100 °C; 260 °C; 370 °C und 500 °C
|
|
Turbine Flow Sensor - Series TF
0-5 VDC Output, Liquid or Gas
|
|
Hoffer flow control
Controls turbine flowmeters
Of all the various types of flow transducers available to industry today. None are so universally applicable as turbine flowmeters. They continue to be the most common way to measure flow electronically and have the ability to measure available upon request offering detailed, technical information.
|
|
Flow Sensors
THORNTON offers a variety of paddlewheel, vortex shedding, and sanitary turbine flow sensors to meet the needs of most pure water treatment applications. Smart flow sensors convey their precalibrated values to the 770MAX instrument for ease of installation and startup. Pulse flow sensors can be used with the 770MAX or M300 instruments.
|
|
FLOW RANGE (Note 1)
Ranges shown are standard ranges — other ranges are available. Contact Hoffer Flow Controls Applications Group.
BEARING TYPES (Note 2)
—CB Hybrid Ceramic, Self-lubricating shielded ball bearings. Ball bearings must be used on CO2, may be used on H2O and never on H2O/Sand or CS.
—C Hard Carbon Composite sleeve bearings. For use on H2O only.
—T Tungsten Carbide sleeve bearings. Tungsten Carbide must be used on H2O/Sand and CS, may be used on H2O, and never used on CO2.
|
|
measuring tube inside diameter:
9.7 mm; 18.2 mm; 25 mm; 32 mm; 40 mm; 50 mm ...
alternative forms of connection depending on inside diameter of measuring tube:
tube fittings; cutting ring fittings; flange connection;
flat tube ends; internal screw thread for connecting nipples
alternatively with / without input / output section
alternatively with / without integrated transducer
initial smallest measurable flow rate dependent on type of vane wheel:
in gases from 0.08 m³/h,
in liquids 0.007 m³/h
terminal flow rate dependent on type of vane wheel:
in gases 20 m/s; 40 m/s; 80 m/s;120 m/s;
in liquids: 3 m/s; 7.5 m/s; 10 m/s
working temperature range:
-20° C... 100 °C; -20 °C... 240 °C (higher on demand)
maximum working pressure:
up to 10 bar above atmospheric (higher on demand)
materials:
stainless steel; aluminium ...
explosion-proof type of protection:
Category 1G, 1D (Zone 0, Zone 20); Category 2G, 2D (Zone 1, Zone 21)
special designs on request
|
|
|

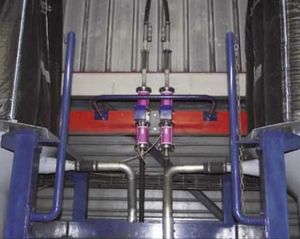

A large range of flow meters ideal for hydraulic applications that require a large turndown ratio, high accuracy, and low pressure drop. Range from 1 - 1500 lpm. Pressures up to 480 bar. Pressure test point and additional sensor ports included as standard. Available with 4-20mA, 0-5V or Pulse signal output.
|
|
The Water Specialties Propeller Meter is the best choice for measuring clean water flows in municipal and industrial applications. The meter is engineered to deliver superior performance, low maintenance and unsurpassed durability. Meter materials and performance meet or exceed AWWA standard C704/92.
Water Specialties Propeller Meters are manufactured using precise techniques and high quality materials. For example, long-life ceramic thrust bearings and a cast bronze gearbox produce the best propeller meter available.
Measurement accuracy is +/- 2% of reading. The meter accommodates flow ranges from 35 GPM to 200,000 GPM. The Water Specialties Propeller Meter can be installed vertically, horizontally or inclined, with sizes ranging from 2" to 120".
Proven design for clean water flows
Quality construction
Long-life components
Meets/exceeds AWWA standard
Accuracy of +/-2% of reading
Wide flow range
|
|
|
|
|
|
McCrometer has set the standard for liquid flow measurement performance, ease-of-use and value in the agricultural and turf markets since 1955. Its leading-edge propeller flow meters offer economical and versatile flow measurement. The Mc Propeller is suited to dirty water flows, municipal and other high-volume water applications.
Unlike traditional propeller meters, the Mc Propeller uses a flexible drive-train and sealed ball bearings. A unique design makes it easy to service in the field and requires no external power or batteries. The Mc Propeller is designed to comply with AWWA standard No. C704/02. Standard features include an instantaneous flow rate indicator and six-digit totalizer.
There are no tight tolerances in the Mc Propeller. It handles solids suspended in water without clogging. With its high accuracy, this flow meter is also a water management tool, that reduces water costs, preventing over-irrigation and reduces leaching of chemicals and fertilizers into the ground.
Key features:
Best-selling irrigation meter in the US
Clean and dirty flows
Easy to install and operate
Easy to service in the field
Accuracy of +/-2% of reading
Repeatability of +/-0.25%
Self-cleaning design
Instantaneous flow rate Indicator-totalizer on every model
Flow range of up to 25:1
|
|
A meter for delivering low viscosity fluids with a turbine measuring system. Easy to install, in line or at the end of a
delivery pipe, equipped with an easy-to-read, compact screen.
The meter can be installed directly onto the nozzle for
convenient, on-the-spot reading of the quantity delivered.
Thanks to its strong casing and a sealed plug-in electronic card, this sturdy meter can be used in practically all conditions.
The card can be rotated for easy display reading from all angles.
Turbine measuring system.
Reinforced polyamide body.
Polypropylene turbine.
Pulser type signal: single channel,
reed switch.
Electronic card with LCD display:
Partial 5 figures from 0.1 to 99999,
Total 6 figures from 1 to 999999.
Total resetting available.
Flow indication.
Batteries: n. 2 batteries size AAA
|
|
Available Temperature Range: -400°F to +350°F
continuous (to +400°F intermittent heat).
End Fittings: MS flared and flanged styles are
recommended. Other types available on request.
Bearing Styles: Ceramic hybrid ball bearings sizes 1¼”
through 12”. Stainless steel ball bearings sizes ¼” through
1”.
Materials: 316 stainless steel standard. Consult with
applications group for corrosive applications. Broad material
list available.
*** Linearity is density-dependent for a given meter.
Consult factory for details.
|
|
Flow Monitoring
Blue-White manufactures electronic BW DIGI-METER digital flow meters, flow sensors, and flow monitoring equipment; as well as MICRO-FLO Flow Verification Systems.
BW DIGI-METER variations include Rate and Totalizer meters; 4-20mA / 0-10 VDC analog output flow rate and totalizers; Batch Process Controllers; and Hall Output Signal. Both battery and AC powered versions are offered. Many material, calibration and mounting styles are available.
MICRO-FLO variations include: Sensor Only and Panel Mount Display. Units can be mounted to Blue-White metering pumps to verify chemical injection has occurred. Flow units include: Gallons; Liters; Ounces, Milliliters. Time units include: Minutes; Hours; Days.
|
|
Low cost.
· Outstanding accuracy.
· Provides wide flow ranges (10:1 to 100:1 turndown ranges available).
· One piece 316/316L S/S Construction for most pressures.
· For use with unique Hoffer high pressure 316/316L or carbon steel mating flange kits,
supplied complete with SAE J429 Grade 8 high yield strength bolts and "O" rings.
· Operate over a wide range of temperatures.
· Sizes 1/4" through 2". Pressure ratings of 3,000, 6,000, 8,000, and 10,000 psi available
for most sizes.
· Larger sizes and pressures available upon request. Contact factory.
|
|
OUTSTANDING FEATURES
· Low cost.
· Outstanding accuracy.
· Provides wide flow ranges (10:1 to
100:1 turndown ranges available).
· Wide variety of process connections
available.
· Wide selection of construction
materials.
· Operate over a wide range of
temperatures and pressures.
|
|
The Hoffer Sanitary Design Turbine flowmeter is accepted as
meeting 3-A Sanitary Standard No. 28-03 for measurement of
process liquids where high sanitary standards are required.
Available in 11 sizes, ¼” to 3” with standard Tri-Clamp™
fittings, covering flow rates for 0.35 to 650 GPM.
|
|
The flowmeter pickup coil senses
the motion of the rotor and converts it
to a pulsing electrical signal which is
of a discrete digital nature. Three
basic pickup types are offered for use
with the MF Series which will satisfy
standard electrical interface
requirements for turbine flowmeters.
|
|
Rototron RRI
The sensor consists of a rotor vane that is rotated by the spped of the flowing medium. The speed of rotation is proportional to the volume flow per unit time. The rotation of the rotor is detektiert by a inductive sensor.
no magnet parts
large wear liberty by high-quality ceramic axle and ceramic bearings
output circuit PNP, NPN or Namur
no straight line in-out necessary
easy measurement of flow rates
inherently safe properties
modular construction with the most versatile connection systems
connections can be plugged and rotated
|
|
|
First developed in 1957, NUFLO turbine meters are both rugged and field-proven. This key product line has grown and developed alongside the requirements of the international oil & gas and process control industries. Today, NuFlo™ turbine meters have an unsurpassed reputation for withstanding severe environmental punishment while maintaining operational and measurement integrity.
|
|
|
FTB790 Series turbine meters with microprocessor-based electronics offer a durable, compact, high precision fluid measurement device, with total and rate indication. Information is clearly displayed on a large 6-digit liquid crystal display with two-point floating decimal for totals from .01 to 999,999. All operations are easily performed with two buttons for simplicity. The basic unit and display are powered by two lithium batteries, providing up to 4000 hours of actual use. Automatic “on” and “off” save battery life. Manual “on” allows view of the display on demand. Cumulative total, batch total and rate of flow are standard. A fifteen-point field calibration curve can be stored in memory. The turbine meter can also be ordered without display electronics. A special pulse output model (FLSC790-ND-P) must be ordered to obtain an open collector current sinking output operated on 9 to 35 Vdc. The output is a square wave pulse with a three-wire connection.
|
|
1MX = Magnetic pickup coil with 1” riser on meter body for mounting of
enclosures and electronics.
1MX3/0=Magnetic pickup coil with 1" riser and enclosure Class I, Groups C & D.
PED-CE =PED-CE mark required for Europe requires the operating temperature and
pressure be given and will be marked on the housing.
CE = CE mark required for Europe.
|
|
The Hoffer Sanitary Design Turbine flowmeter is accepted as
meeting 3-A Sanitary Standard No. 28-03 for measurement of
process liquids where high sanitary standards are required.
Available in 11 sizes, ¼” to 3” with standard Tri-Clamp™
fittings, covering flow rates for 0.35 to 650 GPM.
|
|
Hoffer inline turbine flowmeters are
velocity measuring devices, which is
to say they measure the average
velocity of a fluid flowing through
the body of the meter. See
Illustration 1 for details on the
construction of the Hoffer inline
turbine flowmeter. Mounted within
the body of a Hoffer liquid turbine
flowmeter is a vaned rotor.
|
|
Low Volume Rotating Vane Flowmeter DPL
Low Volume Rotating Vane Flowmeter DPM
Turbine Wheel Flowmeter DRS
Low Volume Rotating Vane Flowmeter DTK
Low Volume Turbine Wheel Flowmeter SFL
Electronic Low Volume Flowmeter KFF
Micro Flow Rate Measuring Transducer LFM
Rotating Vane Flowmeter DRH
Rotating Vane Flowmeter DRG
Turbine Wheel Flowmeter DPE
Turbine Wheel Flowmeter DRB
Rotating Vane Flowmeter/- switch /- counter DF
Rotating Vane Flowmeter/- switch DFT
Paddle Wheel Flowmeter/- counter/- batcher DFB
Turbine Wheel Flowmeter / -counter EDM
High Precision Turbine Wheel Flowmeter PEL
Turbine Wheel Flowmeter TUV
Turbine Wheel Flowmeter TUR
Ring Piston Counter DRZ
Oval Gear Wheel Flowmeter OVZ
Screw-Spindle Flowmeter OME
Gear Wheel Flowmeter, aluminum KZA
Screw-Spindle Flowmeter OM..
Gear Wheel Fllwmeter DZR
Universal Indicator ADI
Digital Panel Indicators DAG
Universal Batch Controller ADI-Z
Industrial Batcher, Counter, Flowindicator DAG-AXI
Frequency Transmiter FMU
|
|
|
|
|
|
VOLUTRONIC® - that means high-dynamic, precise volume and flow measurements, evaluated according to the application - from a simple display unit to an intelligent micro-controller solution.
The basis for all this is the KRACHT gear type flow meter. This flow measure product presents the successful result of our long-experienced engineers. The sophisticated tooth system geometry in connection with application-specific bearings are made for the gear type flow meter being an absolute "All-rounder". The gear type flow meter covers a wide medium range: to go from hydraulic oil to printing ink, from gear grease to water based lacquer. The highly-efficient KRACHT electronics take the signals given by the gear type flow meter and ensures that processes are exactly monitored, regulated and controlled.
For example, in process technology as micro-controller for metering and mixing systems, or as flexible measuring and recording electronics for differentiated applications in test bench technology. KRACHT know-how guarantees functional solutions - standardized and optimized for application.
|
|
|
|
|
|
...disturbance insensitive and long-lived!

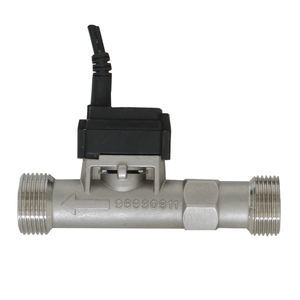

The turbine flow sensors of the product line Turbotron are sensors for flow rate measurement or dosing applications for liquids. Through its especially compact type, its very wide measuring range and its convincing precision of measurement, it has an almost unlimited application.
Function
The liquid flowing into the Turbotron is divided by the guiding blades in four split beams. These hit the rotor from four directions and put it in motion. The uniform loading of bearing from four sides causes the forces to cancel themselves out for the most part and wear is reduced to a minimum.
The extremely hard bearing materials, sapphire and hard metal, ensure in addition an extraordinary life expectancy.
The rotor rotation rate is now converted into an electrical pulse signal (frequency):
VTH and VTP are equipped with rotors which are fitted with magnets. A Hall effect sensor recognizes the rotation of the rotor.
VTI has stainless steel pins in the rotor. An inductive proximity switch detects the rotor rotation.
In both cases, a flow-proportional frequency signal (square wave signal) is available.
|
|
|
First developed in 1957, NUFLO turbine meters are both rugged and field-proven. This key product line has grown and developed alongside the requirements of the international oil & gas and process control industries. Today, NuFlo™ turbine meters have an unsurpassed reputation for withstanding severe environmental punishment while maintaining operational and measurement integrity.
|
|
The Hoffer Sanitary Design Turbine flowmeter is accepted as
meeting 3-A Sanitary Standard No. 28-03 for measurement of
process liquids where high sanitary standards are required.
Available in 11 sizes, ¼” to 3” with standard Tri-Clamp™
fittings, covering flow rates for 0.35 to 650 GPM.
|
|
|
|
|
|
SIKA’s VTR turbine flow sensor allows you to determine precisely, dependably and easily the flow rates of different liquids, such as water and other low viscosity liquids, undert he most severe conditions. The VTR sensor is particularly robust and, due to the wide range of nominal diameters and five different pick-ups, can cope with even the most severe conditions.
How it works
The VTR sensor consists of the measuring turbine and a pick-up mounted on the outside. The liquid flows into the measuring turbine and causes the rotor to move. Due to the characteristic internal diameter the speed of rotation is directly proportional to the flow rate. The moving rotor blades are detected by the pick-up and this is converted into a pulsed signal proportional to the flow rate. The characteristic variable is the K-factor (pulses per litre) which is specific to each measuring unit, is determined by calibration and specified on the name plate. A five point calibration report can be supplied on request.
|
|
We are proud that you have selected a Hoffer Turbine Mini-
Flowmeter, the finest precision flow transducer on the market.
The Hoffer MF Series of Mini-Flowmeters are designed to meet the
need for a high quality low flow measurement device for service in
low to moderate viscosity clean liquids and for gas applications.
|
|
Hoffer flow control
Controls turbine flowmeters
Of all the various types of flow transducers available to industry today. None are so universally applicable as turbine flowmeters. They continue to be the most common way to measure flow electronically and have the ability to measure available upon request offering detailed, technical information.
|
|
|
|
