- Surface and flush mounted doors
- concealed hinges
- torque and/or lift-off hinges
- SNAP-LINE tool-less assembly hinges
- 90°, 120°, 180° or 270° maximum degree opening angles
|
|
No. 6521-SSP
304 Stainless Steel. 5" long x 1-1/2" wide strap. Weight: .72 lbs.
No. 6511-SSP
304 Stainless Steel. 3 1/2" long x 1 1/2" wide strap. Weight .59 lbs.
Other hinges available in different sizes, finishes, and material types, please contact Eberhard for more information.
|
|
hinges in plastic
Metal zippers
Angular screws
Glue support
|
|
- Material: stainless steel body 1.4401; stainless steel drawbolt.
- Maximum angle of rotation 270°.
|
|
CONSTANT TORQUE HINGES
- Hold panels fully closed, fully open, or partially open at any desired angle
- Provide smooth, consistent operation throughout the entire range of motion
- Wide variety of sizes/torque options satisfy applications ranging from portable phones and computers to large enclosures
|
|
Hinge with integrated rotary damper. This feature enable soft-closing or soft-opening motion in order to prevent excessive shocks to sensitive equipement and avoid injury due to uncontrolled door opening.
Ideal for flaps, covers or machine doors.
|
|
CSH-63 DETENT HINGE (WITH OR WITHOUT DAMPER)
Detent hinge with built-in damper as an option.
Detent will hold lid in open or closed position without secondary support, and optional damper will provide soft closing.
Operating angle: 100 degrees
(Detent at both 0 and 100 degrees)
Detent holding force: 10.2 kgf-cm (8.8 lbs-inch)
Damper torque range: 10.2 to 25.5 kgf-cm (9 to 22 lbs-inch)
Material: Zinc Alloy
Please visit our website for more detent hinges or view our PDF Catalogues here (#152, page 177).
sugatsune.com sugatsune.co.jp sugatsune.net
|
|
HINGE STAINLESS STEEL
Japanese manufacturer, Sugatsune, has a wide range of Industrial and Furniture hinges.
Please visit our websites or see our PDF catalogues here.
sugatsune.com, sugatsune.net (industrial only), sugatsune.co.jp
|
|
|
Normont offers a wide assortment of high quality hinges. We stock hinges in all styles, gauges, sizes and materials. All of our hinge products must pass through our demanding ISO 9001:2000 inspection process. We have the capacity to manufacture custom products efficiently to meet your special requirements.
|
|
|
Bett Sistemi designs its “Original BETT Sistemi” STANDARD COMPONENTS for application on machines and equipment for the industry. In particular, Bett Sistemi designs, manufactures and markets the B Hinges line (available in aluminium and technical polymer). As well as forming an integral part of the systems supplied by BETT Sistemi, these products can be adopted on the entire machine because of their functionally and design.
|
|
EMKA makes over 100 different hinges, each has a unique combination of functional features and installation methods.
Selection is based both on the features the end user needs and wants and the installation method that is most suitable and cost effective for the enclosure manufacturer. Hinges can be separated into those that work with the two door types: Flush or Surface mounted (Projected).
EMKA offers a wide range of products for sheet metal enclosures:
- latches,
- locks,
- swing handles,
- machine handles,
- hinges,
- stainless steel hardware,
- gaskets and edge protecting profiles, aluminium windows and doors, HF-protected hardware, etc..
Integrated control system for server racks or cabinet monitoring (access, air conditioning, trouble, theft), network integration, plug-and-play modules for 19” racks, sensors.
|
|
|
|
|
|

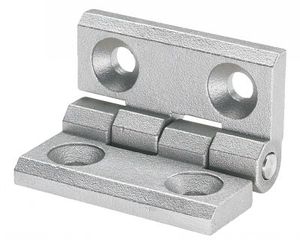

Die-cast Aluminum Combi Hinge 25, detachable and non-detachable
Die-cast Aluminum Combi Hinge 30, detachable and non-detachable
Die-cast Aluminum Combi Hinge 35, detachable and non-detachable
Die-cast Aluminum Combi Hinge 40, detachable and non-detachable
Die-cast Aluminum Combi Hinge 45, detachable and non-detachable
Die-cast Aluminum Combi Hinge 50, detachable and non-detachable
Die-cast Aluminum Combi Hinge 60, detachable and non-detachable
Die-cast aluminum hinge, detachable and non-detachable
Internal,- and Semi-internal Hinge
Die-cast Zinc Combi Hinge 40 and 45, non-detachable
Combi Hinge with Locking Lever, non-detachable
Die-cast Zinc Hinge 30 with Oblong Holes
Die-cast Zinc Hinge 40 with Oblong Holes
Die-cast Zinc Hinge with Locking Lever
Light Metal Hinge, non-detachable
Metal Hinge, non-detachable
Mini Hinge, detachable
2D-Hinge, non-detachable
Metal Hinge 40 x 38 with Constant Friction, non-detachable
Metal Hinge 58 x 51 with Constant Friction, non-detachable
Positioning Hinge
Customise
|
|

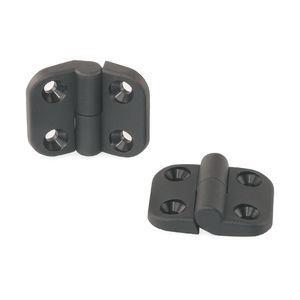

ART. O400
HINGE WITH THROUGH HOLES
MATERIAL:
Reinforced polyamide.
Oils and greases resistant.
SURFACE:
Satin.
COLOUR:
Black (RAL 9011).
MAIN INSERT:
Zinc plated steel pin.
HOLE:
Through hole obtained by moulding the plastic.
Seat for countersunk screws DIN 7991/UNI 5933.
SPECIAL REQUESTS:
• It is possible to supply colours as shown in the table
at page 15, on request and for quantities.
|
|
Plastic Combi Hinge 25, detachable and non-detachable
Plastic Combi Hinge 30, detachable and non-detachable
Plastic Combi Hinge 35, detachable and non-detachable
Plastic Combi Hinge 40, detachable and non-detachable
Plastic Combi Hinge 45, detachable and non-detachable
Plastic Combi Hinge 50, detachable and non-detachable
Plastic Combi Hinge 60, detachable and non-detachable
Combi Hinge with Locking Lever, non-detachable
System Hinge 30
System Hinge 40
System Hinge 30 with Positioning Function
System Hinge 40 with Positioning Function
System Hinge 30 with Adjustable Friction
System Hinge 40 with Adjustable Friction
Plastic Hinge 20 Mini
Plastic Hinge 20
Light Plastic Hinge 35
Plastic Hinge 32 x 60
Plastic Hinge, Double
Heavy-duty Plastic Hinge
Customise
|
|
LSK STAINLESS STEEL HINGE
316 Stainless Steel Construction.
Satin Stainless Steel Finish.
Several sizes available from 51mm to 152mm height.
Please visit our website or our PDF catalogues here (catalog #152, page 167) for more information about this and other butt hinges.
sugatsune.co.jp (Sugatsune Japan)
sugatsune.com (Sugatsune America)
sugatsune.net (Sugatsune America- Industrial)
|
|
Stainless Steel Combi Hinge 20, non-detachable
Stainless Steel Combi Hinge 25, detachable and non-detachable
Stainless Steel Combi Hinge 30, detachable and non-detachable
Stainless Steel Combi Hinge 40, detachable and non-detachable
Stainless Steel Combi Hinge 45, detachable and non-detachable
Stainless Steel Combi Hinge 60, detachable and non-detachable
Stainless Steel Hinge, non-detachable
Stainless Steel Hinge, detachable, Right and Left Application
Customise
|
|
SFTH - STAINLESS STEEL TORQUE HINGE
Designed for holding lid/door in position.
Stainless Steel construction for corrosive environments.
Operating Temperature: -20C to 60C (-4F to 140F)
Body: 304 Stainless Steel and 301 Stainless Steel
Shaft: 303 Stainless Steel
5 sizes/torque ranges available from 5 to 58 kgf-cm
|
|
