worm gear reducer / cylindrical / orthogonal / shaft-mounted
worm gear reducer
SW, SWM series

Torque: 300 Nm - 5,300 Nm

... dedicated case for on-shaft and flange mounting with the same well-balanced worm as the EW Series, contributing to equipment simplification. In addition to a selection between solid and hollow output ...

planetary gear reducer / coaxial / high-torque / high-torque
planetary gear reducer
S series

Torque: 34,000 Nm - 2,500,000 Nm

... Series" offers several versions of output, including hollow cylindrical for shaft-mounting, female splined, male cylindrical and shaft with male spline. Also available are input models ...

epicyclic gear reducer / worm / bevel / spur
epicyclic gear reducer
S series

Gearboxes for use in potentially explosive atmosphere ATEX-compliant gearboxes in categories 2G and 2D are available, according to the classification set forth by the European Directive 94/9/CE, applying ...

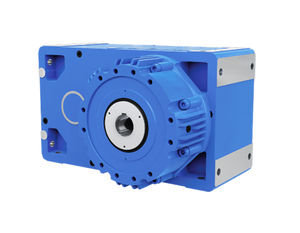

single-screw extruder gearbox / gear train / parallel-shaft / high-performance
single-screw extruder gearbox
HDPE series

Torque: 5,000 Nm - 63,250 Nm
Power: 5 kW - 1,090 kW

The HDPE Extruder Gearbox Series has been engineered for single-screw extruder drives, an improvement from the HDP heavy-duty series. It features a forward-mounted orientation to the nodular cast iron case, and a high-performance ...

bevel gear reducer / helical / right-angle / low-noise
bevel gear reducer
HDO series

Torque: 8,990 Nm - 209,900 Nm

... HDO - Bevel helical gear reducer is a top of the line product designed by Bonfiglioli. It comes in two versions either a single or a double extension. It also comes with a keyed hollow ...

helical gear reducer / parallel-shaft / hollow-shaft / shaft-mounted
helical gear reducer
TA series

Torque: 150 Nm - 16,000 Nm
Power: 1.1 kW - 156 kW

The Bonfiglioli TA series is a shaft mounted reducer used in material handling industries such as quarrying and mining. This reducer has an optimum dependability and low maintenance as ...

helical gear reducer / parallel-shaft / hollow-shaft / for shafts
helical gear reducer
Poulibloc - ATEX zone 22

Torque: 100 Nm - 10,000 Nm
Power: 0.25 kW - 55 kW

... Poulibloc ATEX zone 22 is designed specifically for use in environments with potentially explosive dust. The model is a hollow shaft geared motor with a tapered bush system, that may be mounted in various ...

helical gear reducer / parallel-shaft / hollow-shaft / for shafts
helical gear reducer
Poulibloc - ATEX zone 21

Torque: 100 Nm - 10,000 Nm
Power: 0.25 kW - 55 kW

These hollow shaft geared motors with taper bush are designed to operate in potentially explosive dust atmospheres (ATEX zone 21 certified). These geared motors use a shaft mounting that ...

shaft-mounted gearbox / helical / parallel-shaft / low-backlash
shaft-mounted gearbox
g500-S

Torque: 19,000 Nm

... and a ratio of up to i=495. Advantages: Slimline design saves precious installation space for the machine Solid shaft, hollow shaft and shrink disc for direct integration into the ...

compact gearbox / helical / parallel-shaft / low-backlash
compact gearbox
GFL

Torque: 11,615 Nm

The GFL shaft-mounted helical gearbox is a compact device promising impressive strength, efficiency and reliable features. The device mainly consists of three phase AC and servo motors collaboration. ...

bevel gearbox / right-angle / compact / hollow-shaft
bevel gearbox
GKR

Torque: 450 Nm

... right-angle gearbox for use in low to medium torque applications is characterized by its high efficiency, lightweight and wear-free gear teeth. These motors are absolutely ideal for category 2 applications. ...

bevel gear reducer / helical / right-angle / high-precision
bevel gear reducer
GKS

Torque: 190 Nm - 11,639 Nm
Power: 0.12 kW - 45 kW

... along with high permissible torques as well as closely stepped speed ratios. It also features a 3 and 4 stage gearbox option with a hollow shaft with a keyway or shink disc. It is also ...

worm gear reducer / helical / right-angle / low-noise
worm gear reducer
GSS

Torque: 180 Nm - 1,250 Nm
Power: 0.12 kW - 15 kW

GSS helical-worm gearbox is equipped with a hollow shaft that accommodates a keyway or shrink disc and a foot or flange mounting. It is designed with multi-functional purposes considering ...

spur pinion gear reducer / orthogonal / hollow-shaft / for asynchronous motors
spur pinion gear reducer
RH, RA series

Torque: 8 Nm - 20 Nm

... integrated to motors with its compact design contributing to its space-saving efficiency. It is placed perpendicularly to the motor shaft for easy maintenance with frame size of 80-90 mm.

spur gearbox / parallel-shaft / hollow-shaft / two-stage
spur gearbox

Torque: 1,040 Nm
Power: 100 kW

With Lightweight Convincing Enabling trains to move quickly and efficiently through Boston: ZF’s two-stage hollow-shaft spur gear drive for the “Orange Line” and “Red Line” metro trains. ...

hollow-shaft gearbox / helical / parallel-shaft / aluminum
hollow-shaft gearbox
E-Rail SH 11 F-N

Innovation and low weight Several hundred new railcars are being equipped with the innovative lightweight ZF gearbox: E-Rail SH 11 F-N. Thanks to its aluminum housing, it is 15 percent lighter than the products which are currently available ...

spiral bevel gearbox / right-angle / high-precision / low-backlash
spiral bevel gearbox
WPSFN

Torque: 22 Nm - 1,650 Nm

... surface qualities. The shortest right angle precision gearbox with integrated hollow shaft provides you with new structural solutions.

spiral bevel gearbox / right-angle / high-precision / low-backlash
spiral bevel gearbox
WGN

Torque: 22 Nm - 800 Nm

WGN Precision right angle gearbox Our WGN is a hollow-shaft right angle gearbox that operates with particularly low noise levels. At the same time, the spiral teeth ...

bevel gear reducer / helical / parallel-shaft / high-speed
bevel gear reducer
GX series

Torque: 132,000 Nm
Power: 0 kW - 1,710 kW

... Helical Gear Units for Extruders exhibit universal mounting capabilities, standard minimal-speed shafts manufactured out of steel materials, and modifiable screw shank holes. They feature integrated gear ...

worm gear reducer / orthogonal / high load capacity / compact
worm gear reducer
4747, 4749, 4751, 4755

Torque: 1 Nm - 4 Nm

The Model 4747 is designed with a plastic friction bearing, and an input, placed on the gear's side. The worm gear is designed from a die-cast housing, and may come with a bronze bearing (for special ...

worm gear reducer / orthogonal / compact / hollow-shaft
worm gear reducer
4748, 4750, 4751, 4752, 4767

Torque: 1 Nm - 4 Nm

... is a compact worm gear by Ketterer. The input is located on the small side of the gear. The gears are especially useful for manual operations. It is equipped with a ratio of 1:1, ...

bevel gear reducer / orthogonal / hollow-shaft / modular
bevel gear reducer
3869, 3870, 3871, 3872

Torque: 10 Nm

Angular Gear, defelection gear, power devider and front gearing for electric motors, e.g. for blinds, actuator for special machinery. - Ratio 1:1 - Housing made of zinc die-casting - Harderned, bearíng ...

cycloidal gear reducer / right-angle / parallel-shaft / low-backlash
cycloidal gear reducer
RD-C series

Torque: 98 Nm - 3,136 Nm

... options: The efficient and extremely precise cycloidal gears are ideal for numerous applications, from machine tools to robotics systems and woodworking machinery. We deliver the hollow shaft ...

hollow-shaft gear reducer / cycloidal / coaxial / high-precision
hollow-shaft gear reducer
RV-C series

Torque: 98 Nm - 58,800 Nm

Powerhouses with an open centre RV-C gears are your ideal choice for very demanding applications. They have a hollow shaft through which power supply cables, drive shafts, ...

spiral bevel gearbox / orthogonal / low-backlash / hollow-shaft
spiral bevel gearbox
Z series

Torque: 11 Nm - 3,600 Nm
Rotational speed: 0 rpm - 6,000 rpm

... manufactured by Redex, and is a right-angle spiral bevel gear reducer which provides 7 various diameters, 6 model types, and 9 ratios. It has different input-output arrangements , which includes solid ...

spiral bevel gearbox / orthogonal / low-backlash / for heavy loads
spiral bevel gearbox
R series

Torque: 0 Nm - 25,000 Nm
Rotational speed: 0 rpm - 6,000 rpm

... compact shaft or hollow bore choices. The series has an efficiency rating of 95 – 98 %, and maximum rotation speed up to 6000 RPM. The units have a heavy-duty construction, and are ATEX compatible. ...

coaxial gear reducer / compact / hollow-shaft / industrial
coaxial gear reducer
RAM-MSD series

Torque: 0 Nm - 3,500 Nm
Rotational speed: 0 rpm - 12,000 rpm

The RAM-MSD is a two-speed gearbox engineered by Redix. It is suitable for use in in-line integration between a water cooled motor and a spindle. The unit is constructed in a compact and lightweight structure, based ...

worm gear reducer / precision / low-noise / high-performance
worm gear reducer
JRSTD..-U Series

Torque: 2.6 Nm - 2,670 Nm
Power: 0.06 kW - 15 kW

JRSTD..-U Series Worm Gears Model:25~150 Ratio:7.5~100 Input power:0.06~15kW Output torque:2.6~2670N.m

See the other products
Hangzhou JIE Drive Technology Co., Ltd
worm gear reducer / precision / low-noise / high-performance
worm gear reducer
JRST..-W Series

Torque: 2.6 Nm - 2,670 Nm
Power: 0.1 kW - 15 kW

JRST..-W Series Worm Gears Model:25~150 Ratio:7.5~100 Input power:0.1~15kW Output torque:2.6~2670N.m

See the other products
Hangzhou JIE Drive Technology Co., Ltd
worm gear reducer / precision / hollow-shaft / with flange
worm gear reducer
JRSTDB Series

Torque: 2.6 Nm - 2,670 Nm
Power: 0.06 kW - 15 kW

JRSTDB Series Worm Gears Model:25~150 Ratio:7.5~100 Input power:0.06~15kW Output torque:2.6~2670N.m

See the other products
Hangzhou JIE Drive Technology Co., Ltd
worm gear reducer / precision / low-noise / high-performance
worm gear reducer
JRST Series

Torque: 2.6 Nm - 2,670 Nm
Power: 0.1 kW - 15 kW

JRST Series Worm Gears Model:25~150 Ratio:7.5~100 Input power:0.1~15kW Output torque:2.6~2670N.m

See the other products
Hangzhou JIE Drive Technology Co., Ltd
planetary gearbox / high-precision / low-noise / high-performance
planetary gearbox
JRP Series

Torque: 22,000 Nm - 1,200,000 Nm
Power: 0.4 kW - 5,970 kW

JRP Series Planetary Gear Units Model:9~30 Ratio:25~4000 Input power:0.4~5970Kw Output torque:22000~1200000N.m

See the other products
Hangzhou JIE Drive Technology Co., Ltd
planetary gearbox / coaxial / low-backlash / precision
planetary gearbox
PL40

Torque: 20 Nm
Rotational speed: 4,500 rpm
Power: 100 W

... include Carburized and grinded spur gearing, in extreme hardness. as low as 5/7 arcmin backlash for most of models Input shaft with dynamic balanced set collar clamping system high capacity output bearings Moreover,PL ...

planetary gearbox / coaxial / precision / for food industry machinery
planetary gearbox
PF series

Torque: 0 Nm - 20,000 Nm
Rotational speed: 0 rpm - 10,000 rpm

Our PF Series is PL Series' Upgraded version. It can be connected directly to your installation without the need for an intermediate flange. The large deep groove ball bearing at the output can absorb large axial and radial forces. In ...

planetary gear reducer / cylindrical / coaxial / hollow-shaft
planetary gear reducer
EP3 series

Torque: 0 Nm - 160,000 Nm
Rotational speed: 0.55 rpm - 3,500 rpm
Power: 0 kW - 250 kW

Epicyclic gears with output torques from 600 Nm. Cylindrical, fluted and hollow output shafts with necking. The most competitive planetary gear on the market.

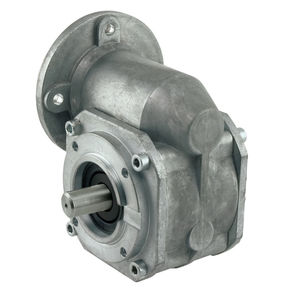

worm gear reducer / right-angle / hollow-shaft / for motors
worm gear reducer
SC 401

Torque: 20 Nm - 30.1 Nm
Rotational speed: 0 rpm - 4,500 rpm

General: Single-stage worm gear For use in combination with our motors. Lifetime grease lubrication Housing: Zinc diecast Mounting on the drive side Output: Power deviation 90°, second shaft end possible Self ...

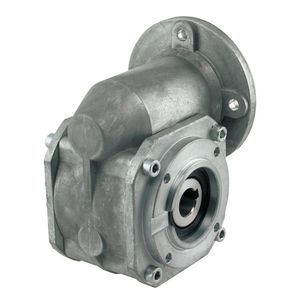

worm gear reducer / right-angle / hollow-shaft / for motors
worm gear reducer
SC 401 H

Torque: 20.1 Nm - 30.1 Nm
Rotational speed: 0 rpm - 4,500 rpm

... worm gear For use in combination with our motors. Lifetime grease lubrication Housing: Zinc diecast Mounting on the drive side Output: Power deviation 90°, second shaft end possible Self locking on higher ...

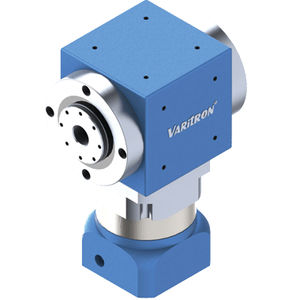

planetary gearbox / right-angle / high-precision / hollow-shaft
planetary gearbox
RAM-H series

Torque: 44 Nm - 1,500 Nm
Rotational speed: 2,200 rpm - 5,500 rpm
Power: 100 W - 11,000 W

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd

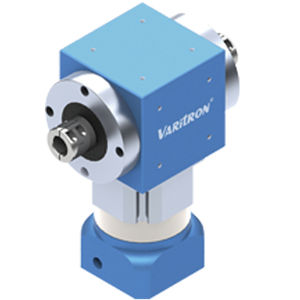

planetary gearbox / right-angle / high-precision / hollow-shaft
planetary gearbox
RAM-F

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd
planetary gearbox / right-angle / high-precision / hollow-shaft
planetary gearbox
RAH-H series

Power: 100 W - 11,000 W

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd
planetary gearbox / right-angle / high-precision / hollow-shaft
planetary gearbox
RAH-D series

Power: 100 W - 11,000 W

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd
planetary gearbox / right-angle / low-backlash / high-precision
planetary gearbox
RAH-F

- High Precision Gear - The planetary gear and sun gear are manufactured from high quality Ni-Cr-Mo alloy steel. Precision machined and carburized, then for precision tooth grinding or ...

See the other products
Varitron Eng. (Taiwan) Co. Ltd
cycloidal gear reducer / coaxial / hollow-shaft / for pulley drives
cycloidal gear reducer
Circulute 3000 Pulley

... cycloidal gear reducer that is configured to fit Circulute series and is designed in a pulley style type that provides a small foot less drive function. This style is constructed in 2 various assembly ...

planetary gear reducer / bevel / right-angle / precision
planetary gear reducer
H series

Torque: 40 Nm - 560 Nm
Rotational speed: 2,200 rpm - 4,200 rpm

PHT VERTEX PRECISION produces the widest range of spiral bevel gearboxes’ models, ratios, options, and special designs available. SpiralGearboxes High Thermal Dissipation by Aluminum material; Low Backlash for Outstanding Repeatability; Flexible ...

spur pinion gear reducer / parallel-shaft / compact / industrial
spur pinion gear reducer

Torque: max 200000.0 Nm

... accept any compromises specifically in these important components and decide to use Koellmann Gear high-quality gears instead. Extruder gears by Koellmann Gear have proven ...

spur pinion gear reducer / parallel-shaft / for cranes / industrial
spur pinion gear reducer

Torque: 5,000 Nm - 300,000 Nm
Rotational speed: max 3000.0 rpm

... its entire gear demand with Koellmann gears. Best standardisation from compact, one-piece universal housings with maximum flexibility in builds, connections and accessories are characteristic for the ...

How to choose this product

hollow-shaft-gear-reducer

A hollow-shaft gear reducer is a reducing gear whose input or output is bored out. A key links the rotating parts, one within the other.

Applications

Reducing gears are very widely used for the mechanical transmission of motion. They are found in automobile and motorcycle transmissions, machine tools, variable speed drives and gear motors (a motor combined with a reducing gear), among other applications.

Advantages

- compact
- direct-drive
