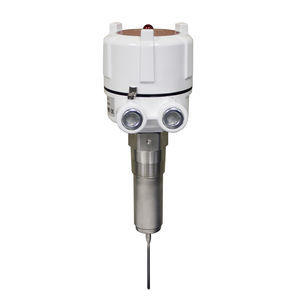

BinMaster vibrating rods feature a unique single-rod probe design with a sword-shaped blade that prevents bridging of material, making them superior to typical “tuning fork” designs by allowing material to easily flow by, preventing build up on the blade. Features include a self-cleaning sensor, switch selectable high/low fail-safe, and an auto sensing power supply which can accommodate 20 – 250 volts AC/DC. They feature three sensitivity adjustments – high for light and fluffy materials, medium, and low for heavier materials or materials that may tend to cling to the vibrating rod. They are easy to install, mounting to the vessel via a standard 1-1/2 inch NPT mounting socket and require no calibration. Remote electronics via a point level alarm panel are available to alert to bin levels for four up to 24 individual sensors.
The VR-21 is BinMaster’s standard piezoelectric driven vibration type point level switch, which has an insertion length of 7.37 inches. It is suitable for both top and side mount applications and is ideal for a wide variety of dry and bulk powder materials including extremely light, fluffy materials. The VR-41 is designed for use with a variety of heavy, medium and light materials ... including extremely light, fluffy materials. Intended for top mount locations, it is available in lengths from 13 inches up to 13 feet. The VR-51 extended vibrating rod uses a steel-rope reinforced cable and allows for insertion lengths from 19 inches up to 19 feet and is intended for top mount applications.
|
|
The vibrating rod of VEGAVIB is actuated via piezoceramic elements. If the vibrating rod is immersed, the amplitude will be damped. The amplitude change is processed by the integrated oscillator and converted into a switching command. Due to the rod design, it is nearly impossible for material, e.g. granules, to get wedged in. Typical applications are overfill or dry run protection systems, e.g. in flour, milk powder, sand, cement, plastic granules, styrofoam and down feathers. Even products with a specific gravity up to 0.015 g/cm³ (15 g/l) can be measured. An adjustment with medium is not necessary as the mounting location and the granulation size do not affect the measurement.
Advantages
- Virtually independent of product characteristics
- Optimum rod configuration for solids
- Easy cleaning
Applications
- Level detection of solids
|
|
|
The Pulsarpoint 200 series range of point level measurement systems offers the very latest state of the art technology applied to the well respected vibrating blade principle of operation. All units in the range are manufactured to the highest standard from 316 solid stainless steel for maximum strength durability and corrosion resistance. Series 200 provides highly reliable, fixed point level indication or control with a repeatability of 1mm or better. Versions are available to measure solids and slurries with relay output. The Pulsarpoint 200 series uniquely combines solid rugged construction with high sensitivity to produce maximum reliability. The unique blade design allows 'tip sensitive' control and the unit does not react to troublesome material build up on vessel walls. Standard units may be extended using fixed or flexible extensions to suit the application.
|
|
Applications:
- Detection of high, intermediate or low levels
- Non sticky powders and granulars (<10mm)
Advantages:
- No moving parts
- Large self cleaning single blade
- Easy to install
- Adjustable sensitivity
- Multiple probe lenghts
- Multiple products can be detected in the same silo
- Minimum material density : 0.03
- Maximum working pressure : 10 bars
- Die cast aluminium
|
|
| ... products without technical information |
| |
Tiltswitch Level Indicator
Level indicator for bins & silos
Suitable for almost all granular materials
Alarm is triggered when material build-up tilts sensor by approx 15°
Sensor cable adjustable up to 5m
|
|
PF Pendulum level indicator
Full indicator for powdery, granulated and grainy bulk goods
- grain size up to 100 mm and bulk weight from 0.3 t/m³ ... 3.0 t/m³
- preferred for mechanically filled silos and containers for example with screw conveyors, feeders, elevators etc.
They are used for controlling the filling level in silos and containers. The pendulum level indicator guarantees absolute reliability and safe function even under extreme conditions.
|
|
Applications :
- Detection of high, intermediate or low level
- For all products and silos
Advantages :
- All types of storage vessels
- No moving part
- Easy to install
- Adjustable sensitivity
- Detection of sticky and clogging products
- Adjustable time delay from 0 -1 hour
- Multiple probe lengths
- Maximum working pressure : 10 bars
- High temperature version : 200°C
- Stainless steel probe and teflon insulation
|
|
|
|
|
|
The BinMaster 3DLevelScanner utilizes a 2-dimensional array beam-former that sends very low frequency, dust-penetrating acoustical pulses and receives echoes of the pulses from multiple points on the surface of the material in the bin. The 3DLevelScanner offers multiple point accuracy as the device takes measurements from multiple points versus a single point, thereby taking into account variations that can occur on material surfaces. Standard ultrasonic, radar or cable-based units measure just one point and determine a single distance, while the 3DLevelscanner takes measurements from multiple points within the bin, ensuring greater accuracy.
The low frequency technology penetrates dust, making it suitable for environments where ultrasonics and radar may fail. It is unaffected by material type and is appropriate for powders, granulates, pellets and other solids with no need for special calibration. Employing non-contact measurement, it is suitable for foods, chemicals and pharmaceuticals. There is no risk of moving parts coming into contact with bin material. It offers long measurement range of up to 220 feet and is appropriate for tall bins (taller than they are wide). Three independent transducers promote accuracy and system redundancy, making it one of the most advanced technologies available.
The 3DLevelScanner provides the user a scaled 4-20mA output that can represent either the product or headroom volume. Using an optional HART or RS-485 connection, the user can also connect to the scanner using the 3DLevelManager software. This advanced software allows the user to view real-time data from the scanner and make configuration changes remotely from a PC.
|
|
The APM 3DLevelScanner™ is an innovative new family of devices that continuously measure level, volume and mass of materials inside a silo or an open bin.
The 3DLevelScanner S measures practically any kind of solid material, stored in
practically unlimited variety of containers, including large open bins, bulk solid storage rooms and warehouses.
The 3DLevelScanner is unaffected by conditions such as dust and filling noises and can and have a measuring range of up to 70m.
|
|
APM's 3DLevelScanner provides an innovative measurement method that takes the guesswork out of measuring the level, volume and mass of materials inside a silo or open bin by generating 3D maps of the contents.
The ultimate true level measurement.
- non-contact measurement.
- unaffected by conditions such as dust and filling noises.
- 3D mapping of the content surface.
- measures an unlimited variety of containers including large silos,
large open bins, bulk solid storage rooms and warehouses.
- measuring range up to 70 m.
- dust-Ex approval.
The 3DLevelScanner™ employs an array of microphones that measures and maps the entire surface area, and a patented algorithm that processes this information and generates a 3-dimensional map.
This unique device can then accurately determine the volume and mass of material, enabling an unrivaled degree of process measurement and inventory control.
|
|
Continuous measurement and point level detection
Endress+Hauser offers an extensive range of systems for level easurement
or point level detection.
In solids or liquids - our level measurement principles meet your needs:
- Radar,
- guided radar,
- ultrasonics,
- vibration systems,
- hydrostatic pressure,
- differential pressure,
- capacitance as well as conductive probes,
- electromechanical level procedures,
- external ultrasonics,
- microwave barriers and
- paddle switches.
|
|
The 3DLevelScanner can measure the level, volume and mass of materials in new applications that prior technology could not reach.
It measures practically any kind of material stored in practically an unlimited variety of containers, including large open bins, bulk solid storage rooms and warehouses.
3-dimensional mapping delivers true and absolute surface level with taking care of loads that randomly form over time inside silos.
|
|
The APM 3DLinkPro provides state-of-the-art GSM/GPRS wireless communications with all APM products. I significantly enhances customer service by providing the following key benefits:
- Easy software upgrades
- Remote analysis of data
- Remote diagnosis of system performance
- Remote system configuration
The possibility of such remote access is especially adventageous in situations where traditional wiring would require considerably more work and expense - where units are installed far from home base and/or over a broad terrain.
|
|
For measuring ranges up to 70 m, VEGA now has an optimised radar technology in its program. Due to its increased receiver sensitivity (factor 40), VEGAPULS 68 delivers reliable measured values in spite of higher signal damping in solids.
Non-contacting radar measurement delivers reliable levels in dusty environments, like in storage facilities for building materials. Also in the food processing industry, in steel production as well as for level measurement of powders and granulates in the chemical industry, the extended measuring range has proven to be extremely effective. Adjustable fl anges allow the eduction of false refl ections and the optimisation of the useful echo.
All advantages in an overview
- non-contact measurement
- unaffected by dust generation
- not infl uenced by fi lling noise
- high dynamic range of the sensor
- measuring range up to 70 m
- antenna cleaning by cooling air
- dust-Ex approval
|
|
For measuring ranges up to 70 m, VEGA now has an optimised radar technology in its program. Due to its increased receiver sensitivity (factor 40), VEGAPULS 68 delivers reliable measured values in spite of higher signal damping in solids.
Non-contacting radar measurement delivers reliable levels in dusty environments, like in storage facilities for building materials. Also in the food processing industry, in steel production as well as for level measurement of powders and granulates in the chemical industry, the extended measuring range has proven to be extremely effective. Adjustable fl anges allow the eduction of false refl ections and the optimisation of the useful echo.
All advantages in an overview
- non-contact measurement
- unaffected by dust generation
- not infl uenced by fi lling noise
- high dynamic range of the sensor
- measuring range up to 70 m
- antenna cleaning by cooling air
- dust-Ex approval
|
|

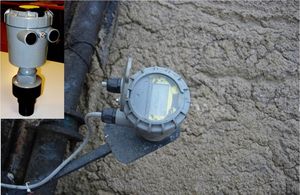

The Mono-Micro models are mono-block, 2-wire Ultrasonic level sensors. The leading model is MonoScan with an exceptional range of 15 meters for its category. The MicroScan model is a 5 meter range product with an unbeatable price offering.
Monoscan
* Extended range of 0.25 to 15 meter (0.8ft to 49ft)
* For measuring Liquid, Open channel flow and Solids
* Integral LCD display, keypad
* 4-20mA output
* Automatic compensation for different environments
* Approved for installations in hazardous areas (Ex)
* Simple to install and configure
* Direct installation on tanks, vessels and reactors
MicroScan
* For small tanks and calm liquid environments
* Maximum range of 5 meters / 16ft (liquid) (extended range option)
* 4-20mA output
* Modbus over RS-485 option
* Optional four-digit LCD and remote display (80 meters)
* Direct installation on top of tanks
* Hand held programming unit
* Perfect for horizontal diesel oil tank measurements
* Fast setup, configuration and commissioning
|
|
GuardScan50 is a not-contact continuous, ultrasonic level sensor based on our high performance SmartScan50 equipment.
GuardScan50 implements an innovative software algorithm for detecting fuel theft from a tank and for identifying tempering activities with the sensor.
·GuardScan50 makes the most of your investment in a security system by adding new features to it
·GuardScan50 interfaces any zone-based security systems supporting dry-contacts inputs
·GuardScan50 provides four new “virtual-zone” alerts:
1. Fuel theft
2. Stolen sensor
3. Full Tank
4. Empty Tank
·GuardScan50 exploits existing communication links whether wired, wireless, dialup, RF or cellular
·GuardScan50 is easy to configure using any PC type platform
See SmartScan50 data sheet for additional technical information and call for pricing information.
|
|
SolidAT provides practical cost effective solutions for wide area monitoring of assets based on our range of level meters. We focus on management of remote fuel tanks, water reservoirs, sewage flow, river level states and similar assets.
Providers of remote monitoring systems usually concentrate on communication links and control center software. These providers sometimes neglect the physical measurement aspect, which in many cases determines the quality of the complete solution. In contrast, SolidAT leverages its core expertise in level measurement to expand its offering for wireless monitoring. In our solutions, we exploit existing communication infrastructures such as cellular networks (GSM) and we propose simple-to-use local software packages for management.
|
|
Products Level Measurement - Capacitive level sensors
All of the capacitive level sensors are now available with automatic calibration should the overall length need to be changed.
The required length can be easily adjusted by the user. Once the length has been shortened the unit will require to be re-calibrated. This is now very simple, just requiring the "Zero Adjustment" button to be pressed with the tank empty and the "Maximum Value Adjustment" button to be pressed with the tank full. The calibration is then done automatically by the integrated micro controller.
The advantages of these level sensors includes the ease of adjustment, voltage or current outputs, extremly robust by virtue of the coaxial measuring principle and a 2" BSP head. Additional switching points are available optional.
|
|
|
The capcitive filling level systems operate according to the three-electrode principle. With this principle the container or an additional electrode serve as a counter-electrode to the probe electrodes. For this reason it is necessary with this system that the container is of a conductive material or a "substitute electrode" is fixed to the container wall, e.g. copper foil. These systems are available with probes for analogue filling level measurement of for detection of 1, 2 or 3 measuring points. The position of the switching points and the analogue measuring area is user-definable within the possible effective range and therefore it can be determined for optimal matching of each application. Level measurements of bulk material, liquids or pastes are possible with a dielectric constant as of εr 1,1.
|
|
The vessel, capacitance electrode and medium to be measured form together an electrical capacitor. The level change is monitored as a direct result of the variation in capacitance value around the probe, dependent upon the degree of immersion.
Advantages
- Rugged sensors suitable for universal applications
- High chemical resistance
Applications
- Level measurement and level detection of liquids and solids
|
|
Limit switch made of plastic for liquids and bulk goods
CPS 01
Features:
Quick and easy setting via programming by keystroke
Electrical connection: Cable or plug M8
PNP transistor output Housing made of PP or PVDF
Make contact or break contact
Outstanding price-performance ratio
Functional LED display Small and compact
Thread BSP G½"
Description:
Immersing the CPS 01 into the medium will cause a change in capacitance in the electrical capacitor. The change in capacitance is detected by the electronics and the switching operation is initiated.
Adjustment to the corresponding medium is carried out with the help of a programming key (programming via keystroke).
Application:
Designed for level limit detection of liquids and powdery or fine-grained bulk goods.
|
|
These are used where it is necessary to control with a high degree
of security the level of non conductive substances both liquid
and solid.
They are particularly used for controlling the level in silos for
cereals and foodstuffs, in feed plants, foundries and cement
works.
They function in the vicinity of the material to be controlled.
-Supply voltage 24 Vac or 110/220 Vac
-Relay output with 1 pole changeover from 5A to 220 Vac.
-Led incorporated
-Sensitivity adjustment
-Selector of min/max level
-SC series with power supply-amplifier incorporated within probe
-SCD series with power supply-amplifier separated from probe
-SX2 type with power supply-amplifier in plastic body
-Bar electrodes of teflon in standard lengths of 300/500/800 mm
-Plastified cable electrodes in standard lengths of 1/2/3/4
metres
-Housing in aluminium alloy with threaded fitting 1.1/2 inch GAS
|
|
The capacitive working LevelCheck 350C builds up a high-frequency, electrical field over the sensor surface.
If materials touches or is close to this field, the electrical field changes and the electrical signal changes within the sensor.
This is converted into a switching process. The sensitiveness of the sensor can be adjusted continuously to the adaptation
to different products.
|
|
