Materials handling actuators

Stroke : 50 mm - 700 mm
Force: 4,000 N - 8,000 N
Speed: 12.7 mm/s

... Spindle supplied as standard • Safety factor of up to 4 times The MAX-1 and MAX-3 are powerful and very quiet DC linear actuators, take up little space and can be installed at virtually every angle in a vertical or ...

Stroke : 100 mm - 3,500 mm
Force: 500 N - 900 N
Speed: 0 m/s - 5 m/s

... guideway equipped rodless linear actuator offering high load capacity at a small form factor and high dynamics up to 5m/s and 50 m/s2. The HLR is optimised to build easily multiaxis systems. The HLR is a linear actuator ...

Stroke : 650, 800, 1,000, 1,200 mm
Force: 5,500 N - 32,000,000 N
Speed: 75 mm/s

Ushering in the next evolution of electric actuators, the Thomson Electrak XD is strong enough to take on hydraulic applications while, at the same time, be smarter, smaller and more efficient than competitive ...

Stroke : 1,200, 600 mm
Rod diameter: 12, 20, 10 mm
Force: 3,200, 6,000, 1,250 N

PC SeriesTM Precision Linear Actuators Servo motors available matched with all models Thomson PC Series provides optimized machine design and energy savings through reliable, high-performance and compact electric ...

Stroke : 25 mm - 1,000 mm
Force: 0 N - 2,000 N
Speed: 0 mm/s - 5.5 mm/s

... mowers, scrubbers, sweepers, and material handling equipment. Furthermore, the MA4 has an optional T-Smart (note 1) version, which can work with the PGMA (note 2) to achieve the following ...

Stroke : 300 mm - 5,000 mm
Force: 300 N - 2,000 N
Torque: 0 Nm - 0 Nm

The zip chain actuator has been developed as a linear actuator products using a zip chain. Zip Chain is a chain uniquely developed by Tsubaki. Two chains interlock like a zipper to form a single, strong ...

Stroke : 40 mm - 2,000 mm
Force: 400 N - 200,000 N
Speed: 4 mm/s - 134 mm/s

... environment. Acme Screw Linear Actuator LAP Series (duty cycle 30%) and ball screw Linear Actuator LBP series (100% duty cycle ) Linear actuator driven by 12/24/36/48 v dc motor, 220/380 ...

Stroke : 40 mm - 2,000 mm
Force: 900 N - 200,000 N
Speed: 7.5 mm/s - 80 mm/s

... environment. Acme Screw Linear Actuator LAP Series (duty cycle 30%) and ball screw Linear Actuator LBP series (100% duty cycle ) Linear Actuator is driven by 12/24/36/48 v dc motor, 220/380 ...

Stroke : 40 mm - 5,000 mm
Force: 0.3 kN - 1,000 kN
Speed: 100 mm/s - 1,000 mm/s

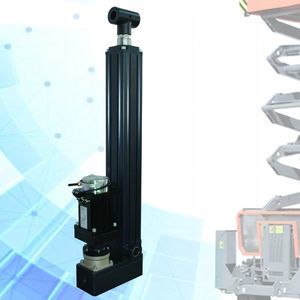

Lim-Tec scissor lift electric actuator:Overall accuracy of 0.05 mm; Maximum rated load of 5 tons; Speed of 1 m/s, 100% can work continuously; Precision thrust control accuracy is 5%, ...

Stroke : 14 mm - 271 mm
Force: 6 N - 92 N
Speed: 5.6 m/s

THE ST SERIES IS NOTABLE FOR: » Tubular linear motor » 3 phase technology » Actuator, components and module » High power density » High efficiency » Highly dynamic acceleration » Very long life-time » Freedom ...

Stroke : 27 mm - 309 mm
Force: 51 N - 780 N
Speed: 5.9 m/s

... maintenance-free performance. Life expectancy far exceeds typical ballscrew solutions. The ServoTube Actuator is ideal for push/pull/lift material handling, packaging and automated assembly ...

Stroke : 33 mm - 318 mm
Force: 137 N - 1,860 N
Speed: 5.3 m/s

THE ST SERIES IS NOTABLE FOR: » Tubular linear motor » 3 phase technology » Actuator, components and module » High power density » High efficiency » Highly dynamic acceleration » Very long life-time » Freedom ...

Stroke : 100 mm - 1,000 mm
Force: 225 N - 565 N
Torque: 1.3 Nm - 2.5 Nm

Technical Feature FSK40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble ...

Stroke : 50 mm - 1,000 mm
Force: 452 N
Torque: 1.3 Nm - 2.5 Nm

FSK40 linear guide is semi-sealer structure, body width 40mm, high stability,compact structure,versatility feature, suitable for normal working environment, it is convenient to use single axis or multi-axis to assemble easy functional ...

Stroke : 50 mm - 1,200 mm
Force: 20 kgf - 40 kgf
Speed: 60 mm/s - 220 mm/s

Dust Water Proof Enclosed Ball Screw Linear Module Short Description: Technical Feature FSL80 linear guide, fully sealed structure, body width 80mm, it is designed for dustproof usage in hard environment, avoid dust or miscellaneous ...

Stroke : 25, 35, 50 mm
Force: 140 N
Speed: 0.01, 0.01 m/s

... sector in general where robustness and high reliability over time is required even in harsh environments. This type of linear actuator differs from many others in its particular robustness, which is suitable for overcoming ...

Force: 300 N
Speed: 0.04, 0.07 m/s
Ambient temperature: -5 °C - 60 °C

... sector in general where robustness and high reliability over time is required even in harsh environments. This type of linear actuator differs from many others in its particular robustness, which is suitable for overcoming ...

Force: 450 N - 2,500 N
Speed: 5 mm/s - 110 mm/s
Ambient temperature: -10 °C - 60 °C

Three phase or single phase Motor CE Worm gearbox Acme lead screw or ballscrew (VRS) Chrome plated steel push rod Permanent grease lubrication IP 65, tested according to rule CEI EN 60529 - NB: only for brake motors standard IP54, IP65 ...

Force: 2.6 kN - 6 kN
Speed: 2.5 mm/s - 35 mm/s
Ambient temperature: -10 °C - 60 °C

Three phase or single phase Motor CE Worm gearbox Acme lead screw or ballscrew (VRS) Chrome plated steel push rod Permanent grease lubrication IP 65, tested according to rule CEI EN 60529 - NB: only for brake motors standard IP54, IP65 ...

Force: 0.6 kN - 10 kN
Speed: 3 mm/s - 100 mm/s
Ambient temperature: -10 °C - 60 °C

Three phase or single phase motor CE Worm gearbox Acme lead screw or ballscrew (VRS) Chrome plated steel push rod Permanent grease lubrication IP 65, tested according to rule CEI EN 60529 - NB: only for brake motors standard IP54, IP65 ...

Stroke : 74 mm - 6,250 mm
Force: 1,560 N - 4,500 N

... vibration. The actuator body consists of an anodized aluminum housing with a stainless steel strip which seals along magnetic strips to shield out contamination from entering the linear actuator. Precision ...

Torque: 0.45, 0.8, 1.38 Nm
Motor power: 6, 11, 23 W
Rotation angle: 90, 180 °

... consumption when actuator is in position. • No programming required. • Guarantee of position kept in the event of power blackout. • Brushless motor with long electric life (Brushless DC). • Motor ...

Stroke : 20 mm
Force: 5.5 N - 50 N
Motor power: 3 W

The 20DBM-K high resolution captive stepper linear actuators are tailored for demanding applications that need smaller move increments and finer positioning.With 7.5 deg step angle,these linear actuators ...

Stroke : 50 mm
Force: 5.5 N - 50 N
Motor power: 3 W

... high resolution non captive stepper linear actuators are tailored for demanding applications that need smaller move increments and finer positioning. With 7.5 deg step angle, these high power linear actuators ...

Stroke : 297 mm - 537 mm

rotaryARM The swivel arm module rotaryARM in connection with linear units is a very fast pick-&-place system for all tasks that require quick and precise automation solutions. It has a range of 297, 399 or 537 mm.

Stroke : 10 mm - 1,000 mm
Force: 20 N
Torque: 0.8 Nm - 5 Nm

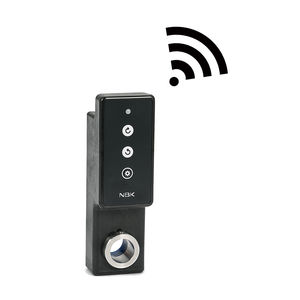

NBK’s EPU Wireless Positioning units is a factory automation device which automates changeovers and positioning in production lines. It can shorten changeover time, reduce manual labor, and minimize errors. ・Easy installation -simply ...

Stroke : 10 mm - 1,000 mm
Torque: 0.8 Nm
Motor power: 5 W

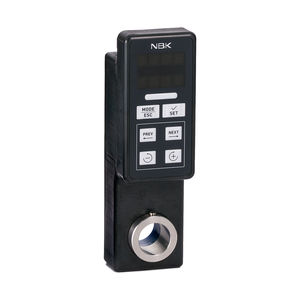

EPU-210 Wired Positioning Units - Modbus Compliant The built-in motor rotates the feed screw, grasping the current position via the encoder and stopping at the target position. Positioning is automated with the feed screw. Because ...
