Air Oil Separators
Our full range of traditional wrapped and pleated media separators deliver high filtration efficiency and longer life, plus boast greater energy efficiency too.
|
|
Application
In the high pressure circuits of hydraulic and lubricating oil systems.
Performance features
Protection
against wear: By means of ultra-fine filter elements that meet even
the highest demands regarding cleanliness classes and
dirt-holding capacity.
Protection against
malfunction: By means of permanent filtration in the off-line circuits
excellent cleanliness classes can be achieved.
Special design features
Cover: The cover can be opened without special auxiliary tools.
Because of the cover design the filter element can be
changed almost without losing any oil.
Flow control valve: Over the flow control valve the FNS off-line filters are
connected directly to the high pressure pipe. The surplus
volume (e. g. in circuits with fixed displacement pumps)
from the high-pressure circuit is cleaned by the ultra
fine filter element.
Dirt
retention valve: Ensures that dirt accumulated in the filter is removed
together with the element. Settled dirt cannot return
into the system.
|
|
Off-line filtration is in many cases the only feasible principle to achieve the required system cleanliness in fluid power systems. Off-line or kidney loop filter units consist of a circulation pump coupled to an appropriately sized and selected oil filter. The oil is circulated through this external filter system independent from the existing or non existing flow in the main system.
The programme comprises small compact standard units as well as customised subsystems of variable sizes.
Off - Line filter BNF series
Interchangeable DIN filter elements
Low noise emissions
Easy installation
May also be used for filling and draining the reservoir
Compact dimensions and easy to install either on the tank top or side. DIN elements provide qualified system cleanliness.
|
|
HILCO is one of the oldest filter equipment companies in the world with over 75 years experience in critical filtration and separation applications. We listen to our customer's needs and deliver quality engineered Hilco systems to meet the requirements, even if it is not something "off the shelf". We stand behind our products and will offer timely technical assistance.
HILCO Filters are compatible with the following fluid types:
• Insulating oil
• Lapping oil
• Hydraulic oil
• Fuel oil
• Seal oil
• Quench oil
• Draw oil
• Roll oil
• Cutting oil
• Edible oil
• Bearing packing grease
• Gear lube
• Lubricants
• Coolants
• Heat transfer fluid
• Fire-resistant synthetic fluids
• EHC (electrohydraulic control) fluids
• EDM coolants
• Per-flourinated polyester (fomblin fluids)
• Air filter liquid
• Ethylene
• Natural gas
• Nitrogen
• Butane
• Amine
• Phosphate esters
• Glycol
|
|
BELL In-line Filters grant a high protection to the most delicate components of an oleodinamic system. Placed in the site under pressure, they keep the particles sucked or produced by the pump up to a size of 10 micron.
These filters are normally applied in addition to the standard filters in suction or release, as a last barrier of protection before the entrance in directional valves, flow regulating valves and all those components which require a high grade of absolute filtering.
The body is made in a treated aluminium alloy to obtain a minimum dimension and weight.
The filtering element, instead, is made in synthered bronze with a conic shape to resist to high pressure without collapsing.
|
|
High Pressure Single Strainer - Simplex T Type
The Simplex T Type extends the range of S type filters to higher pressures, suitable for both liquid and gas applications and available with bolted or quick release type covers.
Standard Features
Quick release covers eliminate the need for tools for maintenance.
Designed for pressure ratings up to ANSI class 300lb (900 PSIG).
Flow is from inside to outside the basket to trap and retain debris.
High basket area to pipeline CSA ratio of over 10:1 in most cases.
Can be fitted with coarse perforated baskets (2mm as standard) or fine stainless steel mesh inserts to give particle removal down to 50 microns.
Disposable depth type cartridges are available for filtration to 5~10 micron for liquid and 1~2 micron on gases.
|
|
98 Series Filters - High Pressure (10 micron)
98-1110 Series T-Type Filter:
Designed for high flow applications
Features cleanable element
Available options: electrical, visual, bypass valve, visual pressure differential indicator, bypass relief valve, electrical bypass
|
|
Simplex Type S
The general purpose standard, single basket filter with a quick-release cover for easy maintenance.
The design does not require specialised tools or knowledge, and results in a minimum of downtime.
Suitable for both liquid and gas applications.
Sizes: 1" to 12" bore, flanged to ANSI 125/250FF and 150/300 RF.
Can be drilled to BS tables and DIN standards.
Also available with screwed connections 1" and 1½" sizes.
Materials: Cast iron, cast steel and stainless steel, all fitted with cleanable baskets and inserts or disposable gas cartridges as required.
|
|
The Fairchild Automatic Drain Filter Series is designed for use in systems that require clean, oil-free air. This series consists of a particulate filter and two coalescing filters with automatic drains. You can easily replace all filter elements.
Automatic Drain Filters are highly effective in removing oil and liquid-borne particulate matter. These units are recommended for use when clean air or inert gas environments are required in laboratory air, process control, instrument and compressed air systems.
|
|
Ikron %u201CFluid Filtration%u201D from Casappa %u201CFluid Power Design%u201D
An accurate filtration expands the life of all components and improves the overall efficiency of your hydraulic system.
Suction filters
Return filters
In line filters spin-on type
In line medium and high pressure filters
Accessories
|
|
|
We have named PUMP CARE the Suction Filters because thanks to their function of protection from coarse contamination (due to lack of initiai cleaning or to an accidental ingression) they take care of the pump, ensuring a safe and efficient operation.
|
|
|
Suction and delivery oil filters for both high and low pressures. EUROFILTRAZIONE is capable to supply you with original or equivalent filters of the leading international brands. Special filters are manufactured to customer specifications.
|
|
The MAHLE oil mist collector unit LGA 600 is a high performance oil mist collector unit for the separation of coolant from tooling machine exhaust air.
|
|
|
|
|
|
With over 3000 air/oil separator designs for compressors, Mikropor is one of the leading air/oil separator manufacturers in the world today.
The primary purpose of Mikropor air/oil separators in rotary screw and vane type air compressors is to separate oil from compressed air. Mikropor separators trap oil by allowing it to coalesce and drain down to a sump - while allowing compressed air to pass through. From the sump, oil will be removed by a scavenge line of some type and returned to the reservoir to be recompressed in a continuous cycle.
Mikropor separators are constructed of a depth loading media and have excellent oil removal capabilities that provide vital air/oil separation required in high-performing compressor systems. Mikropor separators have an oil removal rating of 1-2 ppm (parts per million) - so the oil loss in a compressor working with Mikropor air/oil separators is negligible.
Mikropor separators feature a unique Helix Tube Construction that provides added strength and collapse resistance.
In addition, some special Mikropor separators use fluted - not punched or perforated - steel. The flutes provide a diagonal air/oil flow and improve the coalescing performance of Mikropor separators over competitive products. This fluted steel design unique to Mikropor.
|
|
Coalescing Filter
M26
Features
• Manual Drain
• 0.01 Micron Rated Filter Element
• Quick-disconnect Bowl Guard with Integral Plastic
Bowl and Safety Latch
• Differential Pressure Indicator
Coalescing Filter
M21
Features
• Manual Drain
• 0.01 Micron Rated Filter Element
• Quick-disconnect Bowl Guard with Integral Plastic
Bowl and Safety Latch
• Differential Pressure Indicator
|
|
Applications
MANN+HUMMEL filters for compressed air systems ensure consistent performance of compressed air systems and systems installed downstream. They help to maximise the service life of all filters in the system.
Advantages
The advantages are
low oil and energy consumption
low wear in the compressed air system
custom-made solutions
different designs: air/oil separators, air-oil separator boxes, deep-bed filters, air/oil separators for vacuum pumps
|
|
Pressure Filters SF
STAUFF pressure filters are designed for the most demanding applications. They come in a variety of sizes, configurations and with numerous porting options.
* operating pressure to 420 bar
* flows to 1320 l/min
* BSP, NPT, SAE o-ring ports
or SAE flange (codes 61/62)
* filter head made of spheroidal graphite cast iron,
filter bowl made of cold drawn steel
* wide range of valve options
* various element types and media available
* standard bowls or top-loading bowls available
* visual, electrical and visual-electrical indicators
|
|
|
Our High Pressure series filters are designed for pressure line applications where design flexibility is required. Besides the standard T-Type and/or L-Type porting, we offer manifold type filters to provide compact and direct mount installation. This series is rated for flow from 50 to 150 gpm and a working pressure range from 4500 psi to 6000 psi.
|
|
Applications
Filtration lubricating oils and hydraulic fluids in engines and machines
Advantages
OEM quality
Proven technology
|
|
The 5000 series spin-on filter is commonly used to remove contaminates ingested or generated in hydraulic or lube oil applications.
Elements
- Microglass beta 75 in 1, 3, 6, 12 and 25 micron absolute
- Stainless woven wire 141 micron
- Cellulose 3, 10, 25 micron
- Water absorbing 3 and 10 micron
Features
- Housing material: Cast aluminum.
- Flow rates: 0-125 gpm
- Pressure: 250 psig.
- Temperatures: -65º to 250º F
- Port sizes: 1/2" to 1-1/2" NPT or SAE
- Bypass settings: 3, 5 ,15 and 25.
- Element cleanliness indicators: visual, electrical and gauge ports.
- Easy to install spin-on elements.
|
|
Five separate port options provide for maximum design flexibility in the W080 filter series. Quick filter change outs are accomplished with the use of our
serviceable bowl ring assembly. The size and material configuration are will suited for todays demanding proportional and servo applications. Our standard
bowl drain plug helps relieve system pressure during filter change outs. Western Filter’s proprietary BetaPoreTM 5 layer media is offered in a variety of
PakTM and meets the HF3 automotive standard. Three different media grades are offered down to 5.1μ(c). WF elements core collapse options range from 150 to 3000 PSI. The differential pressure indicator line is designed to work with the wide assortment of bypass valves. Thermal lockout and surge control are two
key features incorporated in many of the valves.
|
|
|
The designs offered in this filter series accommodate the need for a full range of port types and configurations. Working pressures range from 500 psi to 800 psi and are available with BetaPore or Coreless media.
|
|
The DUO3 off-line oil filter increases the availability and reliability of hydraulic and lubricant oil systems. For optimum oil filtration performance, more often than not filtering takes place in off-line circuits, where the oil filter can operate 24 hours a day independently of the main system, avoiding any changes in pressure and flow.
Fields of application
Typical fields of application include hydraulic systems, lubricating systems, hydraulic presses, injection moulding machines and machine tools. When rebuilding a system we recommend installation of an off line oil filter.
Design
Its low noise level and compact size make the DUO3 ideal for use in many different machines and working environments. For uniform and good circulation and oil filtration, the DUO3 has been fitted with a low pressure pump from our QPM range. This pump has few moving parts and is designed to have a long service life and consume little power.
|
|
CJC™ Fine Filters are offline oil filtration systems with integrated circulating pumps for off-line installation. The filters are recognized around the world as highly efficient purification systems for applications involving hydraulic oil, lubrication oil, gear oil, quenching oil, phosphate esters and more.
CJC™ Fine Filters are ideal for controlling oil contamination levels for particles, water and degradation products (oxidation resin/sludge, varnish).
The CJC™ Depth Filters have a filtration degree of 3 microns absolute and a very large dirt-holding capacity.
CJC™ Fine Filters deliver measurable customer benefits: lower operation and maintenance costs, increased productivity, and maximum lifetime for system components, in-line filters and oil.
The modular filter units are built and sized to specific customer requirements - whether the oil volume is 2 litres or 200,000 litres.
|
|

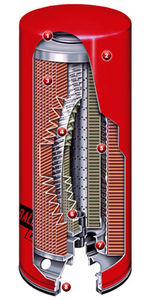

High Velocity Dual-Flow
Baldwin Filter High Velocity Dual-Flow lube filters provide improved engine protection during extended oil drain intervals, high idle time and harsh operating conditions. The patented design of the High Velocity Dual-Flow filters provides maximum filtration, while the heavy-duty construction ensures dependable operation.
|
|
The product range covers pressure filters, duplex filters, bypass filters, suction filters, return-line filters, breather filters, highly efficient filter elements in standard versions to industrial norm DIN 24550, and accessories, filters and service equipment for the care of hydraulic fluids and lubricants.
The ongoing development of materials and production technologies ensures top-quality products offering economically and technically optimal benefits. That is why MAHLE industrial filters for hydraulic fluids and lubricants are the products of choice for OEMs and for users of mobile and stationary hydraulic equipment alike.
|
|
Western Filter suction strainers are constructed with aluminum end-caps and stainless steel screen to protect hydraulic pumps from harmful large contaminants that tend to accumulate on the bottom of hydraulic reservoirs.
• 5 Sizes of NPTF threads available
• Available with or without bypass
• Replaces competitive products
|
|
|
Installed upstream of the pump or accessible from the outside in a particularly service-friendly configuration with a contamination indicator integrated in the suction line, suction filters protect the pump from large-particle contamination. A selection of elements adapted for use with the system protect installations and pumps in the range from 10 - 25 µm with our micro-quality products, or in the coarse particle range using easy-to-clean wire gauze.
|
|
Coalescer units
These can be vertical or horizontal vessels with connection sizes up to 48" (1200 mm) NB using the properties of droplet attraction, impingement and coalescence to remove liquid droplets from fluidic streams.
Coalescers are available to separate water and condensates from gaseous hydrocarbons such as natural gas and fuel gas, as well as from ammonia and nitrogen and for both onshore and offshore activities. Also available are coalescers and separators to remove water from liquid hydrocarbons such as diesel, fuel oil, kerosene, some crude fractions.
In all cases the coalescers can be supplied complete with integral filter packs to provide long term in-service life.
Specialist coalescers are available for the separation of difficult to separate duties or where a corrosive main phase fluid is present.
|
|
The coalescer has been especially designed to remove free water from hydraulic circuits. Costeffective and simple in design, it functions without absorption material: special filter material in special configuration retains the small water droplets floating in the medium and removes them.
|
|
|
|
