ALNICO MAGNETIC
Developed in the early 1940%u2019s, the Alnico (aluminum, nickel, cobalt) family of magnets remains the material of choice for many applications. Its excellent linear temperature characteristics, high magnetic flux density, and good corrosion resistance are ideally suited for use in products of all sizes - from miniscule cellular telephone magnets weighing less than a gram to radar focusing magnets weighing 50 pounds or more.
BONDED MAGNETS
Polymer bonded magnets have opened a new world of application opportunities. Thermo-elastomer and thermo-plastic resins can be compounded with a variety of magnetic powders to form Injection Molded, Compression Bonded and Flexible Calendered products. Injection molded magnets can be formed into complex shapes and molded directly onto other components reducing assembly costs. Compression bonded magnets, while of simpler geometries, offer higher magnetic output. Flexible sheet and strip is used in many applications including small motors, flexographic (professional printing) devices, magnetic filtering, and signs. |
|

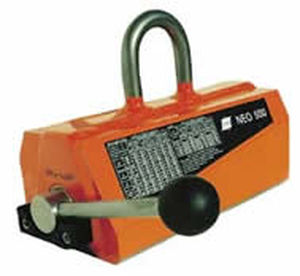

PERMANENT LIFTING MAGNETS SUPPLIER
Dust- and waterproof permanent lifting magnets can work outside in any weather.
Permanent lifting magnets don't need power supply units, magnetization and demagnetization occur due to turn of the handle.
Lifting magnets have small overall demensions and weight in comparison with electromagnets.
Magnets can keep cargo indefinitely long. They are served by one person and have a threefold capacity margin from nominal. |
|
| ... products without technical information |
| |
... see all the products in the category
Magnets
|
Grid magnet for bulk materials
Permanently magnetic grid industrial magnets can be supplied in circular, rectangular or square format and are therefore universally applicable. Ferrous particles are filtered out from bulk material as they pass through the magnetic grid.
Advantages
Powerful magnets remove even low magnetised stainless steel particles from the product flow. |
|
They are designed for sheets with thicknesses starting from 4mm.
The model TM4, equipped with 4 permanent-electro cross-beams, is able to lift loads up to 12m lenght and weight up to 20 tons.
The TM6 version, equipped with 6 cross-beams, is able to work with loads up to 16m lenght and 25 tons SWL.
The hydraulic system allows high precision and reliability in time.
The same permanent-electro magnetic technology used in the TM model, but installed on a more economical fixed beam.
Capacity up to 10 tons, max load lenght 6m.
Allow to handle sheets from vertical position (stacks) to horizontal (machine bed) and vice versa.
Permanent-electro magnetic modules for profiles handling.
The modules are installed on a fixed beam, in tailor-made configurations with 2/4/8 pieces.
Fixed beams for professional laser / plasma cutted pieces.
The special shape and layout of the permanent magnets allows to handle the cutted pieces.
|
|
BAT GRIP
3 Ton capacity permanent-electro lifters with battery.
Equipped with a professional remote control, this lifter is capable to be used for a long period independent of the power source (est 7
days), because the energy is only used for a fraction of a second during the MAG/DEMAG phase. |
|
Features:
Cold Operation
Since the electrical current is only used momentarily, no insulation or coil failures are caused by internal heating.
Safer Holding
The permanent magnetic material is unaffected by external power failure. Since Electro-Permanent magnets require electricity only to activate the magnet "on" or "off", there are no mechanical parts that could accidentally stick. Once the magnet is "on" the electricity can be disconnected indefinitely without any interruption to the holding power.
Cycle Time
Energizing the magnetic material typically takes 2-3 seconds.
Power Consumption
Operating costs are very low compared to conventional electromagnets because the power is applied for a minimal time. |
|
| ... products without technical information |
| |
ADVANTAGES OF THE PILOT GENERATOR
Excitation systems of industrial generators including a pilot generator have a more simple and more rational design than the compound excitation systems and provide to the set a larger reliability
DESIGN OF THE PILOT GENERATOR
Industrial magnets : Samarium Cobalt - very stable, high coercive magnetic field
Stability of the voltage in process of time
Stability of the voltage afler a short-circuit
Dismantling without voltage loss : no irreversible demagnetisation
Large number of solutions : pole number, size for the machines
Supplying of the required power to the regulator under any condition of the running of the main generator
MECHANICAL CHARACTERISTICS
Frame, endshields : aluminium, cast iron or steel according the solutions·
Machine with manufacturer of bearings
Mounting : IM 1001 or 3001 or 3601 (low shaft height)
Floating mounting or
Rotor / Stator fitted inside the frame or outside the main generator
Cooling : IC 00, IC 01, IC 0041 or IC 0141
Protection : IP 00, IP 23, IP 44 or IP 55
Insulation class F
Temperature rise class F or B : 100 K or 80 K
Ambient temperature : 40°C or others
According to the required speeds and mounting modes
(Rotor/Stator) : binding of the rotors (magnets) : either metallic or carbon fibre
ELECTRICAL CHARACTERISTICS
maximum economical values Three phase or Single phase
Voltage U eff. <500 V
Power S eff. < 60 kVA
Frequency F <400 Hz
Power Factor : 0 < cos phi < 1
Distorsion < 5% (No-load and Full load) |
|
PRECILEC RADIO-ENERGIE alternators WIND PMG equip with the industrial wind turbine of small power. Our Pma charge the battery to ensure the power supply supplier of the isolated places, off-line to an electrical grid local.
ADVANTAGES OF OUR DESIGN
Our design is reliable, simple and compact
Our know-how is the integration of rare earths magnets. They are very stable, with high coercive magnetic field and high specific energy
Stability of the voltage in process of time
No voltage loss even after a short-circuit
Our design allows an optimal output according to the required configuration
Dismantling without voltage loss: no irreversible demagnetisation
Large number of solutions: pole number, size for the machines which allow to consider all your demanding space requirements
Mechanical interface is optimized
Highest power-to-weight ratio
In direct drive without speed multiplier or gear
No maintenance needed for machine without manufacturer of bearings
Maintenance limited to bearings only for machine with bearings
ELECTRICAL CHARACTERISTICS
Maximum economical values
Three phase or Single phase
Voltage U eff. max 500 V (between phases)
Power P mech. max 20 kW
Frequency F max 400 Hz
Power Factor: cos phi 0 < cos phi < 1
Distortion max 5% (No-load and Full load)
Rated speed max 3000 rpm
MECHANICAL CHARACTERISTICS
Cooling: IC 00, IC 01, IC 0041 or IC 0141
Protection: IP 00, IP 23, IP 44 or IP 55
Insulation class F
Temperature rise class F or B: 100 K or 80 K
Ambient temperature: 40°C or others
According to the required speeds and mounting modes (Rotor/Stator): binding of the rotors (magnets): either metallic or carbon fibre |
|
LEROY-SOMER designs and manufactures DC, AC induction and AC PM gearless motors. LEROY-SOMER machine ranges cover all segments of the market, from small load-small speed to high speed -high rise elevators.
The new Z range of synchronous permanent magnet motors has been designed for lifts obtaining a speed between 0.6 and 5 m/s the load capacity of which ranges between 450 and 2000 kg. Their extremely compact design and silent operation make it possible to install these high efficiency motors in machine rooms as well as directly in the lift shat.
LEROY-SOMER can also customize an existing machine or design a new machine to fulfil specific requirements. |
|
Super-Quad magnetic chucks are the revolutionary proposal for all machining operations on milling centres and machining centres.
The workpiece is totally free for full machining on 5 faces in a single set-up.
Self-shimming system enables clamping warped-surfaces pieces.
|
|
Suitable for Sinker EDM Applications
The Walker Ceramax is the most widely accepted permanent magnetic chuck in the center tool industry. In addition to its ease of installation and operation, this patented design offers the highest holding power available on the market. It simplifies complicated set-ups with accurate repeatability.
The Ceramax is extremely versatile and is suitable for many milling applications in addition to general toolroom grinding.
Special Flatness and Parallelism Tolerances available on request
Optional Stainless Steel Construction and Flushing Holes on request
Walker Ceramax Diagram
standard features:
Full magnetic surface to all edges - powerful holding over entire professional chuck surface
Fine pole divisions - for more uniform magnetic holding of small parts
Solid construction top plate - protects permanent magnetic pack from penetration of EDM fluids. Provides stronger and more rigid work surface
Lowest height of any permanent chuck - for added clearance on larger workpieces
Can be used inverted for holding electrode on ram
Supplied with (2) hold down clamps manufacturers
Magnetic field does not affect EDM operation |
|
MDS for Spark erosion :
Permanent-electro magnetic chucks for Electric discharge machines.
It's equipped with dedicated washing channels.
Steel/brass surface for high reliability in time.
Cubotec for horizontal milling :
Now with Cubotec all advantages given by Super-Quad chucks are combined with the flexibility of a system designed for horizontal manufacturers of spindle machine tools.
With Cubotec it's easy to fix pieces with different shape and dimension, as well with surfaces bigger than clamping area, using the full strokes of the machine.
Radial-Pole for turning :
Permanent-electro magnetic chucks for turning operations.
The PR/S model is dedicated to grinding and finishing operations.
PR/H version for heavy turning operation.
No machining vibrations - full machining in a single setup. |
|
This universal workholding professional chuck offers maximum effective holding on the widest range of workpiece shapes and sizes. Its effectiveness is considerably enhanced by the new low profile feature, which adds more head room under the professional wheel. Only 3 1/2" in height, this new low profile interloc is 1 1/8" shallower than the conventional Walker Interloc and a full 1 1/2" less than competitive units of the same type. This savings in height permits greater flexibility with added head room under the wheel to position the work or handle bulkier pieces. This results in savings in set up time and added productivity. It also reduces the chuck weight by 30% or more.
The low profile is achieved with no loss of strength, precision or holding power. With the unique Walker Interloc design, more than 75% of the chuck's surface is major north or south poles, making it easier to locate workpieces without concern for locating poles. There is no wear loss due to the shallower polarity pattern in the replaceable top plate. |
|
