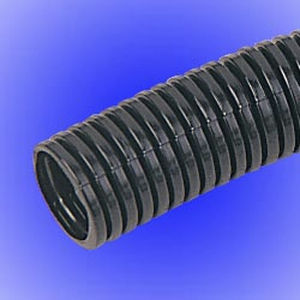

SP/SPZ
- Flexible spiral tube for fitting cables, conductors, tubes, wire bundles etc.
- Excellent protection against mechanical wear.
- Suitable for installing afterwards around cabling.
- Reduces cable and line breakdowns and thus maintenance and downtime costs.
- Also available in halogen-free version.
|
|
- Product Code: RB94X6BMCPPE
- Product Description: 94mm x 6m Black Motorway Comms
- Colour: Black
- Material: Polyethelene
- Length: 6
- Inside Diameter: 94
|
|
Straight Fitting - Fixed External Thread
Type: PPA
Description: For insertion into threaded entries & knockouts. Locknut supplied.
Material: Polypropylene
IP Ratings: IP66
Part No Size Colour
AL13/M16/PPA/BL 13_mm Black
AL16/M16/PPA/BL 16_mm Black
AL21/M20/PPA/BL 21_mm Black
AL28/M25/PPA/BL 28_mm Black
AL34/M32/PPA/BL 34_mm Black
|
|
|
|
|
|
Metallic Cable Management
Adaptaflex have a choice of fifteen individual metallic conduit systems manufactured either in galvanized steel or stainless steel.
A range of 3 different conduit types provide a solution for liquid resistant specifications with a further 3 conduit options in liquid tight covered steel conduit for especially demanding environments. Conduit ranges are offered in nominal conduit size from 3mm for CCTV/roller shutter doors and for protecting fibre optics cables right up to 75mm for larger cable carrying capacity.
Overbraided conduits are particularly suitable for installation in abrasive environments. Where applications call for enhanced low fire hazard properties or EMI screening then there is the option of high specification tinned copper overbraided for greater EMI protection levels.
In addition a range of fittings are specifically designed to maintain system integrity including fixed and swivel fittings, straights, 90°, 45°, and a host of accessories including locknuts, enlargers, reducers and converters. Many of our conduit systems have industry recognised approvals including British Kitemark, CE Approval, UL Listing, NF, LUL, DB, and Lloyds Register amongst others.
Advantages
* High compression/crush strength
* Tensile strength - pull off load under tension
* Impact resistance
* Inherent fire protection on uncoated versions
* Corrosion resistant - stainless steel options
* Braided - High level EMI screening with tinned copper overbraided
* Greater temperature tolerances
|
|
Strain relief fittings in all popular thread types and sizes for
standard applications in the following areas:
- Machine, apparatus and plant equipment
- Measuring control and feedback systems
- Medical equipment
- Railroad cars and vehicles
- Power plants (hydro, gas, coal or wind)
- Industrial installations
and in all applications where excellent performance, fire
resistance, and resistance against turning of the cable are
critical.
|
|

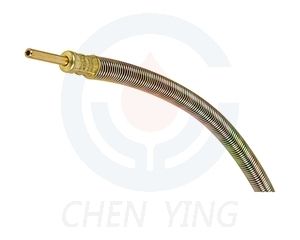

Metal conduits and connectors
NORRES-Metal hoses, MeC, MeC PVC and MeC PUR, have the following characteristics:
- especially robust
- high temperature resistance in many cases
- with or without a plastic coating
Applications
Suction hoses, transport hoses especially suitable:
- for electrical installations
- for flexible shafts
- for hydraulic and pneumatic hoses
- as robust protection conduit
Properties
- partially extreme heat resistant
- highly flexible
- increased resistance to tear, pressure and impact
- very robust
- capable of electro-static discharge (according to BGR 132, formerly ZH 1/200) by grounding.
up to IP 68 to EN/ IEC 60529
Temperature Range
from -40 °C up to +600 °C approx.
Construction and material
- MeC metal conduit; profiled metal band: hooked profile
Conduit connectors
Choosing the right connector is vital to ensure a secure connection for strip-wound metal conduits with or without a plastic coating and/ or braiding.
|
|
|
|
|
|

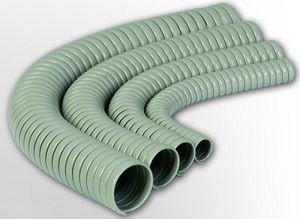

Plastic conduits and connectors
NORRES Plastic conduits, WELLFLEX, NORFLEX (PVC or Polyurethan) and NORPLAST, have the following characteristics:
- liquid tight
- highly flexible
Applications
- for electrical installations, installation in switchboard plant, switch cabinets, mechanical engineering and robotics
- as suction and pressure hose for gaseous and liquid media
- for hydraulic and pneumatic hoses
- as robust protection conduit
Properties
- highly flexible
- gas and liquid tight
- good resistance to alkalis and acids
- kink-proof
- interior protection against corrosion
- partially smooth interior and exterior (easy retraction of cables, easy cleaning of exterior surface)
up to IP 68 to EN/ IEC 60529
Temperature Range
from -40 °C up to +90 °C (short time +125 °C approx.)
Construction and material
- WELLFLEX® construction: wall thickness depending on diameter; wall: high grade soft PVC/ special premium ether-polyurethan (Pre-PUR®); spiral: plastic coated spring steel wire
- NORFLEX: wall: high grade soft PVC/ special premium ether-polyurethan (Pre-PUR®)
- NORPLAST: hard plastic spiral integrated in the wall; wall: high grade soft PVC: spiral: rigid PVC
Conduit connectors
NORRES can supply all standard connectors and thread profiles for the various hoses or combines them to form customised solutions. These connectors are tailor-made for our cable protection systems. Optimum compatibility and tightness are guaranteed.
|
|
|
|
|
|
NORTIGHT® conduits and connectors
These extra-robust metal conduits featuring a seal and a thick coating are the number one choice among export-oriented engineering manufactures serving.
Applications
- for electrical installations, installation in switchboard plant, switch cabinets, mechanical engineering and robotics
- for hydraulic and pneumatic hoses
- for moving machine parts
Properties
- flexible
- increased resistance to tear, pressure and impact
- very high compression resistance
- tensile strength > 1.000 N
- gas and liquid tight
- good resistance to UV and ozone
- kink-proof
IP 68 to EN/ IEC 60529
Temperature Range
from -55 °C up to +145 °C (short time +160 °C approx.)
Construction and material
- profiled metal strip: hooked profile with special fibre sealing and from 1 1/2" double folded profile (galvanized steel); wall: high grade soft PVC, polyurethane or thermoplastic rubber (TPE)
Connectors
This connector series provides a perfect fit for all NORTIGHT® conduits. NORRES manufactures “straight” connectors as well as types with a 45° or 90° elbow and with metric or PG threads. These cable protection systems are supplied in standard packaging units to simply your order. The connectors are vibration resistant and reusable. Also they confirm to the requirements up to IP 67.
|
|
Cable fittings in various versions. In plastic and metal. For EMV applications and for explosive areas. Multi-inserts make the fittings even more versatile. With metric, PG and NPT threads.
Type WKK (plastic version)
The cable fitting offers excellent strain relief and has a vibration-resistant cap nut.The multi-insert KV-ME enables several cables to be routed through one cable fitting. Very high protection class Easy to assemble Large clamping rangeAn additional O-ring (type OR) is required in order to assure a protection rating of IP68.
Type WKK-Ex (plastic version)
Cable fitting with high protection class for areas at risk of explosion.The cable fitting offers excellent strain relief and has a vibration-resistant cap nut Very high protection class Approved for areas at risk of explosion Large clamping rangeAn additional O-ring (type OR) is required in order to reach a protection rating of IP68.
|
|
Medium Weight Conduit
Type: PP
Material: Polypropylene
Applications: Acid Resisting Environments
IP Ratings: IP66
Part No Size Colour Name
PPFM13/BL/50M 13_mm Black medium weight polypropylene
PPFM16/BL/50M 16_mm Black medium weight polypropylene
PPFM21/BL/50M 21_mm Black medium weight polypropylene
|
|
| ... products without technical information |
| |
|
|
|
|
Viking, Saracen & Saxon layflat hoses
Viking fire hoses are chosen by fire fighting professionals throughout the world for their quality, performance and reliability. It is constructed with an all synthetic woven textile reinforcement encased in a blend of high tensile PVC/Nitrile rubber which forms a unified lining and cover. The outer ribbing provides excellent abrasion resistance. Viking fire hose is independently tested to BS 6391 :Type 3 1983 by RAPA Technologies.
Saracen fire hoses are for use where fire fighting is less frequent or intensive. Saracen offers an affordable alternative to Viking without any performance penalty. It is constructed in the same layered way to the Viking though without the heavy protective ribbing, nitrile-PVC is used which makes the hose lighter.
Saxon fire hoses are built to the highest quality, lightweight but with exceptional strength. They are used by fire brigades and industrial users worldwide. Available with a polyeurethane outer coating for extra abrasion resistance or uncoated for lightness, they are ideal as washdown hose.
|
|
Fire Protection Sleeves
Designed to avoid the expenses of fireproof ducting, the sleeves are efficient and cost effective.
Two semi-circular metal shells are lined with intumescent material that when heated expands making a fire barrier.
|
|
Macron produce a comprehensive range of hose fittings in aluminium, gunmetal and other alloys to British, American and other international standards. They can be produced to a customers' specifications in a variety of materials and finishes including polishing, anodising and chrome plating.
-Delivery hose couplings
- Branchpipes and nozzles
- Blank caps and plugs
- Adaptors
- Collection heads and manifolds
- Breechings
- Suction hose couplings and wrenches
- Suction strainers
- Standpipes and hydrant keys
|
|
|
|
|
|
General description : 55 Series
Macron's range of hose reels combine high performance and a rugged space saving design. Manufactured without compromise the 55 Series is renowned for its quality and long-term reliability derived from cutting edge technology and world-class production
55 Series hose reels are available in manual or automatic versions. Manual versions are fitted with a ball or a gate valve. The automatic format actuates as the reel is rotated removing the need for the user to turn on the water supply - an important safety consideration. All models are available with 19mm or 25mm bore hoses.
The range includes fixed and swinging variants. Swinging hose reels are available in right and left hand formats suitable for surface or recess mounting.
55 Series hose reels are manufactured to BS EN 671-1:2001 and carry the CE mark through BSI notified body number 0086.
Features
- Wide range of sizes and capacities
- Easy 'hose-on' installation and maintenance
- Automatic or manual versions
- Bronze axles and nylon bearings for long life and dependability
- Supplied fully assembled
- Fixed reels available with flexible inlet piping
- Optional floor pedestals
- Offshore manual versions
- CE marked
|
|
Macron hosereel cabinets have a space saving design with hose reel and cabinet doors that open a full 180 degrees for ease of access and use. They can be surface mounted or recessed with architrave and are finished in red epoxy powder coat as standard. The cabinets are universal with left or right hand opening and four knock out water entry points per cabinet.
Macron hosereel cabinets are constructed from 16swg zinetec steel with a red recessed latch type handle for an attractive flush finish.
Features
- Door & hose reel swing out a full 180 degrees
- Red expoxy poswer coated standard finish, other colours available
- Solid or glass fronted door
- Stainless steel door option
- Surface or recessed mounting
- Top or bottom water entry
- Right or left hand swinging
- Supplied fully assembled and tested
|
|
|
|
|
|
Viking, Saracen & Saxon layflat hoses
Viking fire hoses are chosen by fire fighting professionals throughout the world for their quality, performance and reliability. It is constructed with an all synthetic woven textile reinforcement encased in a blend of high tensile PVC/Nitrile rubber which forms a unified lining and cover. The outer ribbing provides excellent abrasion resistance. Viking fire hose is independently tested to BS 6391 :Type 3 1983 by RAPA Technologies.
Saracen fire hoses are for use where fire fighting is less frequent or intensive. Saracen offers an affordable alternative to Viking without any performance penalty. It is constructed in the same layered way to the Viking though without the heavy protective ribbing, nitrile-PVC is used which makes the hose lighter.
Saxon fire hoses are built to the highest quality, lightweight but with exceptional strength. They are used by fire brigades and industrial users worldwide. Available with a polyeurethane outer coating for extra abrasion resistance or uncoated for lightness, they are ideal as washdown hose.
|
|
FLEXWELL Safety Pipe®
FSR - an innovative product, tried and tested many times over
Our patented FLEXWELL Safety Pipe® provides you with a dual-wall system to transport combustible or water-hazardous media - doubly sure, monitorable and design-approved.
Areas of application
Transport of environmentally hazardous, combustible, toxic fluids and gases.
|
|
... see all the products in the category
Hoses
|
Fire Protection Sleeves
Designed to avoid the expenses of fireproof ducting, the sleeves are efficient and cost effective.
Two semi-circular metal shells are lined with intumescent material that when heated expands making a fire barrier.
|
|
BRUGG-STAMANT®
Guaranteed environmental safety
BRUGG STAMANT Safety Pipe ® is a dual pipe system prefabricated in construction units; it is especially suitable as a pipe to transport combustible or non-combustible media and gases that endanger water.
Optical and acoustic alarms are triggered in case of a leak if the pipe is used in conjunction with a leakage indicator.
Conditions and requirements
Conventional engineering of dual-wall pipe systems to transport hazardous substances must meet the highest requirements in terms of expert design and optimal technology - especially when larger dimensions are involved. As you would expect, we guarantee compliance with all conditions for fire and explosion prevention and water protection.
|
|

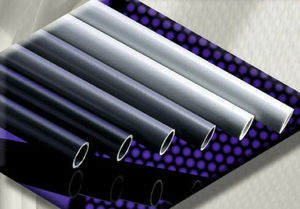

Tubifor rigid conduit systems offer a new flexibibility in
specialist wiring even in the most difficult situations.
Constructed to comply with CEI-UNEL 64-8 and EN
500 50086-2-1 standards, they are particularly indicated
for the realization of external plants.
|
|
- COLOUR : Black with a haelicoidal yellow strip
- MATERIAL : Self-extinguishing polyvinylchloride
- LENGHT : 3 - 4 - 6 mt. bars
- PACKING : Wooden shelves
- CERTIFICATION : Italian Quality Mark
- COMPLYNG WITH CEI 23-29 - sheet 1260/EN 50086-2-4
|
|
Characteristics of the product
External diameters: 16 mm - 20 mm - 25 mm - 32 mm - 40 mm - 50 mm - 63 Misters.
Length: 3 meters.
Nanomaterials: Aluminum
The tube of protector of aluminum cables has the following advantages:
- High mechanical resistor.
- Excellent resistor with corrosion.
- Lightness and simplicity of implementation.
- Less expensive than the stainless steel pipe than it can replace in many cases.
- Resistor with sea water.
- Proposed in two versions: with smooth end and has threaded end.
- Non flammable and without release of halogen in the event of fire.
Many accessories such as elbows, smooth or tapped bushings, matter plastic ends, aluminum fixing collars.
|
|
|
|
