Description:
Pipe for dairy applications.
Advantages:
- Smooth interior Dress.
- No retention of product.
- No contamination.
- Cleaning 150°.
- Sterilization of the product.
Applications:

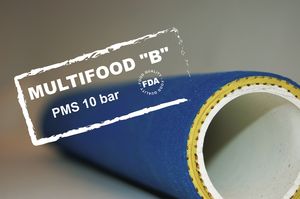

Very flexible blue rubber pipe external especially studied for the aspiration & repression of the milk of the cisterns.
|
|
- Piping: rubber and plastic for all industries
- Connectors: all types, sliding valves, flap valves
- Hose band: clamp or crimp |
|
STENFLEX hoses provide safe connections whether in process technology, offshore applications, mechanical engineering, building engineering or as part of conveying systems. We specialize in versatility. Using rubber, stainless steel and PTFE: we provide the right hose connection for each application.
Functions at a glance:
- flex in almost any length of hose
- high absorption of lateral and angular motion
- compensate for imprecise assembly |
|
| ... products without technical information |
| |
... see all the products in the category
Hoses
|
The PVC Fiber Enhancing Soft Pipe,also called gridding pipe and snakeskin pipe which is mainly used to convey the middle pressure or corrosive gas and liquid,it is widely used in such areas as mechanical engineering,coal mine,petroleum,chemical industry,agriculture irrigation,civil application(solar energy water heater,gas-jar),also it can be used in irrigating garden and lawn.
Main Technical Data
Model
65
45
Extruder
SJ65/28
SJ45/30
Diameter Range (mm)
ø16-ø50
ø6-ø16
Output(kg/h/extruder)
40-75
20-40
Installed Power (KVA)
40
30 |
|
- Steel wire reinforcing soft pipe for dust collector and Extension tube production line
- The unit is used to produce PVC soft pipe with steel wire reinforcing. The pipe wall is soft PVC plastic, in which there are spiral steel wire. The pipes have the strong point of pressure and corrosion resistance and antistatic. It is used to convey the pressure or corrosive gas and liquid, vent impure liquid. It is widely used in such areas as mechanical engineering, chemical industry, architecture, agriculture irrigation, vacuum device and dust collector soft pipe.
- Spiral soft pipe for dust collector production
- The PVC and PE spiral reinforcing pipe have the advantage of pressure and corrosive resistance, negative pressure and bend resistance. It is used to convey the gas, liquid and powder material. It is widely used in industry, agriculture, architecture, water conservancy irrigation and dust collector.
Main Technical Data
Model Extruder Pipe Range Installed Power(KVA)
45 45/30 ø12-ø25 15
65 65/30 ø25-ø50 32
90 90/30 ø50-ø75 49
100 100/30 ø75-ø102 69
120 120/30 ø102-ø156 84 |
|
Patent No.:01243874
• Special single screw extruder for polyolefin, having high extruding velocity and effective plasticization.
• Separation mixing screw specialized for polyolefin.
• Specially designed three co-extruding die, reasonable channel, smooth outside and inside wall, and little internal stress.
• Producing pipe limitÖ20-Ö160mm, manufacture velocity up to 16 m/min.
• May be used to produce HDPE silicon core tube, ordinary PP-R, PE and PEX pipes.
• Low cost: The cost of nanometer & anti-virus pipe is merely increase 5-10% on the ordinary pipe basis. |
|
We supply the PEX pipe extrusion line with the production of diameter 16 mm upto 63mm.
Introduction
This line mainly used for producing HDPE cross-linked pipe. HDPE cross-linked pipe has some excellent features such as heating resistance, aging resistance, high mechanical strength, anti-firing capability, environmental stress cracking resistance and good insulation capability, thus preventing oxygen diffusion and ensuring a high corrosion resistance and a longer service life. HDPE cross-linked pipe offers a wide range of application possibilities such as water conduits (heating systems, cold and hot water installation), conduits for the transport of fluid food (beverage industry), drinks and etc. so, HDPE cross-linked pipe is a new practical and economic product of high-tech which is a replacement in the fields of pipe.
Production skill procedure on simple, on before, production communication poly ether for more on two step skill, for pre two set crusher on pro production silicon alkyl receive branch material and catalyze material, then, two material mix with defined ratio, on the third sets crush out production communication poly ether tube material. The shortcoming of the skill only for complex production skill, more occupy on equipment, also short term for silicon alkyl branch material storage, sensitive on temperature and humid, prohibit under sunlight on etc, storage condition on strict, so many level influence normal operation and quality on products, with one step skill without the issues. |
|
We supply the HDPE Spiral hollow wall pipe extrusion line with the production of diameter 200 mm upto 3000mm
Inroduction of Pipe
Large diameter winding pipe (from 200mm to 3000mm in diam. ) has high ring stiffness and intensity of brunt due to its special structure. It possesses many advantages such as easy operation and low cost of assembling, tight juncture between the pipes, no pollution and so on. It is being widely used in sewerage and drainage system.
Features of Line
Extrusion theory for low temperature plastication compliant with material characteristic (heavier molecular weight)
Unique screw design of distance-changing and separation of solid material and melting material
Unique design of composite die-head, and two sets of extruder extrude PE for winding pipe
High quality of winding pipe produced by adopting the unique winding process for pipe forming
The glue extruder can be moved in up and down , left and right direction
With super high speed and large storage capacity
Multi control points: forming pipe extrusion, melting PE adhesive extrusion, winding and cutting process can be auto-tail controlled synchronously
Separately controlling two extruder and winding unit in tandem with two touch screens |
|
The single screw extruder is an important component in extrusion of polyolefin production. The concept of long L/D and two stage unique design ensure high plasticization, low temperature plasticization. It has following features.
- Mainly used to produce U-PVC, C-PVC Huge Calibre Pipe for Supply an Drain Water.
- Composed of double screw extruder, pipe die, vacuum sizing device, multi-pedrails hauling machine, cutting machine and stacker;
- Choose conical or parallel double screw extruder according to different demands
The main technique parameter
Model,Paramter
SJGF-160
SJGF-250
SJGF-400
SJGF-630
Extuder
SJZ60
SJZ65
SJZ80
SJZ92
Diameter range(mm)
ö63-ö160
ö110-ö250
ö200-ö400
ö315-ö710
Haul-off Speed (m/min)
0.8-10
0.5-5
0.3-4
0.2-3
Total Power(kW)
89
95
135
255
Total Length(mm)
20000
20500
28000
30000 |
|
|
