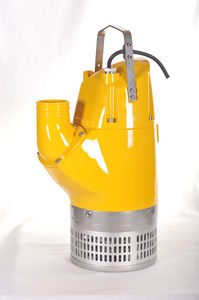

Electric submersible pump with double outer casing.
Protection class IP 68. Class F insulation.
Maximum submergence: 20m (65 ft).
Strainer hole 12 x 60 mm. |
|

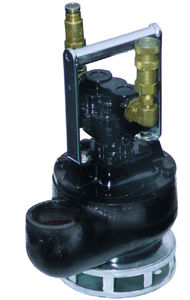

Without a doubt, Stanley hydraulic pumps exemplify the pure power of hydraulic tools. Our SM50 pump discharges an impressive 500 gallons per minute (1890 lpm) while it's small size allows it to fit in a box 11 inches deep by 10 inches square (26.7 cm x 25.4 cm).
Like our detwatering pumps, the pure power of hydraulic tools is also exemplified in our trash pumps. Our TP03 pump discharges an impressive 450 gallons per minute (1688 lpm) and can handle up to 3 inch (76 mm) diameter solids. Our TP08 discharges 800 gpm (3028 lpm) and can handle up to 4 inch (102 mm) solids. |
|

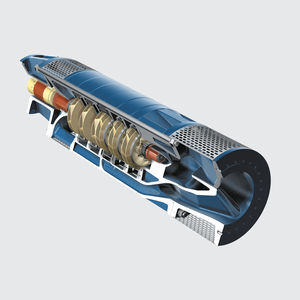

The EMU Bottom Intake Pump is the latest product of our program and combines the technical advantages of a submersible motor pump with the application possibilities of a shaft pump.
The pump was especially developed for the application in water treatment and irrigation plants, in mining and civil engineering, with off-shore systems, for pumping of low water levels.
The installation is simple and favourable in price, even with older stations, because the pump is directly flanged at the existing pipe line.
The performance range of our pumps lies betwenn a capacity of 150-1000m³/h ant tot. man. heads up to 150 m. |
|
This series of pumps covers an extensive performance range and can be used in a variety of applications: from pumping sewage in treatment plants and municipal applications, handling industrial effluent, process water and raw water, to applications in aqua and agriculture.
The standard version of these pumps is made in cast iron and for more demanding applications the pumps can be supplied in industrial configuration. The pumps are also available in explosion proof versions. An extensive range of hydraulic sections, including the impeller and volute, are available to handle different types of media. The capacities range up to approx. 2,700 l/s. A variety of drive units, with motor ratings up to 780 kW, are also available. |
|
The pumps are designed for:
- pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding.
- strongly contaminated liquids
- liquids which may also contain solids
- Neutral or aggressive media, such as alcalines, solvants, coolants, lubricants a.s.o
- Surface technique: washing, cleaning, degreasing, phosphating, pickling
- Machine-tool industry
- Environmental technology
- filtration and recycling technology |
|
These rugged, chemical duty pumps are available in CPVC (Corzan®), fiberglass reinforced Polypropylene, and PVDF. Precision molded, dynamically balanced, "enclosed" impellers allow pumping of abrasive solutions and operating against closed discharge valves.
|
|
Bibo
The BIBO range gives you a wide selection of submersible pumps that are robust, mobile and truly versatile.
Ready
The READY range of submersible pumps are light for portability, strong to resist corrosion and abrasion as well as lasting for reliable operation.
SX
Compact, light and low-maintenance, submersible drainage pumps in stainless steel for pumping clean or contaminated waters |
|
Pumpex drainage pumps are submersible to 20 m depth and have no suction lift limitations.
This is superior to any self-priming system due to the fact that the pump is installed submerged in the pit. The pump does not need to be moved with varying water levels and it is designed to run dry in case the water level drops too low. |
|
The D1 and DD1 are enhanced replacements of the durable SS1 series pump. The 1/8 HP motor with 1/2" diameter extended shaft and (4) precision machined pump mounting pads ensure trouble free performance for the more demanding industrial applications.
Precision molded, dynamically balanced, semi-open impellers with a unique "tandem" design allow for its ability to operate against closed discharge valves.
|
|
Worldwide application
All over the world communities and industries count on WILO submersible pumps for water supply and lowering of water level. Their mature technology has proved to be worthwhile in practice a thousand times. The advantages of these types are their slim construction, easy handling and the fact that no maintenance is required. The single- or multi-stage centrifugal pumps are directly installed in the pumped liquid. By precisely trimming the impellers it is possible to exactly determine the pumping duty required and so to achieve economical solutions for all pumping problems.
These are convincing arguments for the use of WILO Submersible Pumps. |
|
Introduction:

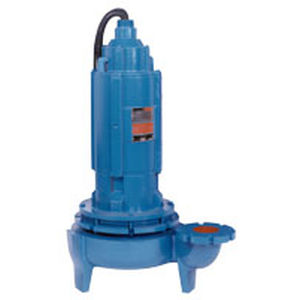

The type WQ pump is a single stage, single suction, vertical, centrifugal submersible sewage pump that is integrated with motor into one unit submerged in water to work.The type pump has advantages of compact construction, small volume, lightweight, easy installation and free movement.
Application:
It is designed for pumping the sewage at a temperature less than 40 and liquid containing solid particles (such as:Sludge, iron oxide, coal slurries.) medium and etc. |
|
PUMPEX new sludge pumps, series SK – is a complete range, from 3" to 6”, of heavy duty, transportable, sludge pumps in cast iron.
PUMPEX sludge pumps SK 65-155 are available in high head and high flow versions with submersible motors from 1.3 to 25 kW.
The SK range is an important extention of Pumpex well known SP sludge pump series.
Product benefits Pumpex SK pumps
Trouble free and safe handling
PUMPEX sludge pump SK is a portable pump and features a sturdy stainless steel handle and a robust ductile iron stand.
Non overloading performance
All SK sludge pumps can operate over the entire performance curve without overloading the motor.
Easy service and maintenance
Modular design through the complete range with interchangeable spare parts makes maintenance and service easier.
Dry running capability
A closed cooling system enables the PUMPEX SK 83-155 to run dry, with no damage to the mechanical seals or the motor.
Solids handling capability
The SK sludge pumps are fitted with free flow vortex impeller and pump housing that provides excellent non clogging performance.
High reliability
PUMPEX SK 83-155 have cartridge seal unit with double mechanical seals for long life even under the most demanding operating conditions.
Environmentally safe
The oil housing on the SK 65-80 is filled with environmentally safe white oil and l friendly protection coatings are used on all the surfaces.
Explosion proof option
All SK sludge pumps are available in explosion proof versions EExd IIB T4 and ATEX.
High flexibility
The pump can operate in any position, vertical or horizontal.
|
|
Slurry removal is an essential part of day-to-day
operations in a wide range of industries, such as
mining, ore dressing, sand contracting, ash handling
and steel milling.
The applications in these industries make heavy
demands on the slurry pumps, particularly in terms of
the costs incurred when it comes to wear and tear,
repairs and maintenance.
In this series of pumps the wet end, indeed all wear
parts, are made of hardened high-chrome cast iron,
which provides complete wear protection. The highchrome
impeller, incorporates a swept-back design for
sustained high efficiency and clog-free performance in
the most severe applications.
The drive unit can be easily detached from the wet
end for fast access to wear parts. And there is no
need to replace the entire wet end because the split
casing design enables the volute lining to be easily
accessed and replaced.
Flygt is the only manufacturer that offers its customers
a total solution for slurry handling. The pumps can be
supplied with an agitator and/or a mixer for a cleaner
sump. Optional internal cooling allows pumping down
to low levels, avoiding sediment build-up – we call it
Clean Sump Technology.
Slurry pumps have capacities of up to 350 l/s and
pump heads up to 100 metres. |
|
Amarex N
Our pumps and valves handle municipal and industrial waste water, keep buildings and property well drained, and serve in sundry pumped drainage systems.
Wherever and whenever waste water has to be handled, look to us for first-class solutions: pumps, valves, automation, drives and systems - all in application-geared designs. Impressive availability and economic efficiency for every application.
|
|
All of us need clean water
All the water man uses is returned to the natural water cycle and so rivers, lakes and ground water are threatened with pollution.
To avoid this is the task of sewage treatment plants. This task is difficult but it can be solved. In order to do this, they are assisted by WILO submersible motor pumps.
Competence in Sewage Plant Technique
We have been manufacturing submersible motor pumps for water treatment and sewage purification for purification for several decades.
Installed in sewage plants, storm water retaining basins or pumping stations, WILO pumps contribute worldwide help to solve sewage problems thoroughly.
- Pumping unscreened sewage
- Evacuation of grit collectors
- Pumping to digesters and thickeners
- Aeration of activated sludge and its circulation
- Circulation of hot sludge and digested sludge
- Pumping return sludge
- Skimming off excess sludge
- Pumping out ditches |
|

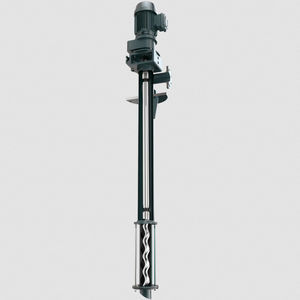

Brinkmann screw pumps reach pressures of up to 150 bar by utilizing highly wear resistant screw spindles and silicon carbide spindle housings.
Brinkmann high pressure screw pumps are designed for pumping filtered and lubricating fluids such as coolant oils and watersoluble coolants.
High pressure screw pumps are NOT designed for dry-running.
Screw spindles
High pressure
11 ... 450 l/min
20 ... 150 bar |
|
The pumps are suitable to transfer liquids containing impurities measuring up to 2-3 mm .The hydraulic components, namely the brass impeller and the aluminium scroll and pump body allow the pumps to be used with water, emulsions and oily substances in general with a maximum viscosity 3°Engler (21 CST). The temperature of the liquid must not exceed 90° C.
|
|
SPP Pumps manufactures a comprehensive range of hydraulic submersible pumps in the Hydra range. Covering the widest extent of applications with over 30 highly efficient pump ends, which are available in various material
options to suit the application. This provides the market with one of the largest ranges of hydraulically driven submersible pumps in the world. Driving these pumps is a range of over 25 power pack combinations to ensure optimum performance and efficient matching of the
overall package.
The design of the pump ends provide an enhanced performance and a range that covers medium and high head as well as high flow applications. The Autoprime Hydra product ranges from 32mm (1.25") to 450mm (18")
discharge with heads up to 130m (425ft) and flows up to 2,300m3/h (10,100 USgpm). |
|
These pumps are suitable for transferring clean liquids containing impurities measuring up to 2-3 mm.
The hydraulic components, namely the impeller, scroll and pump body in PBT. allow the pumps to e used with water, emulsions and oily substances with a maximum viscosity of 3° Engler (21 CST).
The temperature of the liquid must not exceed 70° C.
|
|
The pumps are suitable to transfer liquids containing impurities measuring up to 2-3 mm .The hydraulic components, namely the nylon impellerand scroll and the aluminium pump body allow the pumps to be used with water, emulsions and oily substances in general with a maximum viscosity of 3° Engler (21 CST). The temperature of the liquid must not exceed 90°C.
|
|

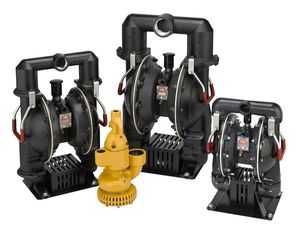

The SludgeMaster submersible, air-powered trash pump handles mud, leaves, twigs, sand, sludge, trash-laden water and soft solids to 1.5" (3.8cm). High capacity - low head. It weighs only 59 pounds (26kg), and can fit through an opening as small as 14" (35cm). Sturdy construction for rough handling and long life. Optional rock screen available.
Pipe Size: 3" / 80mm
Displacement Per Stroke: - gal / - ltr
Max. Flow per Minute: 300 gal / 1140 ltr
Max. Solids Handling: 1.5" / 38mm
Max. Discharge Pressure: - PSI / - BAR
The PortaPump submersible, battery-powered pump operates using any 12-volt car or truck battery. It comes equipped with cables and battery clips. Extremely portable, the pump weights only 33 pounds (15kg) and can fit through openings as small as 10" (25cm). Electrically safe and whisper quiet.
Pipe Size: 1.5" / 40mm
Displacement Per Stroke: - gal / - ltr
Max. Flow per Minute: 43 gal / 163 ltr
Max. Solids Handling: 1/16" / 1mm
Max. Discharge Pressure: - PSI / - BAR |
|
Quick suctioning immersion pumps equipped with the patented "BRINKMANN's Suction De-aeration System" are excellently suited to pumping extremely inflated fluids (emulsions resp. cooling/cutting oils) as they occur in heavy cutting when turning, milling or grinding.
Axial / semi-open impellers
Inflated fluids / slurping
25 ... 2750 l/min
5 ... 115 m |
|
Emptying of water traps and collection tanks of:
- Meteoric water
- Ground water
- Water discharged from dishwashers, washing machines and domestic appliances in general
- Emergency pumping out of cellars, underpasses and garages
- Applications in floricolture, horticulture and agriculture in general
- Industry in general |
|
Submersible pumps
Submersible pumps are ready to use because they do not need to prime: it is sufficient to submerge them in the water. They can operate partially submerged, and can therefore be left unattended overnight. They can pump dirty water with sand, mud and solids in suspension. |
|

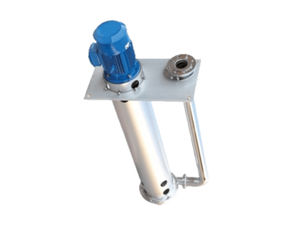

Immersion Pumps are plain centrifugal pumps with the impeller fitted on the driving shaft extension. The are mounted on top of the container, the pump extension being immersed in the coolant.
Semi-open impellers
Standard coolant pumps
25 ... 2750 l/min
4 ... 115 m |
|
| Suitable for lifting, pressurising and distribution in civil and industrial installations, autoclave and cistern inlets, fire fighting and washing plants, irrigation systems. Draws from wells, tanks or natural basins. |
|
Emptying of water traps and collection tanks of:
- Tanks emptying out
- Ground water
- Water discharged from dishwashers, washing machines and domestic appliances in general
- Emergency pumping out of cellars, underpasses and garages
- Pumping of waste waters
- Drainage
- Industry in general |
|

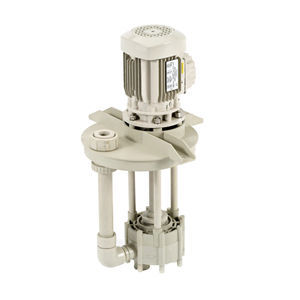

Thermoplastic vertical centrifugal pumps conceived for industrial applications, production lines and ecological facilities where resistance to chemical aggression must be coupled with reliability and easy maintenance.
Their particular construction eliminates the possibility of any contact between metal parts and the liquids, while the selection of materials and manufacturing technologies guarantees compatibility with the products handled a long operating life and conformity with the standards in force. The adoption of pumps with these characteristics eliminates, even in case of breaks, hazardous leaks and the need for openings on the bottom of the basins or tanks, allowing the absolutely safe pumping of chemical substances. |
|
| Sewage pump with cutting mechanism for pumping corrosive media. All parts coming into contact with the media are therefore made for V 4 A stainless steal. With cable protection hose and elstomeres of Viton as standard. |
|
Sprinkler Pumps with VdS Certificate
Submersible pumps with VDS approval are used for fire fighting in sprinkler installations.
The pumps are mostly installed horizontally in reservoirs which are equipped with a pump sump of corresponding size. Vertical installation in wells or sumps and dry installation (with booster shroud) are possible. |
|
|
|
