AUMA offers a range of actuators meeting virtually any valve automation requirement. A wide range of multi-turn actuators from 10 Nm through 32,000 Nm, part-turn actuators from 25 Nm to 360,000 Nm or linear actuators from
3,8 kN to 217 kN are available.
Various types of valves can be operated by rotation, swivel and linear movements.
|
|
For quarter-turn applications the IQT is designed for direct drive, and can be mounted at any operating angle. The rugged construction is double-sealed to prevent water and dust ingress even during site wiring.
Torque range 50 to 2,000 Nm (36 to 1,475 lbf-ft).
•Available for three-phase, single-phase or DC supplies.
•Variable output speed.
•Multiport controller option.
•Secure self-locking output for butterfly valves and dampers without the use of additional brakes.
|
|
Provides intelligent communication options and a multilingual display. The IQ actuator range offers multi-turn and quarter-turn isolating/regulating duty.
Torque range 14 to 3,000 Nm (10 to 2,200 lbf-ft) direct drive (multi-turn only). Higher torques when combined with IS or IB gearbox, up to 40,800 Nm (30,000 lbf-ft). Quarter-turn when combined with IW gearbox up to 250,000 Nm (185,000 lbf-ft).
•Complete integrated motor control.
•Simple non-intrusive, infra-red setup and adjustment.
•Digital, analogue or bus system remote control and status reporting.
•Comprehensive software tools for plant records and valve performance analysis.
|
|
|
Rotork Process Controls manufactures electric actuators for specialised processing and environmental control valve applications. The CVA and GPSA actuator ranges apply state-of-the-art electrical and mechanical technologies to the ‘smart’ operation of linear and rotary control valves demanding continuous, repeatable modulation, with a programmable fail to position option. The range demonstrates unrivalled control valve automation, combined with advanced, non-intrusive calibration and valve diagnostic technologies.
|
|
The GPSA is a low thrust, high precision linear actuator designed for use in chemical dosing and other process control applications where continuous modulation and tight accuracy are required.
Thrust range up to 890 N (200lbf).
•Stroke distance up to 35mm (1.375")
•Continuous unrestricted modulating duty
•HART, Profibus and Foundation Fieldbus available
•Temperature range from -20ºC to 65ºC (-4ºF to 150ºF)
•Automatic thrust limiting available
•Self locking drive system to hold in last position and prevent backdriving up to thrust rating
•Manual override as standard.
•Integral PI (Proportional & Integral) control.
•Adjustable speed.
•Output characterization.
•Password protection.
•Non-intrusive setup and calibration.
•AC input power (single phase).
|
|
J+J are first to market in their class with the new J3 Series IP65 weatherproof reversible part-turn electric actuators, introducing an LED light in the cover to provide continuous visible actuator status information, and with different flash sequences, provides simple and instant fault diagnosis. Also a first, is the function conversion kits which retro-fit to covert on-off function to either failsafe or modulating, or both.
The features compliment the retained functionality from the J2 Series actuators including multi-voltage capability and electronic torque limiting with auto gear relaxing, which were firsts in 2003 when the J2 was launched
|
|
"EH2" Medium Torque Actuator - Recommended for KZValves 3/4" to 3".
FEATURES:
- High quality, durable actuator housing rated:
NEMA 6P - Waterproof tested
NEMA 7D - Ignition Protection tested
- 12/24 VDC and 24 VAC operation available
- Available cycle times - .5 seconds to 8 seconds
- Hundreds of wiring combinations available
- Many different functionality variations
- 60 to 275 in-lbs torque
- Tough aluminum gear box with metal gears
- Actuator housing available with "indicator flag" or with "blank" lid
- Waterproof wire plug connectors
- Mountable at any angle
- 110V operation with AC adapter
- Private labeling available
- Customization available for your specific application!
|
|
"EH3" Compact, Low Torque Actuator - Recommended for KZValves 1/4" to 1".
FEATURES:
- High quality, durable actuator housing rated:
NEMA 6P - Waterproof tested
NEMA 7D - Ignition Protection tested
- 12/24 VDC and 24 VAC operation available
- Available cycle times - .8 to 12 seconds
- Hundreds of wiring combinations available
- Recommended for KZValves 1/4" to 1" valves
- 35 to 65 in-lbs torque
- Tough aluminum gear box with metal gears
- Actuator housing available with "indicator flag" or with "blank" lid
- Waterproof connector plugs
- Mountable at any angle
- 110V operation with AC adaptor
- Private labeling available
- Customization available for your specific application!
|
|
KZCO's heavy duty actuator, the EH5, has an operating range of up to 500 in-lbs. Use the EH5 on KZValves that include stainless steel and butterfly valves ranging in size from 1.5" through 6".
FEATURES:
- High quality, durable actuator housing rated:
NEMA 6P - Waterproof tested
NEMA 7D - Ignition Protection tested
- Wiring options include on/off, flow control, pot feedback and 4~20mA
- 12/24 VDC and 24 VAC compatible
- RoHS compliant solid state programmable circuitry
- Up to 500 in-lbs torque
- Tough aluminum gear box with metal gears
- Waterproof plug connectors
- Many different functionality variations
- NFPA 1901 compliant for fire industry use
- Private labeling available
- Customization available for your specific application!
|
|
Electric Actuator Type EA11
The EA11 is our basic version for the open-close operation of smaller torques. The electric actuator EA11 consists of a gear, a direct current motor, a base print as well as equipment for end stops in its standard version.
Electric Actuator Type EA21/31/42
The electric actuators EA21, EA31 and EA42 are not only excellent equipped but can make their point with very high torques. Therefore these actuators can be used to actuate a wide range of valves.
|
|
EAU Series
For use with Ball Valves up to 2"
Series EVR
For use with all sizes of Ball Valves and Butterfly Valves up to 4"
Series EJM
For use with all sizes of Ball Valves and Butterfly Valves up to 24"
Series EVS / EVT
For use with all sizes of Ball Valves and Butterfly Valves up to 12"
|
|
Schneider Electric Motion actuators position flaps, valves or sliders with great precision. The compact actuator housing contains a motor, a gearbox and a control unit. Three different types of actuators are available to respond to your specific positioning challenge:
STE = electronic actuator
STA = actuator with cams and relais
STM = actuator with cams
|
|
Greatork Electric intelligent valve actuator
Main Type: Quarter-turn, Part-turn, Linear
Greatork Actuators are widely used in the industries of valve, oil field, water treatment, waste water process and power plant etc..
Actuator design features:
Torque range from 50 Nm to 3000 Nm
Output speeds from 18 to 72 rpm
Limit and torque seating
Output drive types according to ISO standard
Available with 3-ph AC, 1-ph AC iother power supply such as 440V,110V,480V,etc..
Some advantages of our actuator:
1.SOC ( system on a chip)
2.Non-intrusive design
3. LCD display and Local Control
4. Emergency Shut Down (ESD)
5. Infrared Setting & Control Technologies
6. Safety Protection
7.Error Detect & Alarm Function
|
|
Electromechanical actuators for a simple and reliable control of the valve.
400 Series for non-rising stem applications.
401 Series for rising stem applications (output with or without axial thrust).
Main characteristics:
Torque range from 10 Nm to 12.000 Nm.
Output speeds from 2,75 to 224 rpm.
Torque and position setting.
Output flanges and bushes according to ISO 5210.
Handwheel for manual operation.
High degree of weatherproof protection IP67 (IP68 optional). High quality corrosion protection.
Wide range of switching and signalling options.
|
|

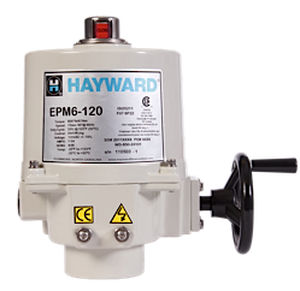

90 Degree Electric actuator with torques from 200 in. lb. to 1000 in. lb. NEMA 4 and 4X CSA listed.
|
|
Advantages:
• high torque output
• compact size
• minimum external control efforts
• solid metal casing
• numerous options
Description:
Because of the high breakaway resistance of many valves, the TA-Actuator 70 is
regulary equipped with a direct-current motor with a matching flow of torque.
The motor is controlled by reliable internal cam switches. A constant accuracy in the reproduction of certain rotation angles is achieved by an electronic brake.
The actuator is delivered with a complete wiring in order to reduce costs for external control equipment.
|
|
Advantages:
• high torque output
• compact size
• minimum external control efforts
• solid metal casing
• numerous options
Description:
Because of the high breakaway resistance of many valves, the TA-Actuator 120 is
regulary equipped with a direct-current motor with a matching flow of torque.
The motor is controlled by reliable internal cam switches. A constant accuracy in the reproduction of certain rotation angles is achieved by an electronic brake.
The actuator is delivered with a complete wiring in order to reduce costs for external control equipment.
|
|
Advantages:
• high torque output
• compact size
• minimum external control efforts
• solid metal casing
• numerous options
Description:
Because of the high breakaway resistance of many valves, the TA-Actuator 130 is
regulary equipped with a direct-current motor with a matching flow of torque.
The motor is controlled by reliable internal cam switches. A constant accuracy in the reproduction of certain rotation angles is achieved by an electronic brake.
|
|
|
A full range of electric actuators are available, to suit the Tomoe valve range. From 1 Phase IP67 models to 3 Phase Explosion/Flameproof models, all sized and matched to customer specifications and the Tomoe valve characteristics.
|
|
PREMIO 2,2kN,PREMIO 5kN
Electric actuator ARI-PREMIO
Application : Industrial installations, processing technology, plant manufacturing, etc.
|
|
|
corrosion-resistant design. Three offerings with 13 models for torque outputs to 22,125 lb-in. Compact and lightweight with NEMA 4, 4X, 7 and 9 rated housings available, as are numerous control options and position indicators..
|
|
|
|
|
|
Metso Automation’s Valvcon V-Series is a compact, rugged, reliable electric actuator designed for quarter-turn valve and damper applications and is available in both NEMA 4/4X and NEMA 4/4X/7&9 configurations. Notable features include all hardened steal spur gears, standard ISO 5211 mounting interfaces and CSA Certification to both Canadian and US Standards.
Other features include full access to cams and limit switches, 75% duty cycle, fuse protection for inputs and outputs, internal thermal-overload protection, wrench-operated manual override and visual position indication.
The plug-in Control Board option for modulating applications incorporates innovative features such as simple push button set up, auto calibration, selectable input control signal, position feedback signal, and signal fail position selection. Other standard features include local push button control, adjustable dead band, adjustable speed control, and locked output stall protection. The Control Board can be easily configured for reverse acting and split ranging control without any wiring changes.
Other options and accessories include the Iso/Readback and Speed Control/Timer Board options, a holding brake, tropical and standard heater/thermostat options, fully adjustable auxiliary limit switches and a declutchable handwheel override. All of the options are designed for easy field installation. The V-Series is available for valve and damper service up to 3000 inch pounds (250 lb-ft) of torque.
|
|
|
The EL3500 series actuators are suitable for on/off control, modulating control with valve motor drive controller or modulating control with its integral valve positioner electronics.
|
|
Actuators
An extensive range of pneumatic, hydraulic and electric quarter turn actuators for all valves within the Tyco series. Incorporating features to ensure trouble free operation with long life expectancy, pneumatic, hydraulic and electric actuators ensure high performance and smooth operation in all application duties.
Pneumatic Actuators
* Rack and Pinion
* Scotch Yoke
* Heavy Duty Scotch Yoke
* Double / Single Acting
* Fail-safe
Electric Actuators
* Compact economical
* Heavy duty
* Quarter / Multi-turn
* Fail-safe
Hydraulic Actuators
* Double Acting
* Fail-safe
* Subsea
|
|
Size Range ......................... C15 - C75
Torque Output: .................. 10 Nm - 2,600 Nm (81 in-lb -23,800 in-lb)
Air Supply Connection: ... Namur G1/4"
Accessory Top Mount: ... Namur VDI/VDE 3845
Valve Bottom Mount: ...... ISO 5211, DIN 3337
Quality Standards: ........... ISO 9001 certification
Certifications: ................... ATEX 94-9-EC approved to category 2
Health & Safety: ................ Built-in safety features for maintenance and handling
Other Features: ............... Space saving, fast acting, Superior corrosion resistance, Balanced piston forces.
Nested spring sets: ........ 8-12 spring combinations for various operating pressures.
Less air consumption, Less wear, Limit stop for
+/-5° and intermittent stop, Highly visible indicator and puck with flow direction arrows
|
|
Control and serial communication options, encompassing Rotork’s proprietary Pakscan and open systems including Profibus, Foundation Fieldbus, Modbus and DeviceNet, complete an unbroken chain of Rotork reliability from the valve to the control room and, via Ethernet, to anywhere on the planet.
Provides intelligent communication options and a multilingual display. The IQ actuator range offers multi-turn and quarter-turn isolating/regulating duty.
Torque range 14 to 3,000 Nm (10 to 2,200 lbf-ft) direct drive (multi-turn only). Higher torques when combined with IS or IB gearbox, up to 40,800 Nm (30,000 lbf-ft). Quarter-turn when combined with IW gearbox up to 250,000 Nm (185,000 lbf-ft).
•Complete integrated motor control.
•Simple non-intrusive, infra-red setup and adjustment.
•Digital, analog or bus system remote control and status reporting.
•Comprehensive software tools for plant records and valve performance analysis.
|
|
Available in double-acting and spring-return configurations The RC range is an extremely compact pneumatic actuator. Its scotch yoke design is particularly suited for valves with high start or end torque requirements. With torque output up to 4,400Nm (38,700 lbf-in)
The RC200 range is available in a variety of configurations and an extensive range of options and accessories is available.
|
|
Modulating actuator 2SB6...
• Force 2 to 25 kN
• Stroke 10 to 100 mm
• positioning speeds 13,5 to 50 mm/min
Standard design
• intermittent duty S4 min. 30% duty cycle max 600 c/h
S5 min. 30% duty cycle max 600 c/h
• optional: short-time duty S2-2 min for open-loop control
• duty acc. DIN VDE 0530, part 1
• Temperature range –20 to +60°C
• Protection class IP 65 acc. to DIN 40050 / IEC529
• hand wheel for emergency operation (disconnected
during normal operation)
• preloaded belleville springs to maintain the closing force
->Minimum axial driving rod vibration in case of
unfavorable flow conditions in the valve
• double-acting, coercive controlled, load dependant
tripping in the end positions and the stroke
->Damage protection for the valve in case of eg.g debris
between the valve seat and the valve trim
• absolute self-locking of the driving rod
• optional position electronics
|
|
|
|
|
|
Description standard features
• intermittent duty S4 / S5 min.25% duty cycle, 1200c/h
acc. to DIN EN 60034, protection class IP67
• motor insulation class F, temp. range -20°C to +60°C
(-4°F to +140°F)
• „non intrusive“ for PROFITRON (after adjustment of the
end positions of the valve)
• hand wheel for emergency operation (disconnected
during normal operation)
• PROFITRON: 3 reference force-stroke of the valve can
be stored
• electronic motor protection, automatic phase sequence
correction
• frequency range of the power supply 47 to 63 Hz
• 24 V DC supply for electronics unit possible
• analog actual position value (0/4...20mA)
• travel limits continuously adjustable
• force dependent cut-off adjustable in 10% steps from
70% to 100% Fmax.
• travel speed adjustable in 7 steps,
step-up distance factor 1.4
• self-acting cut-off (depending on cut-off force, travel
distance, etc.)
• soft starting for high positioning accuracy (starting
current less then rated current)
• indication that actuator is in operation
• separate mounting of the electronics unit possible
• external screws stainless steel
• documentation in German/English: operating instructions
• programming by customer possible
|
|
|
|
