The UV series vacuum pumps, complying with international regulations, are valued in many industrial applications thanks to their low life cycle cost, safety, environmental compliance, low noise level, compactness, high performances, design simplicity, reliability and durability.
Some applications are: metal can production, electronics, food processing, food packaging, glass containers moulding, plastic / rubber, polymers production, EPS, drying processes, thermoformning, printing and paper etc. |
|
DOUBLE VANE PUMPS
FOR PRESSURES UPTO 320 BAR (4650 psi) AND
SPEEDS UPTO 3600 RPM
DISPLACEMENTS- 12.5 TO 540 CC (0.75 TO 32.80 cu.in) |
|
Dry running and self-lubricating rotary vane pump. Low vibration, nearly pulsation free, compact and in some cases reversible. Mainly used as a vacuum pump.
Free flow: 200 l/min max.
Pressure: 1.4 bar max.
Vacuum: -930 mbar rel.
|
|
| Their special design with low weight and small dimensions make the UVD units extremely compact and reliable. This is achieved through the direct assembly of rotor on motor shaft and a powerful centrifugal fan for cooling. UVD vacuum pumps are suitable for evacuation of small, closed systems with residual pressure of up to 120 mbar. |
|
These pumps have a number of vanes that are free to slide into or out of slots in the pump rotor. When the pump driver turns the rotor, centrifugal force, push rods, and/or pressurized fluid causes the vanes to move outward in their slots and bear against the inner bore of the pump casing forming pumping chambers.
As the rotor revolves, fluid flows into the area between the vanes (pumping cambers) when they pass the suction port. This fluid is transported around the pump casing until the discharge port is reached. At this point the fluid is squeezed out into the discharge piping.
|
|
Dry running and self-lubricating rotary vane pump. Low vibration, nearly pulsation free, compact and in some cases reversible. Mainly used as a vacuum pump.
Free flow: 200 l/min max.
Pressure: 1.4 bar max.
Vacuum: -930 mbar rel.
|
|
VANTAGE
DC fuel transfer pumps
The all new DC pump for plant equipment featuring new innovations in design and compact in size, incorporating a new level of pump intelligence allowing the pump to monitor its own activity and performance.
Studies have shown that, in the majority of cases, fuel-transfer pumps break down because of improper handling by users, including excessive or extreme use, accidental start-ups, or simple carelessness, that can leave the pump running for hours on end. Breakdowns translate into loss of time and money while waiting for the pump to be repaired. These difficulties are overcome with VANTAGE. Thanks to new, internationally patented technology, VANTAGE automatically prevents situations from becoming critical. |
|
TRIPLE VANE PUMPS
FOR PRESSURES UPTO 300 BAR (4350 psi) AND
SPEEDS UPTO 2500 RPM
DISPLACEMENTS-24 TO 560 CC (1.45 TO 35 cu.in)
|
|
PUMPS
We offer all types of hydraulic pumps - gear, vane and piston pumps, applied in stationary and mobile machines.
Pumps of the following types may come as one- and multi-section pumps. To supplement the pumps we sell, we also offer a wide range of connectors and couplings.
We also offer repairs of the pumps we produce.
Primary performance data:
Operating pressure:
gear pumps - up to 25 MPa
vane pumps - up to 16 MPa
piston pumps - up to 28 MPa
Capacity:
gear pumps - up to60 cm3/rev.
vane pumps - up to 100 cm3/rev.
piston pumps - up to 100 cm3/rev. |
|
Self-controlling vane pumps type PSV
Special features: Long service life due to hydrodynamic, spherically located friction bearings
Low tolerance between adjustment and spacer ring = minimal oil leakage
Almost constant oil leakage over the compete pressure range due to hydraulic play compensation
Technical specifications:
Installation position: Unrestricted. The pump drive shaft must not be subjected to radial loads.
Operating temperature: To prevent corrosion, the oil temperature in the tank should not exceed 55°C.
Suction: 152 mm HG
76 mm with aqueous fluids
Operating pressure: Max. 140 bar
Pressure limits: A pressure control valve should b e used with pressures in excess of 100 bar, as this would guarantee higher service life of the pump with high pressure peaks.
Direction of rotation: The SV pumps are available with clockwise and counter-clockwise rotation. The respective direction of rotation is marked by arrows located on the side of the pump housing. The direction of rotation is seen from the end of the shaft.
Pressure fluids: HLP - Mineral oil i.a.w. DIN 51525
Filtering: to ensure long service life of the pump, a return line filter with a mesh of at least 1 my is recommended. Suction filters should not be used. |
|
The G2000 is a fixed flow, heavy duty, transfer pump. It is available in a variety of materials to suit various fluid types.
Capacity up to 500 M3/hr 2200 USGPM
Pressure up to 40 Bar 580 Psi
Viscosity up to 1,000,000 cSt 4,630,000 ssu
Temperature -40 to +300 C 570° F
|
|
CUBE 70 MC has been designed and manufactured to cater for the demand for a compact diesel-fuel dispenser for private use that is easy to install, ensures fast and precise dispensing and can only be used by qualified personnel. A dedicated software permits exporting data to a PC.
The compact body contains the nozzle holder, the pump and the meter.
The electronic unit is able to control up to 50 users, including by means of a magnetic key, and permits dispensing with preselection. Data can be downloaded into a PC both by means of the magnetic key and by cable connection.
CUBE 70 MC can be fitted to a wall, directly on the tank by means of the quick coupling or on a column. In terms of low running costs, compact dimensions and flexibility, together with all-round efficiency, CUBE 70 MC is a truly unique dispens |
|
Technical Features :
-exclusive technology : tailor made pumps precisely adjusted to requested flow and pressure
-implementation from liquid to viscous fluids but above all very good ability to pump high viscous products (up to 50 000 cSt)
-no damage to the product while pumping (no shearing effect)
-high capacity to pump fluids containing particles(up to 500 µ for solid parts and up to 10 mm for soft parts)
-synthetic pump range :polyester cristallin and stainless steel ; 100% food compatible and specially adapted to high viscous food products
-pump ATEX certified
-pressure up to 20 bars
-self priming pumps and high suction capacity due to stator eccentricity
-very long time expectancy with greasy products( 30 to 40 years)
-possibility of very low dischargment (0.5 liter/hour) and up to 30m3/h
-easy reverse plus system (unchanged flow sense whatever the rotation sense)
-easy and not expensive maintenance due to the pump design
-adjustable safety by-pass possibility on the complete pump range
|
|
The P2000 rotary pump is specifically designed for space constrained installations, or where a simpler belt-driven design is preferred. The P2000 rotary pump is available in two different designs :
Inboard roller bearing configuration with single mechanical sealing for duties involving lubricating liquids, such as Fuel Oils, Vegetable Oils, Lube Oils, and Additives.
Inboard plain bearing configuration with gland packing for duties involving non-lubricating liquids, such as Molasses, Resins, and Polymers.
|
|
Viking Pump presents its innovative LVP Series stainless steel Vane Pump. With 14 Bar (200 PSI) thin liquid capability, and capacities up to 36 M3/Hr (160 GPM), the new LVP pumps are designed for corrosive, thin liquids at higher pressures than other positive displacement pumps. Exceptional performance, advanced durability, application flexibility, ease of installation, and ease of maintenance helps users realize enhanced productivity, and a lower total cost of ownership.
The LVP Series is a true, industrial-duty product with exceptional performance for corrosive, low viscosity liquids. Designed to minimize life-cycle costs, its 62 Rockwell C surface-hardened stainless steel casing reduces casing and vane wear. Its standard chrome oxide coated shaft and silicon carbide bushings are extremely hard and long lasting. Its PEEK® vanes offer high strength, low friction for less wear, and broad chemical compatibility. Its maintenance-friendly design allows complete draining and easy vane or seal replacement without removing the pump from its system.
The LVP series is available in a metric-standard design, with DIN flanges, IEC motor mount, and metric-standard shaft seal options, or with ANSI flange ports, NEMA motor mount, and inch-standard seals, and can be foot mounted. |
|
The variable volume and pressure compensated design simplifies circuit design, reduces heat and noise, and can lower horsepower requirements. These rugged PVR vane pumps feature compact design and excellent horsepower to weight ratios, and are known for being the medium pressure workhorse in the industry. PVR pumps maintain constant pressure while matching system flow demands.
A direct spring operated compensator provides fast response for varying system demands and eliminates contamination prone hydraulic assisted compensator valves and pistons. The patented "Walking Ring" design is a unique indexing pressure ring design that rotates slightly with every change in output. Wear is distributed evenly around the inside surface of the ring circumference, which helps to extend pump life.
Hydrodynamic journal bearings eliminate shaft to bearing contact, and since there are no moving parts with this bearing design, pump life is not determined by a B-10 rating. Balanced vane tip loading acts throughout the entire pumping cycle to extend ring and vane life. The one piece forged rotor shaft can absorb system loads with minimal deflection.
To simplify maintenance, the patented pressure balanced thrust plate eliminates the need for shims and spacer units, and yields pump efficiencies up to 90%. Computer designed porting reduces noise at all pressure and flow levels with noise levels as low as 68 dBa [NFPA T3.9 12M-1970 (R1981) Tested]. This can help eliminate the costs for special noise abatement enclosures.
Specifications
Mountings:
PVR6 and PVR15 series feature SAE 2 Bolt and manifold mountings
PVR50 series features the standard Continental 4 bolt mount, as well as an SAE ' D' 4 bolt mount
Capacities: 4 to 70 GPM
Operating Pressures: 100 to 2000 PSI
Pressure Compensation Ranges: 100 to 2000 PSI
Recommended Fluids:
Petroleum-base, most phosphate esters, water emulsions and water glycol |
|
We offer a complete range of synthetic pumps made out of polyester cristallin and stainless steel, 100% food compatible ans specially adapted to high viscous food products.
MPC 30 - 65
Synthetic motorpumps out of polyester cristallin and stainless steel
Raw material 100% foodcompatible
Specially adapted to high viscous products
Max Pressure 3 bars
Max flow 1 950 L/h
Option: Dosage |
|
Parker CK cartridge kits are used in the PFVI and PFVH series fixed displacement vane pumps for application on mobile and industrial hydraulic equipment. These cartridge kits are completely assembled and tested for quick and cost effective service of the pump in the field.
The CK**PFVH (mobile) is a 10 vane cartridge designed to meet the higher operating pressures and shaft speeds of mobile equipment and the CK**PFHI (industrial) is a 12 vane cartridge designed for use in the quieter in-plant environment. Flows from 5 to 60 GPM @ 1200 RPM with operating pressures to 3000 PSI can be achieved.
|
|
| The U2000 rotary pump is specifically designed for systems or processes where infinitely variable flow from 0-100% of the rated pumps capacity is required. The U2000 achieves this with a variety of Control Types,without the need for speed variation devices, bypass lines/loops or control valves. Our patented Constant Pressure Control (CPC) pump will operate against a closed valve. |
|
KT6CC DOUBLE VANE PUMP
Intensive pressure:350 bar
Continuous pressure:275 bar
Maximum RPM:3000 RPM
Displacement:21.3/26.4/34.1/37.1/46/58.3/63.8/70.3/79.3/88.8/100
*Installation dimensions compatable with Dension pump
|
|
KT6C SELECTED highest pressure and utmost RPM vane pump
Intensive pressure:350bar
Continuous pressure:275 bar
Maximum RPM:3000RPM
Displacement:21.3/26.4/34.1/37.1/46/58.3/63.8/70.3/79.3/88.8/100
Application:
Ocean going and Marine equipment, construction equipmnet
Scrap balers equipment, Construciton equipment, oil explortion
machine, Oil exploration equipment, presses and shearing machines
* Installation dimensions compatable with Dension pump
|
|
Feature:
Max. Pressure:245 kgf/cm2
Max. Speed :1800 RPM Min. Speed: 600 RPM
Application: Hydraulic press machine, fishing boat,
lift truck, plastic injection machine.
For detail product dimensions, performance characterisitics and order code, please visit our web site:www.kcl.com.tw |
|
Our vairable displacemnet vane pump series have designed seven different out put flow for various
application. Such as 8, 12, 15, 20, 23, 26, 30 and
60 litre per minute at 1800 RPM
Pressure adjusting range:1. 5-18 kgf/cm2
2. 15-35 kgf/cm2
3. 30-55 kgf/cm2
4. 50-70 kgf/cm2
Application: CNC Machine Tool, special purpsoe machines
and all cuting machines.
For double pumps and all dimensions, please visit our
web site: www.kcl.com.tw
|
|
Model: 50 T and 150T
running speed from: Max. 1800 L/min. Min. 900 L/min.
Max. Pressure from 70 to 105 kgf/cm2
Delivery flow at no load pressure: from 9 to 139.6 L/min.
Application: special for surface grounding machine and
rubber machines.
For detail dimensions, performance characterisics please
visit our web site: www.kcl.com.tw |
|
DVQ-20 low noise, excellent performance high pressure pump
The maximum pressure can reach 270 bar
Displacements: 17, 23, 26, 32, 38,44
Apply to:hydraulic press brake, shear, bending and steel sheet forming machine.
* Installation dimensions compatable with Atols pump |
|

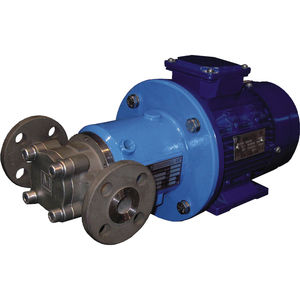

Materials
Wetted parts AISI 316 Internal cartridge phenolic graphite as standard Internal cartridge Special Carbon w/Sic Brgs. Bracket aluminium / WCB Special alloy: Hastelloy, Incoloy, Titanium
Technical Data : Flow Rates up to a 3m3/h Total delivery heads up to 13bar Temperature Ratings up to 200°C Pressure rating up to PN 25
Construction
Sliding vane pump for general applications Permanent Magnet Drive system Separation of liquid chamber/atmosphere by means of an isolation shell Synchronous drive transmitted by inner magnet and outer magnet system TOP-TOP connections with integrated by-pass
Applications
Pumping acids, hydrocarbon, diathermic oils, liquid gases, dangerous fluids, explosive, toxic.
Further material available if request
Various materials from the standard special Constructions
|
|
Vane pumps, fixed displacement
Types PVV, PVQ:
- Sizes 18 to 193
- Low operating noise
- Low flow pulsation
- Suitable for wide speed and viscosity ranges
- Combination of several pumps possible
- Can be combined with axial piston pumps and internal gear pumps
Vane pumps, direct operated
Type PV7...A:
- Sizes 10 to 25
- Very short control times
- Low operating noise
- Lower zero stroke power
- Mounting and connection dimensions according to VDMA 24 560/1 and ISO 3019/2
- Good efficiency
- Pump combination possible
Vane pumps, pilot operated
Type PV7:
- Sizes 14 to 150
- Variable displacement
- Low operating noise
- Pressure and flow can be controlled
- Controller actuator can optionally be locked
- Low hysteresis
- Very short control times
- Pump combination possible with standard pumps
- Mounting and connection dimensions according to VDMA 24 560/1 and ISO 3019/2 |
|
| The KTM series has been recently planned and manufactured with vanguard technical solutions and with materials of high technology. This series is composed of 4 models (KTM 1200, KTM 1500, KTM 1800 and KTM 2300) with capacities from 21500 lt/min. to 36300 lt/min. and it is available in versions HFR and PFR. The Exhausters/Compressors are equipped, as series, with an automatic lubrication system and, on request, with a water-cooling system on the body and flanges too. The building characteristics of Exhausters/Compressors of KTM series allow a continuous use. There are also available many fittings to complete the application. |
|
|
|
