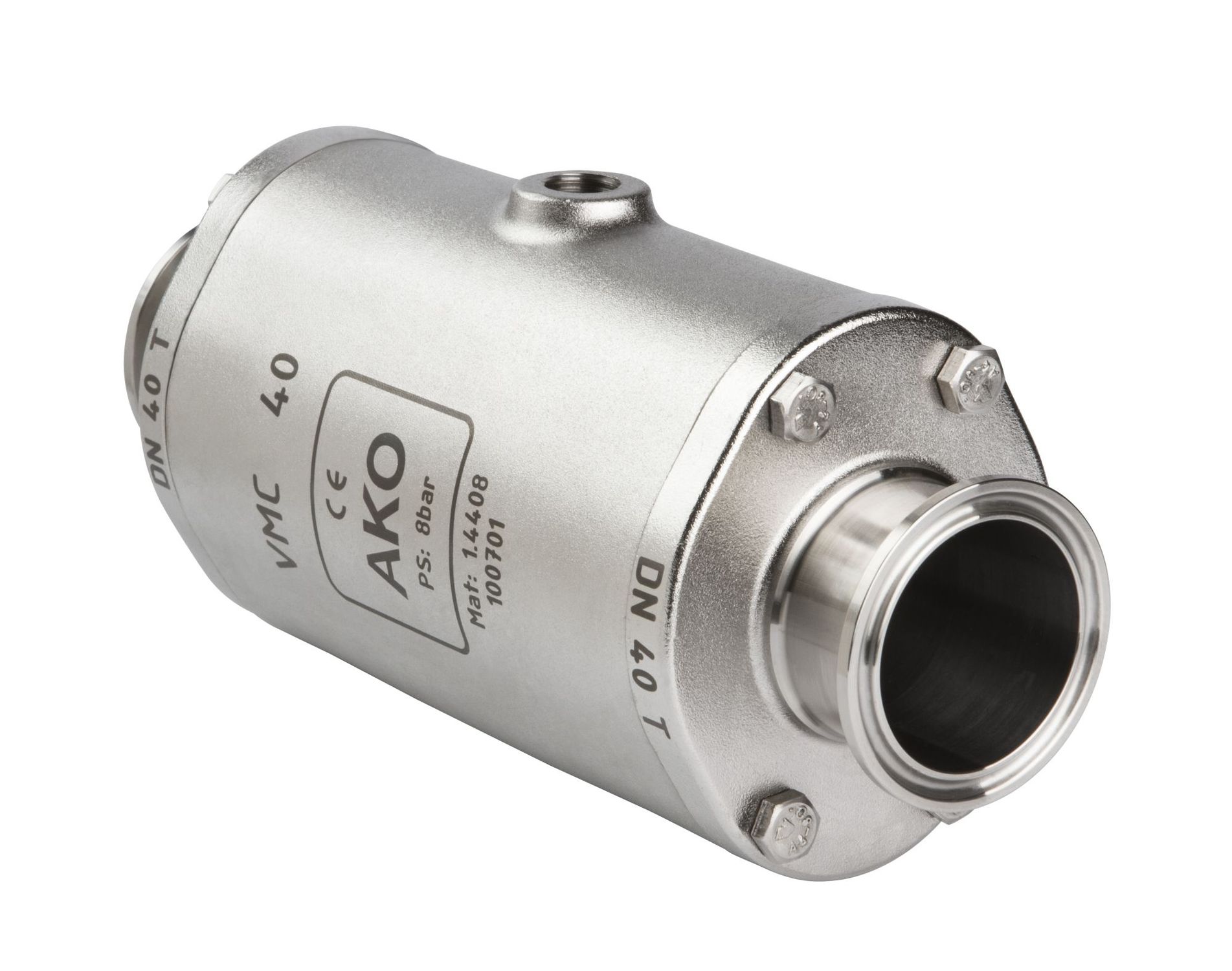

Air operated pinch valve with tri-clamp connection
DIN 32676
AKO ARMATUREN
The air operated pinch valves with tri-clamp of the VMC series are available in the nominal diameters of DN010 to DN50.
They are designed as standard with Tri-Clamp connections according to DIN 32676. On request the VMC series of air operated pinch valves can also be provided in compliance with DIN 11853-3 and DIN 11864-3 Form B.
Valve face to face length:
DN10: Acc. to DIN EN 558 row 27
DN15-50: Acc. to DIN EN 558 row 1
The multi-functional modular design allows a flexible exchange of the two available housing in aluminum (AlSi10Mg) or stainless steel (1.4408).
The end covers are made of stainless steel (1.4404).
The new VMC air operated Pinch Valves meet all requirements and standards of the European Directives specifications eg PED 97/23/EC.
