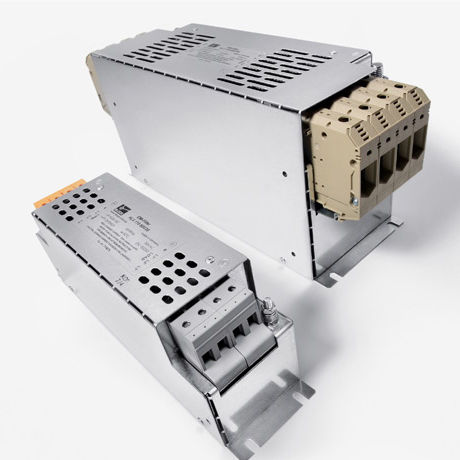

low-pass electronic filter / passive / screw-in / three-phase
HLV 810 series Block Transformatoren-Elektronik

{{requestButtons}}

Characteristics

  • Bandwidth:

    low-pass

  • Type:

    passive

  • Other characteristics:

    screw-in, three-phase, radio interference suppression

  • Current:

    8 A, 30 A, 12 A, 16 A

  • Voltage:

    520 V

  • Frequency:

    Max.: 60 Hz

    Min.: 50 Hz

Description


General Data

Rated voltage 3 x 520 Vac
Voltage range 0 ‑ 3 x 520 Vac
Rated current 3 x 8 ‑ 3 x 250 A+N
Degree of protection IP 20
Leakage current 0 mA

Advantages

For enhanced requirements
Single‑stage filter concept
Efficient filter effect against line‑bound interference emissions
Increase in the interference immunity of the connected consumer
