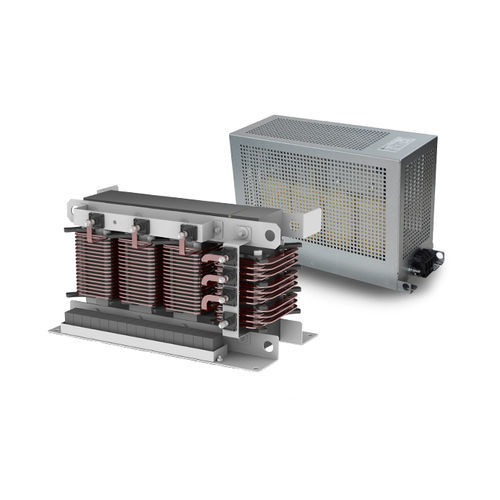

Band-pass electronic filter SF4-CD006-500-2passivemotorcommon mode
Add to favorites
Compare this product
Characteristics
- Bandwidth
- band-pass
- Type
- passive
- Other characteristics
- motor, common mode
- Frequency
Max.: 150 Hz
Min.: 5 Hz
- Voltage
Max.: 500 V
Min.: 0 V
Description
General Data
For motor rated output 2.2 - 45 kW
Degree of protection IP 00 / IP 20
For switching frequencies ≥ 4 kHz
Insulation class H
Rated current 6 to 110 A
Ambient temperature 14 °F / -10 °C to +113 °F / +45 °C
Benefits
Increase of motor lifetime
Improves conducted and radiated electromagnetic interference (150 kHz - 300 MHz)
Unshielded motor wires can be used
Optimized drive efficiency
Major reduction of leakage currents
Elimination of bearing currents
Standards
Approvals
UL 508 (E219022)
Applications
Sine filter for the suppression of differential mode interference and common mode interference.
Catalogs
No catalogs are available for this product.
See all of Block Transformatoren-Elektronik‘s catalogsOther Block Transformatoren-Elektronik products
EMC-Filter/Reactors
