. Nozzle Ø : 1 ; 1.2 ; 1.4 mm
. Vacuum levels : 60% et 85%
. Suction flow rate : up to 92 Nl/min
. Field bus : PROFINET - EtherNet/IP
. Integrated pressure regulator (ASR)
. Integrated vacuum regulator (ASC)
. M8 connections
. Individual or Island Modules

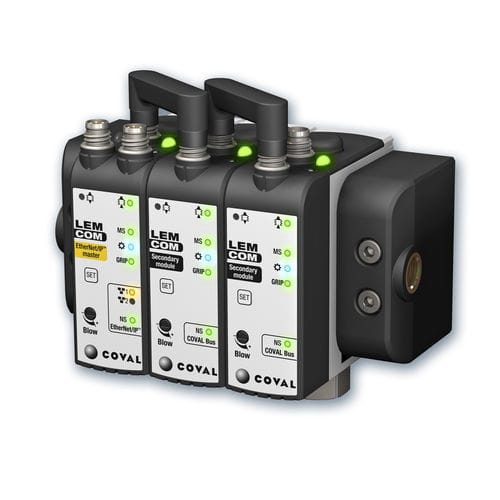

In a world where everything is connected, COVAL is innovating once more by unveiling the LEMCOM series: the first vacuum pump on fieldbus. The LEMCOM establishes a verified remote communication between the operator
and the vacuum pump, with three possible fieldbus choices, PROFINET and Ethernet/IP. ThIs allows the operator to receive real-time information and more importantly respond at all times to configure, diagnose and maintain the operation.
Advantages
. Easy implementation: Plug & Play, custom configuration for every type of application.
. Maximum automatic energy savings:
ASR: 40% savings for porous products.
ASC: 90% savings for airtight products.
. Compactness: LEMCOM vacuum pumps are the most compact on the market.
. Short response times: Installed in close proximity to vacuum cups.
. Dust resistant: Non-clogging through-type silencer.
. Safety: Product gripping is maintained even during power failure.
. Supported buses: PROFINET and EtherNet/IP
. Wiring simplified: 2 cables are capable of managing 1 to 16 modules.
. Settings and diagnosis via remote monitoring.
. Nearly unlimited arrangements (stand-alone modules, island assemblies or remote modules).
