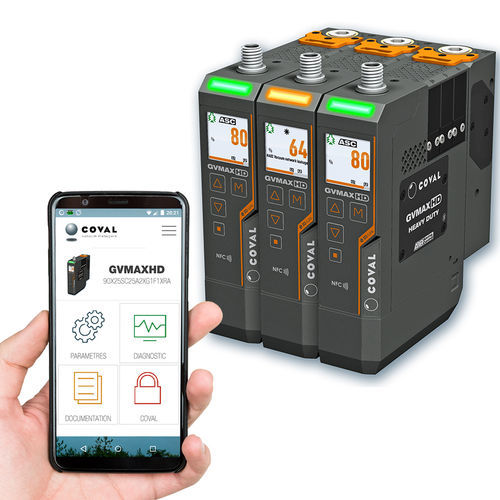

Venturi vacuum pump GVMAX HD
drysingle-stagefor the plastics industry

Venturi vacuum pump
Venturi vacuum pump
Venturi vacuum pump
Venturi vacuum pump
Venturi vacuum pump
Venturi vacuum pump
Venturi vacuum pump
Add to favorites
Compare this product


Characteristics

Technology
Venturi
Lubrication
dry
Number of stages
single-stage
Applications
for the plastics industry, OEM, for industrial applications, for packaging, for robots, for automation, for automobiles
Other characteristics
compact, high-performance, high-flow, pneumatic, low energy consumption, adjustable
Ultimate vacuum

Max.: -850 mbar
(-12.33 psi)

Min.: -850 mbar
(-12.33 psi)

-850 mbar
(-12.33 psi)

Flow rate

Max.: 230 l/min
(60.76 us gal/min)

Min.: 185 l/min
(48.87 us gal/min)

Description

Heavy Duty Communicating Vacuum Pumps, GVMAX HD Series COVAL’s GVMAX HD series Heavy Duty communicating vacuum pumps are the result of many years of listening, discussions and feedback from manufacturers, integrators and users from the automotive, aerospace and packaging industries. Our GVMAX HD vacuum pumps meet their expectations in terms of power, robustness, easeof-configuration and use, communication and modularity, all while remaining compact and light for easy integration in a smart factory. Advantages . Robust: Resistant to the harsh environments of metal stamping and sheet metal production lines . High performance: Optimized Venturi system that guarantees powerful suction flow rates and reduced evacuation times . Modular: Easy maintenance; SMART SWAP quick-mounting system . Communicating: Efficient communication system for all use levels, clear and easy-toread HMI, NFC technology for mobile use, and IO-Link communications interface for straightforward networking Main Specifications . 85% vacuum . Vacuum control: NC, NO or pulse-triggered bistable control . Powerful suction flow rates: - Dia. 2.5 mm nozzle  185 Nl/min - Dia. 3.0 mm nozzle  230 Nl/min . Blow-off: Standard or powerful, controlled or automatic timed . Non-return valve . 1 or 2 M12 connectors . Degree of protection: IP65 . Standalone vacuum pumps or in island assemblies Safety, Productivity, and Flexibility at every step of manufacturing
