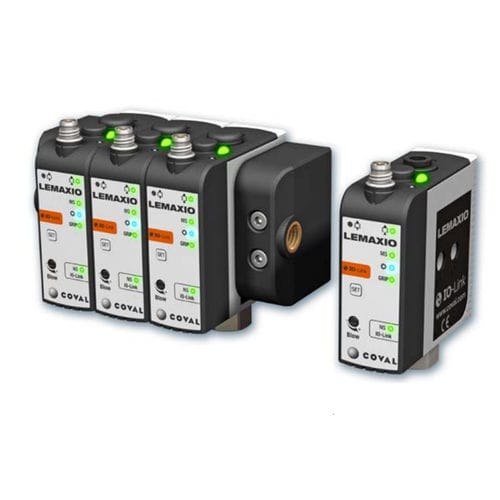

Venturi vacuum pump LEMAX IO series

lubricated24VDCsingle-stage

. Nozzle Ø: 1 ; 1.2 ; 1.4 mm . Vacuum level: 85% . Suction flow rate: up to 70 Nl/min . Integrated pressure regulator (ASR) . Integrated vacuum regulator (ASC) . IO-Link communication interface LEMAX IO is a new mini vacuum pump with communication IO-Link integrating technologies developed by COVAL for better productivity, efficiency and energy savings. It has a wide range of applications: packaging, robotics, plastics. For the first time LEMAX IO integrates technology known as ASC (Air Saving Control). It generates energy savings of between 60% and 97%, depending on the products to be handled. The ASC activates to limit energy consumption at two levels: • Integrated vacuum regulation: reduction of energy consumption and noise level. • The ASC analyses the application and adapts itself to the airtight or porous pieces in order to optimize operation and energy consumption. Advantages . Easy installation and operation thanks to the IO-Link communication interface. . Energy savings of 75 to 99% (depending on application) thanks to automatic ASC (Air Saving Control) operation. . "All-in-one" solution, no more peripherals to be added. . Unmatched compactness: Installation close to suction cups => short response times and energy savings. . No clogging, thanks to the through-type silencer. . Controlled or timed blow-off. IO-Link The IO-Link system provides efficient real-time communication between LEMAX IO vacuum pumps and any higher-level protocol (EtherNet/IP, PROFINET, EtherCAT, etc.) required to monitor the production line. It can be used to control pumps, configure settings, and get feedback to ensure maximum productivity.
