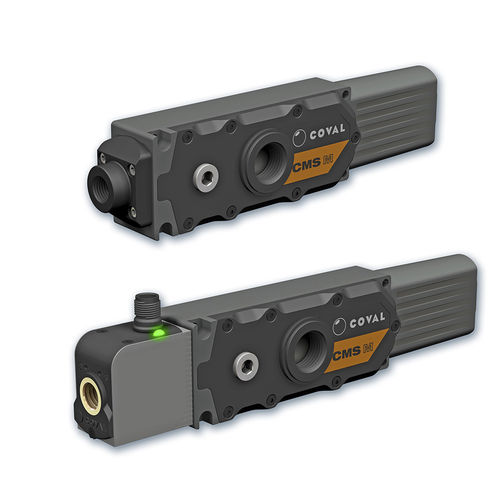

Venturi vacuum pump CMS Moil-freemulti-stagesuction
Add to favorites
Compare this product
Characteristics
- Technology
- Venturi
- Lubrication
- oil-free
- Number of stages
- multi-stage
- Applications
- for the chemical industry
- Other characteristics
- compact, small, low-noise level, high-performance, pneumatic
- Ultimate vacuum
800 mbar
(11.6 psi)- Flow rate
Min.: 300 l/min
(79.25 us gal/min)Max.: 550 l/min
(145.29 us gal/min)- Operating temperature
Min.: 0 °C
(32 °F)Max.: 50 °C
(122 °F)- Weight
330 g
(11.64 oz)
Description
The CMS M Series multi-stage mini vacuum pumps, with their robust and ultra-compact design, are suitable for applications requiring high suction rates such as gripping porous parts, emptying tanks, or random gripping when integrated into vacuum grippers.
The CMS M Series is available in 2 suction flow rates, with or without vacuum and blowoff control, and 2 exhaust configurations.
Main Specifications:
. 80% vacuum
. 2 powerful suction flow rates:
‐ CMSM90X15__ : 300 Nl/min (10.59 SCFM)
‐ CMSM90X30__ : 550 Nl/min (19.42 SCFM)
. With or without vacuum and blow-off control.
. Vacuum control: NC, NO.
. One M12 4-pin male connector.
. 2 exhaust configurations.
