Wastewater pump OPTIMA series
electricsubmersiblecentrifugal

wastewater pump
wastewater pump
wastewater pump
wastewater pump
Add to favorites
Compare this product


Characteristics

Fluid
for wastewater
Operation
electric
Priming
submersible
Technology
centrifugal
Mobility
stationary, mobile
Domain
industrial
Applications
irrigation, drain
Material
stainless steel
Voltage
230 V
Protection level
IP68
Other characteristics
mechanical, large, corrosion-resistant, vertical, seal
Flow

Max.: 9 m³/h
(317.832 ft³/h)

Min.: 1.2 m³/h
(42.3776 ft³/h)

Head

Max.: 7.6 m
(24'11" )

Min.: 1.5 m
(4'11" )

Power

0.25 kW
(0.34 hp)

Fluid temperature

Max.: 50 °C
(122 °F)

Min.: 0 °C
(32 °F)

Width

167 mm
(6.57 in)

Height

273 mm
(10.75 in)

Weight

4.2 kg, 4.4 kg, 4.6 kg
(9.26 lb, 9.7 lb, 10.14 lb)

Description

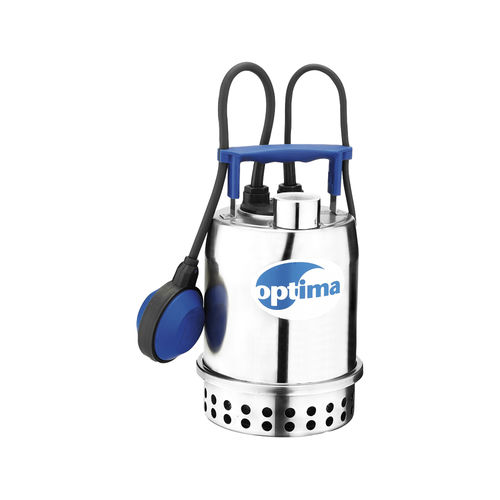

AISI 304 stainless steel submersible pump with mechanical seal in oil bath and oversized oil chamber. Possibility of fixed or mobile installation and suitable for domestic applications and large industrial drainage installations. AISI 304 stainless steel submersible pump with mechanical seal in oil bath and oversized oil chamber. These features make the pump reliable, durable and corrosion-resistant. The OPTIMA electric pump has a great versatility of installation (fixed or mobile) due to the possibility of choosing between the vertical magnetic float switch (of reduced size) or the float switch. These solutions also allow you to choose the best pump insertion option according to the space available. For further technical information see the Databook • Emptying of wells, cellars, garages or basements, tanks or reservoirs • Use for irrigating gardens and vegetable plots and for supplying water to classic garden fountains
