Pneumatic clamping brake FN
frictiondiscrelease spring

pneumatic clamping brake
pneumatic clamping brake
pneumatic clamping brake
Add to favorites
Compare this product


Characteristics

Type
friction, disc
Operation
release spring, pneumatic clamping
Other characteristics
low-inertia, custom, air-cooled, through-bore, emergency
Torque

Min.: 600 Nm
(442.5373 ft.lb)

Max.: 13,800 Nm
(10,178.3577 ft.lb)

Description

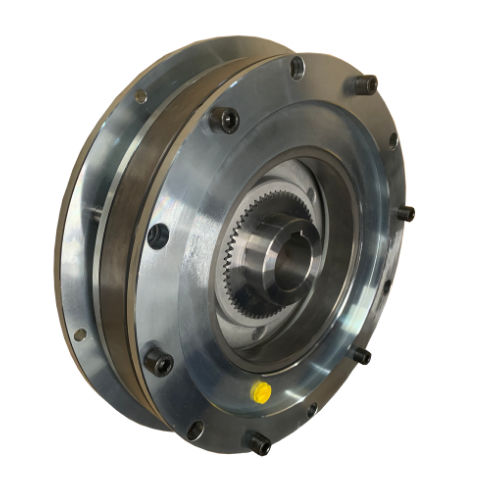

The FN Pneumatic Brake is a friction brake capable of stopping large loads. The braking force is proportional to the applied air pressure and the recoil is through springs in the absence of air pressure. The FN/M Pneumatic Brake is a spring-actuated safety brake, capable of stopping large loads. The brake is released with air pressure. Characteristics: Great pairs. Possibility of continuous friction. Small dimensions. The Pneumatic Brakes FN and FN / M can be used in machinery of different sectors such as, for example: Renewable energy Test benches Steel industry Cable industry
