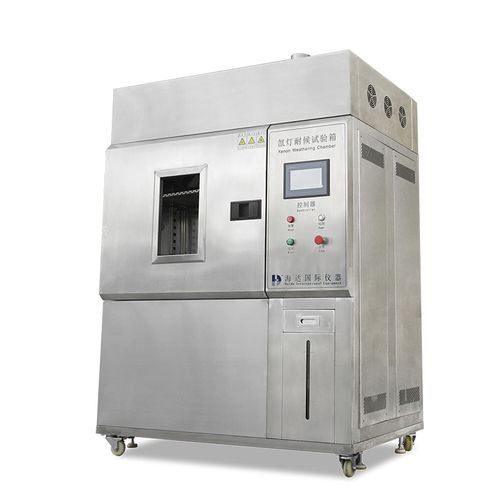

Aging test chamber / with xenon arc lamp
HD-711 HAIDA EQUIPMENT CO., LTD

Characteristics

  • Type:

    aging

  • Options and accessories:

    with xenon arc lamp

Description

Main Feature:

1, Ventilation system: Automatic controlled by temperature controller, and inner chamber cooled by refrigerating system
2, Back panel thermometer: adopt wired transmission technology, which highly improve the control accuracy.
3, Temperature sensor: PT100 platinum resistance temperature body.
4, Equip with intelligent temperature and humidity controller, with PID adjustment and rapid self-turning. It can set several parameters to do cyclic test, directly digital temperature display for easy reading.

Main Parameter:
Chamber Temperature 40±3℃
Temperature Uniformity ≤3℃
Blank panel temperature 65±3℃
Humidity Range 55%-90%
Irradiated intensity 0.35±0.02w/m²at 340nm (within±10%)
Xenon lamp power 6.KW water-cooled xenon lamp x 1pc
Control systemSiemens PLC controller, auto display irradiance



Test Standard:
GB12831-86 Vulcanized rubber artificial climate (xenon lamp) Aging Test Method
GB/T1644.2-1999Plastics laboratory light exposure test method
GB/T8427-89 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T8430-98 textile color fastness test, resistance to artificial light fastness xenon arc
GB/T1865-97 Paints, varnishes, artificial weather aging and artificial radiation exposure
GB/T16991-97 textile color fastness test,
GB/T5137.3-96 simulated climate test method of resistant to radiation, heat, humidity, burning
GB/T16259-96 color building materials, artificial climate accelerated aging test method.
