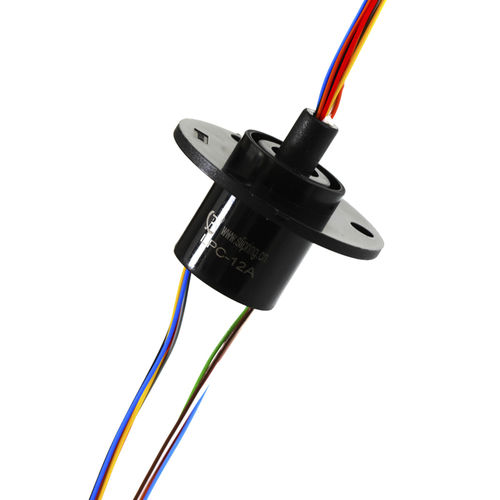

HD-SDI slip ring LPC-12Acapsulehigh-definition
Add to favorites
Compare this product
Characteristics
- Type
- HD-SDI
- Construction
- capsule
- Other characteristics
- high-definition
Description
Part Number: LPC-12A
12circuits
Current range: 12circuits*2A; Voltage of 240VAC;
Dielectric Strength: ≥500V@50Hz between circuits; Insulation of 100MΩ@500VDC
Dynamic Resistance Fluctuation Values: ≤35mΩ
Operating Speed:0~300rpm; Wire Size: AWG28# silver plated Teflon® UL;
Wire Length: stator (250mm), rotor(250mm); Contact: Precious metal;
Working Temperature: -20°C~+60°C; IP54
