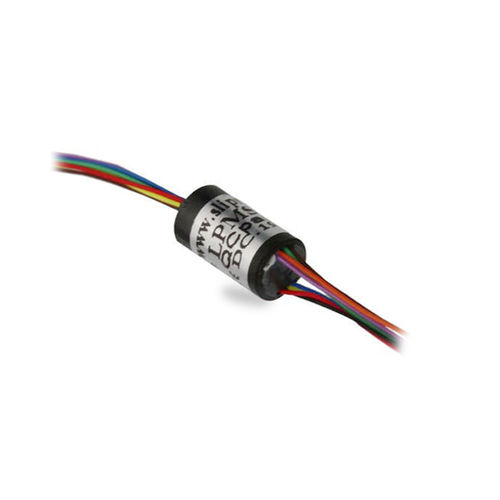

Miniature slip ring LPMS-08E

capsulefor rotary tablesfor radar antennas

This unit can be used in any electromechanical System that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify System design, eliminate possible damage while rotation. It's the key apparatus of various précision rotary worktable, electric test instrument, manufacture and process control instrument. The LPMS-08E super miniature slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. The LPMS-08E allows tremendous flexibility in dealing with System size restrictions. It is available in 4 and 8 circuit configurations. Features ♦ 8 circuits models ♦ 1 amp per circuit, 48VAC/DC ♦ Précision assembly to provicie exceptional rotational life ♦ Speed up to 300 rpm continuous ♦ Gold-Gold contacts ♦ Flexible, color-coded, silver-plated lead wires ♦ Superior handling of low level control signais ♦ Métal housing optional Advantage ♦ Low torque minimizes System torque budget ♦ Compact design to fit in the most demanding space. ♦ Compact package ♦ Low electrical noise ♦ Quick shipment per your urgent requirement ♦ 360°continuous rotation ♦ Addition of spécial components Application 1. Electrical test equipment 2. Manufacturing and process control equipment 3. Indexing tables. 4. CCTV pan / tilt caméra mounts 5. Exhibit / display equipment. 6. Mini-type wire-rolling machine 7. Closed-circuit control
