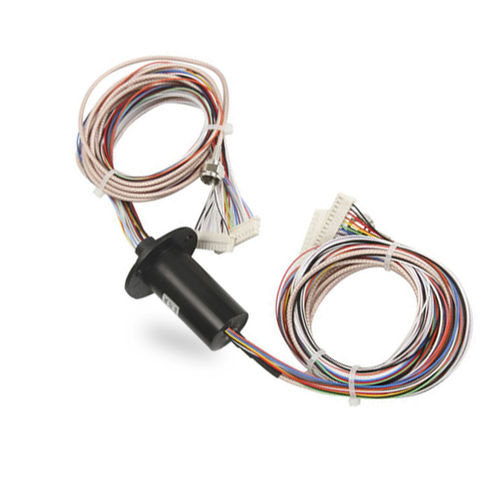

Electric slip ring LPC-1C2402

capsulehigh-speed

High frequency slip ring is a product specially developed to meet high-speed serial digital signal or analog signal transmission. This series of products support high-frequency signal transmission, and also support mixed transmission of high-frequency signal and 24V control signal, communication signal, power supply, fluid medium. The high-frequency signal adopts 50/75Ω characteristic impedance RF coaxial structure head. Feature Gold-gold contact on the contact material, which can meet the service life of 100 million revolutions 90-degree V-groove design can rotate 360 degree smoothly and unlimitedly, with low torque, low wear, and low electronic noise Anti-aging and high temperature resistance Specifications Electrical & Electronics - Mechanical Circuits - total 24circuits 24*2A - Rotating Speed - 0~300rpm Rating Voltage - 240 VAC/DC - Contact Material - Gold To Gold Dielectric Strength - 500VAC@50Hz(P) 300VAC@50Hz(S) - Housing Material - Engineering Plastics Insulation Resistance - ≥100MΩ@500VDC (P) ≥100MΩ@100VDC (S) - Wire Length - Stator: 250mm Rotor: 250mm Lead Wire Size - AWG28 # Environmental - Others Temperature - -20°C~+60°C - Life span - Customizable Humidity - ≤60%RH - Note: "P" stands for power, "S" stands for signal Protection grade - Customizable Coaxial Parameter Connect Model - BNC/SMA - Frequency range - 0-3GHz Specific Impedance - 50/75Ω - Housing Material - Brass Insertion Loss - <1.2dB - Contact Material - Precious Metal Insertion Loss-WOW - <0.1dB - Cable Size - RG316/RG179 VSWR - <1.6 - Cable Length - Stator: 250mm VSWR-WOW - <0.1 - Rotor: 250mm
