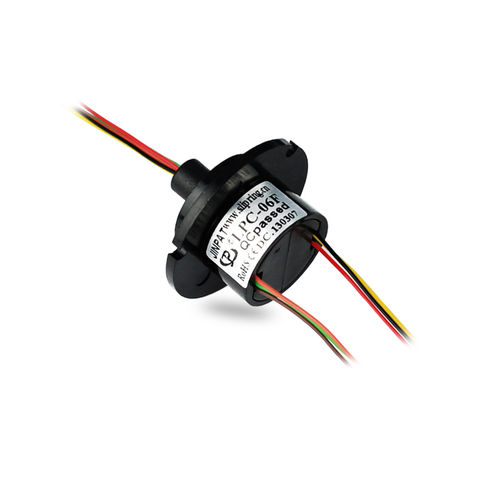

Capsule slip ring LPC-06F
for rotary tablesfor camerasplastic

capsule slip ring
capsule slip ring
capsule slip ring
capsule slip ring
Add to favorites
Compare this product


Characteristics

Construction
capsule
Applications
for rotary tables, for cameras
Material
plastic
Other characteristics
compact, with gold contacts, low-torque, high-speed, cost-effective
Voltage

240 V

Primary current

2 A

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 300 rpm
(1,885 rad.min-1)

Number of channels

6 unit

Description

Description This unit can be used in any electromechanical system that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. It can improve electromechanical capability, simplify System design, eliminate possible damage while rotation. It's a key apparatus of various précision rotary worktable, electric test instrument, manufacture and process control instrument. The LPC-06F capsule slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor for simplifying electrical connections. Using a 90° V-groove ring design for each ring, the LPC-06F provides smoother running, lower torque and lower electrical noise than compétitive slip rings. It is available in 1-6 circuit models. Features 6 circuit models 2 amp, 240 VAC /DC per circuit. Précision assembly to provide exceptional rotational life Speeds up to 300 rpm Compact size 19.7MM Length Gold-on-gold contacts Flexible, color-coded, silver-plated, stranded copper lead Superior handling of low level control signais Advantages ♦ - Low torque minimizes System torque budget ♦ - Compact design to fit in the most demanding space ♦ - Smooth running ♦ - Low electrical noise ♦ - Quick shipment per your urgent requirement ♦ - 360°continuous rotation ♦ - High bandwidth transfer capability ♦ - Rapid Shipment Spécifications Operating Speed - 0-300 rpm Number of Circuits - 6 Voltage - 240 VAC/DC Current Rating - 2 amps/per circuit Température Range - -20°Cto +60°C
