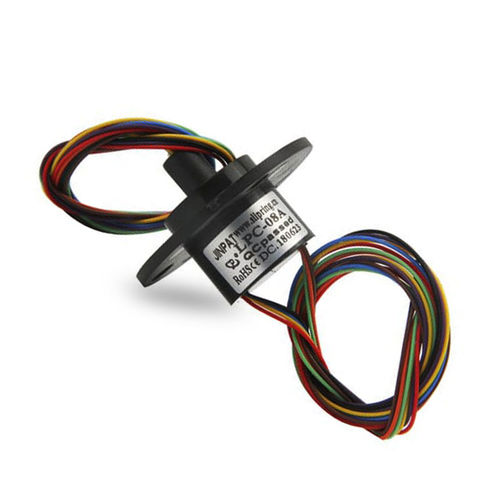

USB slip ring LPC-08A

HD-SDIHDMIcapsule

Description This unit can be used in any electromechanical System that requires unrestrained, continuous rotation while transferring power or data from a stationary to a rotating structure. It is also called a rotary electrical interface, commutator, collector, swivel or an electrical rotary joint. The LPC-08A capsule slip ring is a standard, off-the shelf unit that uses gold contacts at the rotary interface. Color-coded lead wires are used on both the stator and rotor to simplify electrical connections. Using a 90° V-groove ring design for each ring, the LPC-08A provides smoother running, lower torque and lower electrical noise than compétitive slip rings. It is available in 1-8 circuit models. Features ♦ - 8 circuits models ♦ - Reliable rotational connections for power, signal and data transmission ♦ - Also available with 5 and 10 amps power rings combined with 2 amps rings. ♦ - Précision bail bearings meet or exceed life requirements for most commercial applications Advantages ♦ - Low torque minimizes System torque budget ♦ - Compact design and Smooth running ♦ - Low electrical noise ♦ - Quick shipment ♦ - High bandwidth transfer capability Spécifications Operating Speed - 0-300 rpm Number of Circuits - 8 Voltage - 240 VAC/DC Current Rating - 2 amps per circuit Température Range - -20°C to +60°C Contact Material - Gold to Gold Lead Size - 28# silver plated copper Teflon® UL Lead Length - Standard 250 mm (9.843inch) Dielectric Strength - >500 VAC @50Hz, between each circuit Insulation Résistance - 100 MO @500 VDC Electrical Noise - <35mO
